WE-TVSP Power TVS Diode

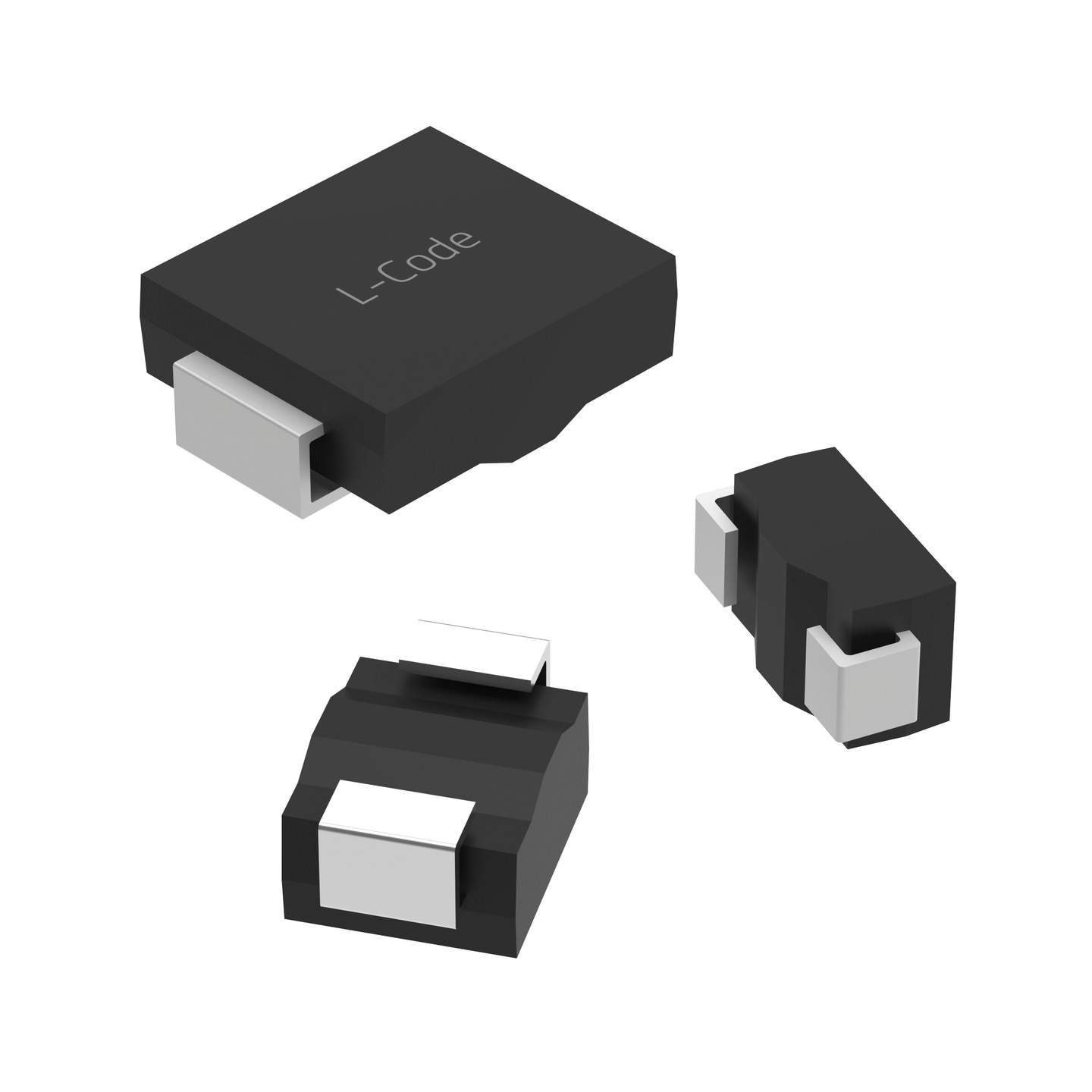

WE-TVSP Power TVS Diode. Glass passivated Juction. Fast response time.
SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Mount
DO-214AC 400W Unidirectional
 4.24 2.67 2.25 SMT
DO-214AC 400W Bidirectional
 4.24 2.67 2.25 SMT
DO-214AA 600W Unidirectional
 4.32 3.62 2.4 SMT
DO-214AA 600W Bidirectional
 4.32 3.62 2.4 SMT
DO-214AB 1500W Unidirectional
 6.86 5.91 2.5 SMT
DO-214AB 1500W Bidirectional
 6.86 5.91 2.5 SMT
DO-214AB 3000W Unidirectional
 6.86 5.91 2.5 SMT
DO-214AB 3000W Bidirectional
 6.86 5.91 2.5 SMT

LTSpice files

Characteristics

  • Low Profile Package
  • Glass passivated Juction
  • Excellent clamping capability
  • Fast response time
  • MSL Level 1, per J-STD-020
  • Classification of the plastic case: UL 94 V-0
  • Safety certification UL 497B, E478010

Identical design:
- DO-214AC = SMAJ
- DO-214AA = SMBJ
- DO-214AB = SMCJ/SMDJ

Applications

  • Ideal to protect the I/O Interfaces, Bus Voltage and other circuits of sensitive electronic equipment against voltage transients

Application Notes

Products

All
DO-214AC 400W Unidirectional
DO-214AC 400W Bidirectional
DO-214AA 600W Unidirectional
DO-214AA 600W Bidirectional
DO-214AB 1500W Unidirectional
DO-214AB 1500W Bidirectional
DO-214AB 3000W Unidirectional
DO-214AB 3000W Bidirectional
Reset all
Filter article data
Filter by
Delete all
 show  articles in 8 product lines
 articles in 8 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Downloads
Status
Technical Reference
VDC(V)
VBR(V)
IPeak(A)
PDiss(W)
VClamp max.(V)
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
824501500
SPECSMAJ5.0CA, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ5.0CA
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current43.5 A
Power Dissipation400 W
Clamping Voltage [max.]9.2 V
Design Kit
824599
–Check availability
824501600
SPECSMAJ6.0CA, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ6.0CA
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current38.8 A
Power Dissipation400 W
Clamping Voltage [max.]10.3 V
Design Kit
824599
–Check availability
824501650
SPECSMAJ6.5CA, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ6.5CA
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current35.7 A
Power Dissipation400 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824501700
SPECSMAJ7.0CA, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ7.0CA
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current33.3 A
Power Dissipation400 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824501750
SPECSMAJ7.5CA, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ7.5CA
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current31 A
Power Dissipation400 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824501800
SPECSMAJ8.0CA, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ8.0CA
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current29.4 A
Power Dissipation400 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824501850
SPECSMAJ8.5CA, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ8.5CA
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current27.8 A
Power Dissipation400 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824501900
SPECSMAJ9.0CA, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ9.0CA
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current26 A
Power Dissipation400 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824501101
SPECSMAJ10CA, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ10CA
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current23.5 A
Power Dissipation400 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824501111
SPECSMAJ11CA, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ11CA
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current22 A
Power Dissipation400 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824501121
SPECSMAJ12CA, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ12CA
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current20.1 A
Power Dissipation400 W
Clamping Voltage [max.]19.9 V
Design Kit
824599
–Check availability
824501131
SPECSMAJ13CA, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ13CA
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current18.6 A
Power Dissipation400 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824501141
SPECSMAJ14CA, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ14CA
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current17.2 A
Power Dissipation400 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824501261
SPECSMAJ26CA, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ26CA
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current9.5 A
Power Dissipation400 W
Clamping Voltage [max.]42.1 V
Design Kit
824599
–Check availability
824501281
SPECSMAJ28CA, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ28CA
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current8.8 A
Power Dissipation400 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824501201
SPECSMAJ20CA, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ20CA
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current12.3 A
Power Dissipation400 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824501221
SPECSMAJ22CA, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ22CA
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current11.3 A
Power Dissipation400 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824501241
SPECSMAJ24CA, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ24CA
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current10.3 A
Power Dissipation400 W
Clamping Voltage [max.]38.9 V
Design Kit
824599
–Check availability
824501361
SPECSMAJ36CA, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ36CA
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current6.9 A
Power Dissipation400 W
Clamping Voltage [max.]58.1 V
Design Kit
824599
–Check availability
824501301
SPECSMAJ30CA, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ30CA
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current8.3 A
Power Dissipation400 W
Clamping Voltage [max.]48.4 V
Design Kit
824599
–Check availability
824501331
SPECSMAJ33CA, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ33CA
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current7.5 A
Power Dissipation400 W
Clamping Voltage [max.]53.3 V
Design Kit
824599
–Check availability
824501401
SPECSMAJ40CA, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ40CA
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current6.2 A
Power Dissipation400 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824501431
SPECSMAJ43CA, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ43CA
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current5.8 A
Power Dissipation400 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824501451
SPECSMAJ45CA, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ45CA
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current5.5 A
Power Dissipation400 W
Clamping Voltage [max.]72.7 V
Design Kit –
–Check availability
824501511
SPECSMAJ51CA, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ51CA
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current4.9 A
Power Dissipation400 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824501541
SPECSMAJ54CA, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ54CA
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current4.6 A
Power Dissipation400 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824501581
SPECSMAJ58CA, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ58CA
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current4.3 A
Power Dissipation400 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824501601
SPECSMAJ60CA, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ60CA
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current4.1 A
Power Dissipation400 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824501641
SPECSMAJ64CA, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ64CA
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current3.9 A
Power Dissipation400 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824501701
SPECSMAJ70CA, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ70CA
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current3.5 A
Power Dissipation400 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824501751
SPECSMAJ75CA, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ75CA
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current3.3 A
Power Dissipation400 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824501781
SPECSMAJ78CA, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ78CA
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current3.2 A
Power Dissipation400 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824501851
SPECSMAJ85CA, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ85CA
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current2.9 A
Power Dissipation400 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824501901
SPECSMAJ90CA, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ90CA
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current2.7 A
Power Dissipation400 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824501102
SPECSMAJ100CA, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ100CA
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current2.5 A
Power Dissipation400 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824501202
SPECSMAJ200CA, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ200CA
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current1.2 A
Power Dissipation400 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824501222
SPECSMAJ220CA, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ220CA
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current1.1 A
Power Dissipation400 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824501442
SPECSMAJ440CA, 440 V, 517.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ440CA
DC Operating Voltage440 V
(Reverse) Breakdown Voltage517.5 V
(Reverse) Peak Pulse Current0.6 A
Power Dissipation400 W
Clamping Voltage [max.]713 V
Design Kit –
–Check availability
824500500
SPECSMAJ5.0A, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ5.0A
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current43.5 A
Power Dissipation400 W
Clamping Voltage [max.]9.2 V
Design Kit
824599
–Check availability
824500600
SPECSMAJ6.0A, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ6.0A
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current38.8 A
Power Dissipation400 W
Clamping Voltage [max.]10.3 V
Design Kit
824599
–Check availability
824500650
SPECSMAJ6.5A, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ6.5A
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current35.7 A
Power Dissipation400 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824500700
SPECSMAJ7.0A, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ7.0A
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current33.3 A
Power Dissipation400 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824500750
SPECSMAJ7.5A, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ7.5A
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current31 A
Power Dissipation400 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824500800
SPECSMAJ8.0A, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ8.0A
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current29.4 A
Power Dissipation400 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824500850
SPECSMAJ8.5A, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ8.5A
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current27.8 A
Power Dissipation400 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824500900
SPECSMAJ9.0A, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ9.0A
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current26 A
Power Dissipation400 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824500101
SPECSMAJ10A, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ10A
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current23.5 A
Power Dissipation400 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824500111
SPECSMAJ11A, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ11A
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current22 A
Power Dissipation400 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824500121
SPECSMAJ12A, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ12A
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current20.1 A
Power Dissipation400 W
Clamping Voltage [max.]19.9 V
Design Kit
824599
–Check availability
824500131
SPECSMAJ13A, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ13A
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current18.6 A
Power Dissipation400 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824500141
SPECSMAJ14A, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ14A
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current17.2 A
Power Dissipation400 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824500261
SPECSMAJ26A, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ26A
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current9.5 A
Power Dissipation400 W
Clamping Voltage [max.]42.1 V
Design Kit
824599
–Check availability
824500281
SPECSMAJ28A, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ28A
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current8.8 A
Power Dissipation400 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824500201
SPECSMAJ20A, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ20A
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current12.3 A
Power Dissipation400 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824500221
SPECSMAJ22A, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ22A
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current11.3 A
Power Dissipation400 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824500241
SPECSMAJ24A, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ24A
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current10.3 A
Power Dissipation400 W
Clamping Voltage [max.]38.9 V
Design Kit
824599
–Check availability
824500361
SPECSMAJ36A, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ36A
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current6.9 A
Power Dissipation400 W
Clamping Voltage [max.]58.1 V
Design Kit
824599
–Check availability
824500301
SPECSMAJ30A, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ30A
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current8.3 A
Power Dissipation400 W
Clamping Voltage [max.]48.4 V
Design Kit
824599
–Check availability
824500331
SPECSMAJ33A, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ33A
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current7.5 A
Power Dissipation400 W
Clamping Voltage [max.]53.3 V
Design Kit
824599
–Check availability
824500401
SPECSMAJ40A, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ40A
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current6.2 A
Power Dissipation400 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824500431
SPECSMAJ43A, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ43A
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current5.8 A
Power Dissipation400 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824500451
SPECSMAJ45A, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ45A
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current5.5 A
Power Dissipation400 W
Clamping Voltage [max.]72.7 V
Design Kit –
–Check availability
824500511
SPECSMAJ51A, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ51A
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current4.9 A
Power Dissipation400 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824500541
SPECSMAJ54A, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ54A
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current4.6 A
Power Dissipation400 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824500581
SPECSMAJ58A, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ58A
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current4.3 A
Power Dissipation400 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824500601
SPECSMAJ60A, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ60A
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current4.1 A
Power Dissipation400 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824500641
SPECSMAJ64A, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ64A
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current3.9 A
Power Dissipation400 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824500701
SPECSMAJ70A, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ70A
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current3.5 A
Power Dissipation400 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824500751
SPECSMAJ75A, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ75A
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current3.3 A
Power Dissipation400 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824500781
SPECSMAJ78A, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ78A
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current3.2 A
Power Dissipation400 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824500851
SPECSMAJ85A, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ85A
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current2.9 A
Power Dissipation400 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824500901
SPECSMAJ90A, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ90A
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current2.7 A
Power Dissipation400 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824500102
SPECSMAJ100A, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ100A
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current2.5 A
Power Dissipation400 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824500162
SPECSMAJ160A, 160 V, 187.5 V
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ160A
DC Operating Voltage160 V
(Reverse) Breakdown Voltage187.5 V
(Reverse) Peak Pulse Current1.5 A
Power Dissipation400 W
Clamping Voltage [max.]259 V
Design Kit –
–Check availability
824500202
SPECSMAJ200A, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ200A
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current1.2 A
Power Dissipation400 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824500222
SPECSMAJ220A, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ220A
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current1.1 A
Power Dissipation400 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824500442
SPECSMAJ440A, 440 V, 517.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ440A
DC Operating Voltage440 V
(Reverse) Breakdown Voltage517.5 V
(Reverse) Peak Pulse Current0.6 A
Power Dissipation400 W
Clamping Voltage [max.]713 V
Design Kit –
–Check availability
824500151
SPECSMAJ15A, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ15A
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current16.4 A
Power Dissipation400 W
Clamping Voltage [max.]24.2 V
Design Kit –
–Check availability
824500161
SPECSMAJ16A, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ16A
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current15.4 A
Power Dissipation400 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824500171
SPECSMAJ17A, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ17A
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current14.5 A
Power Dissipation400 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824500181
SPECSMAJ18A, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ18A
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current13.7 A
Power Dissipation400 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824500481
SPECSMAJ48A, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ48A
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current5.2 A
Power Dissipation400 W
Clamping Voltage [max.]77.4 V
Design Kit
824599
–Check availability
824501151
SPECSMAJ15CA, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ15CA
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current16.4 A
Power Dissipation400 W
Clamping Voltage [max.]24.4 V
Design Kit –
–Check availability
824501161
SPECSMAJ16CA, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ16CA
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current15.4 A
Power Dissipation400 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824501171
SPECSMAJ17CA, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ17CA
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current14.5 A
Power Dissipation400 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824501181
SPECSMAJ18CA, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ18CA
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current13.7 A
Power Dissipation400 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824501481
SPECSMAJ48CA, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMAJ48CA
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current5.2 A
Power Dissipation400 W
Clamping Voltage [max.]77.4 V
Design Kit
824599
–Check availability
824521500
SPECSMBJ5.0CA, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ5.0CA
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current65.3 A
Power Dissipation600 W
Clamping Voltage [max.]9.2 V
Design Kit
824599
–Check availability
824521600
SPECSMBJ6.0CA, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ6.0CA
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current58.3 A
Power Dissipation600 W
Clamping Voltage [max.]10.3 V
Design Kit
824599
–Check availability
824521650
SPECSMBJ6.5CA, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ6.5CA
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current53.6 A
Power Dissipation600 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824521700
SPECSMBJ7.0CA, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ7.0CA
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current50 A
Power Dissipation600 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824521750
SPECSMBJ7.5CA, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ7.5CA
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current46.6 A
Power Dissipation600 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824521800
SPECSMBJ8.0CA, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ8.0CA
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current44.2 A
Power Dissipation600 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824521850
SPECSMBJ8.5CA, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ8.5CA
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current41.7 A
Power Dissipation600 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824521900
SPECSMBJ9.0CA, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ9.0CA
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current39 A
Power Dissipation600 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824521101
SPECSMBJ10CA, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ10CA
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current35.3 A
Power Dissipation600 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824521111
SPECSMBJ11CA, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ11CA
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current33 A
Power Dissipation600 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824521121
SPECSMBJ12CA, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ12CA
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current30.2 A
Power Dissipation600 W
Clamping Voltage [max.]19.9 V
Design Kit
824599
–Check availability
824521131
SPECSMBJ13CA, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ13CA
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current28 A
Power Dissipation600 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824521141
SPECSMBJ14CA, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ14CA
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current25.9 A
Power Dissipation600 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824521261
SPECSMBJ26CA, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ26CA
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current14.3 A
Power Dissipation600 W
Clamping Voltage [max.]42.1 V
Design Kit
824599
–Check availability
824521281
SPECSMBJ28CA, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ28CA
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current13.3 A
Power Dissipation600 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824521201
SPECSMBJ20CA, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ20CA
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current18.6 A
Power Dissipation600 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824521221
SPECSMBJ22CA, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ22CA
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current16.9 A
Power Dissipation600 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824521241
SPECSMBJ24CA, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ24CA
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current15.5 A
Power Dissipation600 W
Clamping Voltage [max.]38.9 V
Design Kit
824599
–Check availability
824521301
SPECSMBJ30CA, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ30CA
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current12.4 A
Power Dissipation600 W
Clamping Voltage [max.]48.4 V
Design Kit
824599
–Check availability
824521331
SPECSMBJ33CA, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ33CA
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current11.3 A
Power Dissipation600 W
Clamping Voltage [max.]53.3 V
Design Kit
824599
–Check availability
824521361
SPECSMBJ36CA, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ36CA
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current10.4 A
Power Dissipation600 W
Clamping Voltage [max.]58.1 V
Design Kit
824599
–Check availability
824521401
SPECSMBJ40CA, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ40CA
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current9.3 A
Power Dissipation600 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824521431
SPECSMBJ43CA, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ43CA
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current8.7 A
Power Dissipation600 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824521451
SPECSMBJ45CA, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ45CA
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current8.3 A
Power Dissipation600 W
Clamping Voltage [max.]72.7 V
Design Kit –
–Check availability
824521581
SPECSMBJ58CA, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ58CA
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current6.5 A
Power Dissipation600 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824521511
SPECSMBJ51CA, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ51CA
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current7.3 A
Power Dissipation600 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824521541
SPECSMBJ54CA, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ54CA
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current6.9 A
Power Dissipation600 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824521601
SPECSMBJ60CA, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ60CA
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current6.2 A
Power Dissipation600 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824521641
SPECSMBJ64CA, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ64CA
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current5.9 A
Power Dissipation600 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824521701
SPECSMBJ70CA, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ70CA
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current5.3 A
Power Dissipation600 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824521751
SPECSMBJ75CA, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ75CA
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current5 A
Power Dissipation600 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824521781
SPECSMBJ78CA, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ78CA
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current4.8 A
Power Dissipation600 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824521851
SPECSMBJ85CA, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ85CA
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current4.4 A
Power Dissipation600 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824521901
SPECSMBJ90CA, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ90CA
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current4.1 A
Power Dissipation600 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824521102
SPECSMBJ100CA, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ100CA
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current3.7 A
Power Dissipation600 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824521162
SPECSMBJ160CA, 160 V, 187.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ160CA
DC Operating Voltage160 V
(Reverse) Breakdown Voltage187.5 V
(Reverse) Peak Pulse Current2.3 A
Power Dissipation600 W
Clamping Voltage [max.]259 V
Design Kit –
–Check availability
824521202
SPECSMBJ200CA, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ200CA
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current1.9 A
Power Dissipation600 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824521222
SPECSMBJ220CA, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ220CA
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current1.7 A
Power Dissipation600 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824521302
SPECSMBJ300CA, 300 V, 353 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ300CA
DC Operating Voltage300 V
(Reverse) Breakdown Voltage353 V
(Reverse) Peak Pulse Current1.3 A
Power Dissipation600 W
Clamping Voltage [max.]486 V
Design Kit –
–Check availability
824521352
SPECSMBJ350CA, 350 V, 411.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ350CA
DC Operating Voltage350 V
(Reverse) Breakdown Voltage411.5 V
(Reverse) Peak Pulse Current1.1 A
Power Dissipation600 W
Clamping Voltage [max.]567 V
Design Kit –
–Check availability
824521402
SPECSMBJ400CA, 400 V, 470.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ400CA
DC Operating Voltage400 V
(Reverse) Breakdown Voltage470.5 V
(Reverse) Peak Pulse Current0.9 A
Power Dissipation600 W
Clamping Voltage [max.]648 V
Design Kit –
–Check availability
824521442
SPECSMBJ440CA, 440 V, 517.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ440CA
DC Operating Voltage440 V
(Reverse) Breakdown Voltage517.5 V
(Reverse) Peak Pulse Current0.9 A
Power Dissipation600 W
Clamping Voltage [max.]713 V
Design Kit –
–Check availability
824520500
SPECSMBJ5.0A, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ5.0A
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current65.3 A
Power Dissipation600 W
Clamping Voltage [max.]9.2 V
Design Kit
824599
–Check availability
824520600
SPECSMBJ6.0A, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ6.0A
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current58.3 A
Power Dissipation600 W
Clamping Voltage [max.]10.3 V
Design Kit
824599
–Check availability
824520650
SPECSMBJ6.5A, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ6.5A
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current53.6 A
Power Dissipation600 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824520700
SPECSMBJ7.0A, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ7.0A
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current50 A
Power Dissipation600 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824520750
SPECSMBJ7.5A, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ7.5A
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current46.6 A
Power Dissipation600 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824520800
SPECSMBJ8.0A, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ8.0A
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current44.2 A
Power Dissipation600 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824520850
SPECSMBJ8.5A, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ8.5A
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current41.7 A
Power Dissipation600 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824520900
SPECSMBJ9.0A, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ9.0A
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current39 A
Power Dissipation600 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824520101
SPECSMBJ10A, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ10A
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current35.3 A
Power Dissipation600 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824520111
SPECSMBJ11A, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ11A
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current33 A
Power Dissipation600 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824520121
SPECSMBJ12A, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ12A
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current30.2 A
Power Dissipation600 W
Clamping Voltage [max.]19.9 V
Design Kit
824599
–Check availability
824520131
SPECSMBJ13A, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ13A
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current28 A
Power Dissipation600 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824520141
SPECSMBJ14A, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ14A
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current25.9 A
Power Dissipation600 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824520261
SPECSMBJ26A, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ26A
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current14.3 A
Power Dissipation600 W
Clamping Voltage [max.]42.1 V
Design Kit
824599
–Check availability
824520281
SPECSMBJ28A, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ28A
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current13.3 A
Power Dissipation600 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824520201
SPECSMBJ20A, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ20A
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current18.6 A
Power Dissipation600 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824520221
SPECSMBJ22A, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ22A
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current16.9 A
Power Dissipation600 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824520241
SPECSMBJ24A, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ24A
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current15.5 A
Power Dissipation600 W
Clamping Voltage [max.]38.9 V
Design Kit
824599
–Check availability
824520301
SPECSMBJ30A, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ30A
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current12.4 A
Power Dissipation600 W
Clamping Voltage [max.]48.4 V
Design Kit
824599
–Check availability
824520331
SPECSMBJ33A, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ33A
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current11.3 A
Power Dissipation600 W
Clamping Voltage [max.]53.3 V
Design Kit
824599
–Check availability
824520361
SPECSMBJ36A, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ36A
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current10.4 A
Power Dissipation600 W
Clamping Voltage [max.]58.1 V
Design Kit
824599
–Check availability
824520401
SPECSMBJ40A, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ40A
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current9.3 A
Power Dissipation600 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824520431
SPECSMBJ43A, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ43A
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current8.7 A
Power Dissipation600 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824520451
SPECSMBJ45A, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ45A
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current8.3 A
Power Dissipation600 W
Clamping Voltage [max.]72.7 V
Design Kit –
–Check availability
824520511
SPECSMBJ51A, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ51A
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current7.3 A
Power Dissipation600 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824520541
SPECSMBJ54A, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ54A
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current6.9 A
Power Dissipation600 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824520581
SPECSMBJ58A, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ58A
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current6.5 A
Power Dissipation600 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824520601
SPECSMBJ60A, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ60A
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current6.2 A
Power Dissipation600 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824520641
SPECSMBJ64A, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ64A
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current5.9 A
Power Dissipation600 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824520701
SPECSMBJ70A, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ70A
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current5.3 A
Power Dissipation600 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824520751
SPECSMBJ75A, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ75A
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current5 A
Power Dissipation600 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824520781
SPECSMBJ78A, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ78A
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current4.8 A
Power Dissipation600 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824520851
SPECSMBJ85A, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ85A
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current4.4 A
Power Dissipation600 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824520901
SPECSMBJ90A, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ90A
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current4.1 A
Power Dissipation600 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824520102
SPECSMBJ100A, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ100A
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current3.7 A
Power Dissipation600 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824520162
SPECSMBJ160A, 160 V, 187.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ160A
DC Operating Voltage160 V
(Reverse) Breakdown Voltage187.5 V
(Reverse) Peak Pulse Current2.3 A
Power Dissipation600 W
Clamping Voltage [max.]259 V
Design Kit –
–Check availability
824520202
SPECSMBJ200A, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ200A
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current1.9 A
Power Dissipation600 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824520222
SPECSMBJ220A, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ220A
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current1.7 A
Power Dissipation600 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824520302
SPECSMBJ300A, 300 V, 353 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ300A
DC Operating Voltage300 V
(Reverse) Breakdown Voltage353 V
(Reverse) Peak Pulse Current1.3 A
Power Dissipation600 W
Clamping Voltage [max.]486 V
Design Kit –
–Check availability
824520352
SPECSMBJ350A, 350 V, 411.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ350A
DC Operating Voltage350 V
(Reverse) Breakdown Voltage411.5 V
(Reverse) Peak Pulse Current1.1 A
Power Dissipation600 W
Clamping Voltage [max.]567 V
Design Kit –
–Check availability
824520402
SPECSMBJ400A, 400 V, 470.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ400A
DC Operating Voltage400 V
(Reverse) Breakdown Voltage470.5 V
(Reverse) Peak Pulse Current0.9 A
Power Dissipation600 W
Clamping Voltage [max.]648 V
Design Kit –
–Check availability
824520442
SPECSMBJ440A, 440 V, 517.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ440A
DC Operating Voltage440 V
(Reverse) Breakdown Voltage517.5 V
(Reverse) Peak Pulse Current0.9 A
Power Dissipation600 W
Clamping Voltage [max.]713 V
Design Kit –
–Check availability
824520151
SPECSMBJ15A, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ15A
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current24.6 A
Power Dissipation600 W
Clamping Voltage [max.]24.4 V
Design Kit –
–Check availability
824520161
SPECSMBJ16A, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ16A
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current23.1 A
Power Dissipation600 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824520171
SPECSMBJ17A, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ17A
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current21.8 A
Power Dissipation600 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824520181
SPECSMBJ18A, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ18A
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current20.6 A
Power Dissipation600 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824520481
SPECSMBJ48A, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ48A
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current7.8 A
Power Dissipation600 W
Clamping Voltage [max.]77.4 V
Design Kit
824599
–Check availability
824521151
SPECSMBJ15CA, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ15CA
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current24.6 A
Power Dissipation600 W
Clamping Voltage [max.]24.4 V
Design Kit –
–Check availability
824521161
SPECSMBJ16CA, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ16CA
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current23.1 A
Power Dissipation600 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824521171
SPECSMBJ17CA, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ17CA
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current21.8 A
Power Dissipation600 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824521181
SPECSMBJ18CA, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ18CA
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current20.6 A
Power Dissipation600 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824521481
SPECSMBJ48CA, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMBJ48CA
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current7.8 A
Power Dissipation600 W
Clamping Voltage [max.]77.4 V
Design Kit
824599
–Check availability
824541500
SPECSMCJ5.0CA, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ5.0CA
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current163 A
Power Dissipation1500 W
Clamping Voltage [max.]9.2 V
Design Kit
824598
–Check availability
824541600
SPECSMCJ6.0CA, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ6.0CA
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current145.7 A
Power Dissipation1500 W
Clamping Voltage [max.]10.3 V
Design Kit
824598
–Check availability
824541650
SPECSMCJ6.5CA, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ6.5CA
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current134 A
Power Dissipation1500 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824541700
SPECSMCJ7.0CA, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ7.0CA
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current125 A
Power Dissipation1500 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824541750
SPECSMCJ7.5CA, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ7.5CA
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current116.3 A
Power Dissipation1500 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824541800
SPECSMCJ8.0CA, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ8.0CA
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current110.3 A
Power Dissipation1500 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824541850
SPECSMCJ8.5CA, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ8.5CA
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current104.2 A
Power Dissipation1500 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824541900
SPECSMCJ9.0CA, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ9.0CA
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current97.4 A
Power Dissipation1500 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824541101
SPECSMCJ10CA, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ10CA
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current88.3 A
Power Dissipation1500 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824541111
SPECSMCJ11CA, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ11CA
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current82.5 A
Power Dissipation1500 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824541121
SPECSMCJ12CA, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ12CA
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current75.4 A
Power Dissipation1500 W
Clamping Voltage [max.]19.9 V
Design Kit
824598
–Check availability
824541131
SPECSMCJ13CA, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ13CA
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current69.8 A
Power Dissipation1500 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824541141
SPECSMCJ14CA, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ14CA
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current64.7 A
Power Dissipation1500 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824541261
SPECSMCJ26CA, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ26CA
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current35.7 A
Power Dissipation1500 W
Clamping Voltage [max.]42.1 V
Design Kit
824598
–Check availability
824541281
SPECSMCJ28CA, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ28CA
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current33.1 A
Power Dissipation1500 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824541201
SPECSMCJ20CA, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ20CA
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current46.3 A
Power Dissipation1500 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824541221
SPECSMCJ22CA, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ22CA
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current42.3 A
Power Dissipation1500 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824541241
SPECSMCJ24CA, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ24CA
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current38.6 A
Power Dissipation1500 W
Clamping Voltage [max.]38.9 V
Design Kit
824598
–Check availability
824541361
SPECSMCJ36CA, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ36CA
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current25.9 A
Power Dissipation1500 W
Clamping Voltage [max.]58.1 V
Design Kit
824598
–Check availability
824541301
SPECSMCJ30CA, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ30CA
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current31 A
Power Dissipation1500 W
Clamping Voltage [max.]48.4 V
Design Kit
824598
–Check availability
824541331
SPECSMCJ33CA, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ33CA
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current28.2 A
Power Dissipation1500 W
Clamping Voltage [max.]53.3 V
Design Kit
824598
–Check availability
824541401
SPECSMCJ40CA, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ40CA
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current23.3 A
Power Dissipation1500 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824541431
SPECSMCJ43CA, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ43CA
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current21.7 A
Power Dissipation1500 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824541451
SPECSMCJ45CA, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ45CA
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current20.6 A
Power Dissipation1500 W
Clamping Voltage [max.]72.7 V
Design Kit –
–Check availability
824541581
SPECSMCJ58CA, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ58CA
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current16.1 A
Power Dissipation1500 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824541511
SPECSMCJ51CA, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ51CA
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current18.2 A
Power Dissipation1500 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824541541
SPECSMCJ54CA, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ54CA
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current17.3 A
Power Dissipation1500 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824541601
SPECSMCJ60CA, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ60CA
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current15.5 A
Power Dissipation1500 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824541641
SPECSMCJ64CA, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ64CA
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current14.6 A
Power Dissipation1500 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824541701
SPECSMCJ70CA, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ70CA
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current13.3 A
Power Dissipation1500 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824541751
SPECSMCJ75CA, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ75CA
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current12.4 A
Power Dissipation1500 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824541781
SPECSMCJ78CA, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ78CA
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current11.9 A
Power Dissipation1500 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824541851
SPECSMCJ85CA, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ85CA
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current11 A
Power Dissipation1500 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824541901
SPECSMCJ90CA, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ90CA
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current10.3 A
Power Dissipation1500 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824541102
SPECSMCJ100CA, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ100CA
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current9.3 A
Power Dissipation1500 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824541162
SPECSMCJ160CA, 160 V, 187.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ160CA
DC Operating Voltage160 V
(Reverse) Breakdown Voltage187.5 V
(Reverse) Peak Pulse Current5.8 A
Power Dissipation1500 W
Clamping Voltage [max.]259 V
Design Kit –
–Check availability
824541202
SPECSMCJ200CA, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ200CA
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current4.6 A
Power Dissipation1500 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824541222
SPECSMCJ220CA, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ220CA
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current4.2 A
Power Dissipation1500 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824541252
SPECSMCJ250CA, 250 V, 294 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ250CA
DC Operating Voltage250 V
(Reverse) Breakdown Voltage294 V
(Reverse) Peak Pulse Current3.7 A
Power Dissipation1500 W
Clamping Voltage [max.]405 V
Design Kit –
–Check availability
824541302
SPECSMCJ300CA, 300 V, 353 V
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ300CA
DC Operating Voltage300 V
(Reverse) Breakdown Voltage353 V
(Reverse) Peak Pulse Current3.1 A
Power Dissipation1500 W
Clamping Voltage [max.]486 V
Design Kit –
–Check availability
824541352
SPECSMCJ350CA, 350 V, 411.5 V
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ350CA
DC Operating Voltage350 V
(Reverse) Breakdown Voltage411.5 V
(Reverse) Peak Pulse Current2.6 A
Power Dissipation1500 W
Clamping Voltage [max.]567 V
Design Kit –
–Check availability
824541402
SPECSMCJ400CA, 400 V, 470.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ400CA
DC Operating Voltage400 V
(Reverse) Breakdown Voltage470.5 V
(Reverse) Peak Pulse Current2.3 A
Power Dissipation1500 W
Clamping Voltage [max.]648 V
Design Kit –
–Check availability
824541442
SPECSMCJ440CA, 440 V, 517.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ440CA
DC Operating Voltage440 V
(Reverse) Breakdown Voltage517.5 V
(Reverse) Peak Pulse Current2.1 A
Power Dissipation1500 W
Clamping Voltage [max.]713 V
Design Kit –
–Check availability
824540500
SPECSMCJ5.0A, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ5.0A
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current163 A
Power Dissipation1500 W
Clamping Voltage [max.]9.2 V
Design Kit
824598
–Check availability
824540600
SPECSMCJ6.0A, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ6.0A
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current145.7 A
Power Dissipation1500 W
Clamping Voltage [max.]10.3 V
Design Kit
824598
–Check availability
824540650
SPECSMCJ6.5A, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ6.5A
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current134 A
Power Dissipation1500 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824540700
SPECSMCJ7.0A, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ7.0A
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current125 A
Power Dissipation1500 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824540750
SPECSMCJ7.5A, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ7.5A
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current116.3 A
Power Dissipation1500 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824540800
SPECSMCJ8.0A, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ8.0A
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current110.3 A
Power Dissipation1500 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824540850
SPECSMCJ8.5A, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ8.5A
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current104.2 A
Power Dissipation1500 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824540900
SPECSMCJ9.0A, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ9.0A
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current97.4 A
Power Dissipation1500 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824540101
SPECSMCJ10A, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ10A
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current88.3 A
Power Dissipation1500 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824540111
SPECSMCJ11A, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ11A
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current82.5 A
Power Dissipation1500 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824540121
SPECSMCJ12A, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ12A
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current75.4 A
Power Dissipation1500 W
Clamping Voltage [max.]19.9 V
Design Kit
824598
–Check availability
824540131
SPECSMCJ13A, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ13A
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current69.8 A
Power Dissipation1500 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824540141
SPECSMCJ14A, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ14A
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current64.7 A
Power Dissipation1500 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824540261
SPECSMCJ26A, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ26A
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current35.7 A
Power Dissipation1500 W
Clamping Voltage [max.]42.1 V
Design Kit
824598
–Check availability
824540281
SPECSMCJ28A, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ28A
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current33.1 A
Power Dissipation1500 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824540201
SPECSMCJ20A, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ20A
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current46.3 A
Power Dissipation1500 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824540221
SPECSMCJ22A, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ22A
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current42.3 A
Power Dissipation1500 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824540241
SPECSMCJ24A, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ24A
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current38.6 A
Power Dissipation1500 W
Clamping Voltage [max.]38.9 V
Design Kit
824598
–Check availability
824540301
SPECSMCJ30A, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ30A
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current31 A
Power Dissipation1500 W
Clamping Voltage [max.]48.4 V
Design Kit
824598
–Check availability
824540331
SPECSMCJ33A, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ33A
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current28.2 A
Power Dissipation1500 W
Clamping Voltage [max.]53.3 V
Design Kit
824598
–Check availability
824540361
SPECSMCJ36A, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ36A
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current25.9 A
Power Dissipation1500 W
Clamping Voltage [max.]58.1 V
Design Kit
824598
–Check availability
824540401
SPECSMCJ40A, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ40A
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current23.3 A
Power Dissipation1500 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824540431
SPECSMCJ43A, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ43A
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current21.7 A
Power Dissipation1500 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824540451
SPECSMCJ45A, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ45A
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current20.6 A
Power Dissipation1500 W
Clamping Voltage [max.]72.7 V
Design Kit –
–Check availability
824540581
SPECSMCJ58A, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ58A
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current16.1 A
Power Dissipation1500 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824540511
SPECSMCJ51A, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ51A
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current18.2 A
Power Dissipation1500 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824540541
SPECSMCJ54A, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ54A
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current17.3 A
Power Dissipation1500 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824540601
SPECSMCJ60A, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ60A
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current15.5 A
Power Dissipation1500 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824540641
SPECSMCJ64A, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ64A
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current14.6 A
Power Dissipation1500 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824540701
SPECSMCJ70A, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ70A
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current13.3 A
Power Dissipation1500 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824540751
SPECSMCJ75A, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ75A
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current12.4 A
Power Dissipation1500 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824540781
SPECSMCJ78A, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ78A
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current11.9 A
Power Dissipation1500 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824540851
SPECSMCJ85A, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ85A
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current11 A
Power Dissipation1500 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824540901
SPECSMCJ90A, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ90A
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current10.3 A
Power Dissipation1500 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824540102
SPECSMCJ100A, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ100A
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current9.3 A
Power Dissipation1500 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824540162
SPECSMCJ160A, 160 V, 187.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ160A
DC Operating Voltage160 V
(Reverse) Breakdown Voltage187.5 V
(Reverse) Peak Pulse Current5.8 A
Power Dissipation1500 W
Clamping Voltage [max.]259 V
Design Kit –
–Check availability
824540202
SPECSMCJ200A, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ200A
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current4.6 A
Power Dissipation1500 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824540222
SPECSMCJ220A, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ220A
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current4.2 A
Power Dissipation1500 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824540252
SPECSMCJ250A, 250 V, 294 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ250A
DC Operating Voltage250 V
(Reverse) Breakdown Voltage294 V
(Reverse) Peak Pulse Current3.7 A
Power Dissipation1500 W
Clamping Voltage [max.]405 V
Design Kit –
–Check availability
824540302
SPECSMCJ300A, 300 V, 353 V
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ300A
DC Operating Voltage300 V
(Reverse) Breakdown Voltage353 V
(Reverse) Peak Pulse Current3.1 A
Power Dissipation1500 W
Clamping Voltage [max.]486 V
Design Kit –
–Check availability
824540352
SPECSMCJ350A, 350 V, 411.5 V
Availability
–
Downloads7 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ350A
DC Operating Voltage350 V
(Reverse) Breakdown Voltage411.5 V
(Reverse) Peak Pulse Current2.6 A
Power Dissipation1500 W
Clamping Voltage [max.]567 V
Design Kit –
–Check availability
824540402
SPECSMCJ400A, 400 V, 470.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ400A
DC Operating Voltage400 V
(Reverse) Breakdown Voltage470.5 V
(Reverse) Peak Pulse Current2.3 A
Power Dissipation1500 W
Clamping Voltage [max.]648 V
Design Kit –
–Check availability
824540442
SPECSMCJ440A, 440 V, 517.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ440A
DC Operating Voltage440 V
(Reverse) Breakdown Voltage517.5 V
(Reverse) Peak Pulse Current2.1 A
Power Dissipation1500 W
Clamping Voltage [max.]713 V
Design Kit –
–Check availability
824540151
SPECSMCJ15A, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ15A
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current61.5 A
Power Dissipation1500 W
Clamping Voltage [max.]24.4 V
Design Kit –
–Check availability
824540161
SPECSMCJ16A, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ16A
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current57.7 A
Power Dissipation1500 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824540171
SPECSMCJ17A, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ17A
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current54.4 A
Power Dissipation1500 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824540181
SPECSMCJ18A, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ18A
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current51.4 A
Power Dissipation1500 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824540481
SPECSMCJ48A, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ48A
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current19.4 A
Power Dissipation1500 W
Clamping Voltage [max.]77.4 V
Design Kit
824598
–Check availability
824541151
SPECSMCJ15CA, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ15CA
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current61.5 A
Power Dissipation1500 W
Clamping Voltage [max.]24.4 V
Design Kit –
–Check availability
824541161
SPECSMCJ16CA, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ16CA
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current57.7 A
Power Dissipation1500 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824541171
SPECSMCJ17CA, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ17CA
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current54.4 A
Power Dissipation1500 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824541181
SPECSMCJ18CA, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ18CA
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current51.4 A
Power Dissipation1500 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824541481
SPECSMCJ48CA, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMCJ48CA
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current19.4 A
Power Dissipation1500 W
Clamping Voltage [max.]77.4 V
Design Kit
824598
–Check availability
824551500
SPECSMDJ5.0CA, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ5.0CA
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current326.1 A
Power Dissipation3000 W
Clamping Voltage [max.]9.2 V
Design Kit
824598
–Check availability
824551600
SPECSMDJ6.0CA, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ6.0CA
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current291.3 A
Power Dissipation3000 W
Clamping Voltage [max.]10.3 V
Design Kit
824598
–Check availability
824551650
SPECSMDJ6.5CA, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ6.5CA
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current267.9 A
Power Dissipation3000 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824551700
SPECSMDJ7.0CA, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ7.0CA
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current250 A
Power Dissipation3000 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824551750
SPECSMDJ7.5CA, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ7.5CA
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current232.6 A
Power Dissipation3000 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824551800
SPECSMDJ8.0CA, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ8.0CA
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current220.6 A
Power Dissipation3000 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824551850
SPECSMDJ8.5CA, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ8.5CA
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current208.3 A
Power Dissipation3000 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824551900
SPECSMDJ9.0CA, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ9.0CA
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current194.8 A
Power Dissipation3000 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824551101
SPECSMDJ10CA, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ10CA
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current176.5 A
Power Dissipation3000 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824551111
SPECSMDJ11CA, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ11CA
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current164.8 A
Power Dissipation3000 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824551121
SPECSMDJ12CA, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ12CA
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current150.8 A
Power Dissipation3000 W
Clamping Voltage [max.]19.9 V
Design Kit
824598
–Check availability
824551131
SPECSMDJ13CA, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ13CA
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current139.5 A
Power Dissipation3000 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824551141
SPECSMDJ14CA, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ14CA
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current129.3 A
Power Dissipation3000 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824551261
SPECSMDJ26CA, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ26CA
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current71.3 A
Power Dissipation3000 W
Clamping Voltage [max.]42.1 V
Design Kit
824598
–Check availability
824551281
SPECSMDJ28CA, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ28CA
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current66.1 A
Power Dissipation3000 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824551201
SPECSMDJ20CA, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ20CA
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current92.6 A
Power Dissipation3000 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824551221
SPECSMDJ22CA, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ22CA
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current84.5 A
Power Dissipation3000 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824551241
SPECSMDJ24CA, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ24CA
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current77.1 A
Power Dissipation3000 W
Clamping Voltage [max.]38.9 V
Design Kit
824598
–Check availability
824551361
SPECSMDJ36CA, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ36CA
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current51.6 A
Power Dissipation3000 W
Clamping Voltage [max.]58.1 V
Design Kit
824598
–Check availability
824551301
SPECSMDJ30CA, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ30CA
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current62 A
Power Dissipation3000 W
Clamping Voltage [max.]48.4 V
Design Kit
824598
–Check availability
824551331
SPECSMDJ33CA, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ33CA
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current56.3 A
Power Dissipation3000 W
Clamping Voltage [max.]53.3 V
Design Kit
824598
–Check availability
824551401
SPECSMDJ40CA, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ40CA
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current46.5 A
Power Dissipation3000 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824551431
SPECSMDJ43CA, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ43CA
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current43.2 A
Power Dissipation3000 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824551451
SPECSMDJ45CA, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ45CA
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current41.3 A
Power Dissipation3000 W
Clamping Voltage [max.]72.7 V
Design Kit –
–Check availability
824551511
SPECSMDJ51CA, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ51CA
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current36.4 A
Power Dissipation3000 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824551541
SPECSMDJ54CA, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ54CA
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current34.4 A
Power Dissipation3000 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824551581
SPECSMDJ58CA, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ58CA
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current32.1 A
Power Dissipation3000 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824551601
SPECSMDJ60CA, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ60CA
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current31 A
Power Dissipation3000 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824551641
SPECSMDJ64CA, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ64CA
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current29.1 A
Power Dissipation3000 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824551701
SPECSMDJ70CA, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ70CA
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current26.5 A
Power Dissipation3000 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824551751
SPECSMDJ75CA, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ75CA
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current24.8 A
Power Dissipation3000 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824551781
SPECSMDJ78CA, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ78CA
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current23.8 A
Power Dissipation3000 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824551851
SPECSMDJ85CA, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ85CA
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current21.9 A
Power Dissipation3000 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824551901
SPECSMDJ90CA, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ90CA
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current20.5 A
Power Dissipation3000 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824551102
SPECSMDJ100CA, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ100CA
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current18.5 A
Power Dissipation3000 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824551162
SPECSMDJ160CA, 160 V, 187.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ160CA
DC Operating Voltage160 V
(Reverse) Breakdown Voltage187.5 V
(Reverse) Peak Pulse Current11.6 A
Power Dissipation3000 W
Clamping Voltage [max.]259 V
Design Kit –
–Check availability
824551202
SPECSMDJ200CA, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ200CA
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current9.3 A
Power Dissipation3000 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824551222
SPECSMDJ220CA, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ220CA
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current8.4 A
Power Dissipation3000 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824550500
SPECSMDJ5.0A, 5 V, 6.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ5.0A
DC Operating Voltage5 V
(Reverse) Breakdown Voltage6.7 V
(Reverse) Peak Pulse Current326.1 A
Power Dissipation3000 W
Clamping Voltage [max.]9.2 V
Design Kit
824598
–Check availability
824550600
SPECSMDJ6.0A, 6 V, 7.02 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ6.0A
DC Operating Voltage6 V
(Reverse) Breakdown Voltage7.02 V
(Reverse) Peak Pulse Current291.3 A
Power Dissipation3000 W
Clamping Voltage [max.]10.3 V
Design Kit
824598
–Check availability
824550650
SPECSMDJ6.5A, 6.5 V, 7.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ6.5A
DC Operating Voltage6.5 V
(Reverse) Breakdown Voltage7.6 V
(Reverse) Peak Pulse Current267.9 A
Power Dissipation3000 W
Clamping Voltage [max.]11.2 V
Design Kit –
–Check availability
824550700
SPECSMDJ7.0A, 7 V, 8.19 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ7.0A
DC Operating Voltage7 V
(Reverse) Breakdown Voltage8.19 V
(Reverse) Peak Pulse Current250 A
Power Dissipation3000 W
Clamping Voltage [max.]12 V
Design Kit –
–Check availability
824550750
SPECSMDJ7.5A, 7.5 V, 8.77 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ7.5A
DC Operating Voltage7.5 V
(Reverse) Breakdown Voltage8.77 V
(Reverse) Peak Pulse Current232.6 A
Power Dissipation3000 W
Clamping Voltage [max.]12.9 V
Design Kit –
–Check availability
824550800
SPECSMDJ8.0A, 8 V, 9.36 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ8.0A
DC Operating Voltage8 V
(Reverse) Breakdown Voltage9.36 V
(Reverse) Peak Pulse Current220.6 A
Power Dissipation3000 W
Clamping Voltage [max.]13.6 V
Design Kit –
–Check availability
824550850
SPECSMDJ8.5A, 8.5 V, 9.92 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ8.5A
DC Operating Voltage8.5 V
(Reverse) Breakdown Voltage9.92 V
(Reverse) Peak Pulse Current208.3 A
Power Dissipation3000 W
Clamping Voltage [max.]14.4 V
Design Kit –
–Check availability
824550900
SPECSMDJ9.0A, 9 V, 10.55 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ9.0A
DC Operating Voltage9 V
(Reverse) Breakdown Voltage10.55 V
(Reverse) Peak Pulse Current194.8 A
Power Dissipation3000 W
Clamping Voltage [max.]15.4 V
Design Kit –
–Check availability
824550101
SPECSMDJ10A, 10 V, 11.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ10A
DC Operating Voltage10 V
(Reverse) Breakdown Voltage11.7 V
(Reverse) Peak Pulse Current176.5 A
Power Dissipation3000 W
Clamping Voltage [max.]17 V
Design Kit –
–Check availability
824550111
SPECSMDJ11A, 11 V, 12.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ11A
DC Operating Voltage11 V
(Reverse) Breakdown Voltage12.85 V
(Reverse) Peak Pulse Current164.8 A
Power Dissipation3000 W
Clamping Voltage [max.]18.2 V
Design Kit –
–Check availability
824550121
SPECSMDJ12A, 12 V, 14 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ12A
DC Operating Voltage12 V
(Reverse) Breakdown Voltage14 V
(Reverse) Peak Pulse Current150.8 A
Power Dissipation3000 W
Clamping Voltage [max.]19.9 V
Design Kit
824598
–Check availability
824550131
SPECSMDJ13A, 13 V, 15.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ13A
DC Operating Voltage13 V
(Reverse) Breakdown Voltage15.15 V
(Reverse) Peak Pulse Current139.5 A
Power Dissipation3000 W
Clamping Voltage [max.]21.5 V
Design Kit –
–Check availability
824550141
SPECSMDJ14A, 14 V, 16.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ14A
DC Operating Voltage14 V
(Reverse) Breakdown Voltage16.4 V
(Reverse) Peak Pulse Current129.3 A
Power Dissipation3000 W
Clamping Voltage [max.]23.2 V
Design Kit –
–Check availability
824550261
SPECSMDJ26A, 26 V, 30.4 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ26A
DC Operating Voltage26 V
(Reverse) Breakdown Voltage30.4 V
(Reverse) Peak Pulse Current71.3 A
Power Dissipation3000 W
Clamping Voltage [max.]42.1 V
Design Kit
824598
–Check availability
824550281
SPECSMDJ28A, 28 V, 32.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ28A
DC Operating Voltage28 V
(Reverse) Breakdown Voltage32.75 V
(Reverse) Peak Pulse Current66.1 A
Power Dissipation3000 W
Clamping Voltage [max.]45.4 V
Design Kit –
–Check availability
824550201
SPECSMDJ20A, 20 V, 23.35 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ20A
DC Operating Voltage20 V
(Reverse) Breakdown Voltage23.35 V
(Reverse) Peak Pulse Current92.6 A
Power Dissipation3000 W
Clamping Voltage [max.]32.4 V
Design Kit –
–Check availability
824550221
SPECSMDJ22A, 22 V, 25.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ22A
DC Operating Voltage22 V
(Reverse) Breakdown Voltage25.65 V
(Reverse) Peak Pulse Current84.5 A
Power Dissipation3000 W
Clamping Voltage [max.]35.5 V
Design Kit –
–Check availability
824550241
SPECSMDJ24A, 24 V, 28.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ24A
DC Operating Voltage24 V
(Reverse) Breakdown Voltage28.1 V
(Reverse) Peak Pulse Current77.1 A
Power Dissipation3000 W
Clamping Voltage [max.]38.9 V
Design Kit
824598
–Check availability
824550301
SPECSMDJ30A, 30 V, 35.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ30A
DC Operating Voltage30 V
(Reverse) Breakdown Voltage35.05 V
(Reverse) Peak Pulse Current62 A
Power Dissipation3000 W
Clamping Voltage [max.]48.4 V
Design Kit
824598
–Check availability
824550331
SPECSMDJ33A, 33 V, 38.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ33A
DC Operating Voltage33 V
(Reverse) Breakdown Voltage38.65 V
(Reverse) Peak Pulse Current56.3 A
Power Dissipation3000 W
Clamping Voltage [max.]53.3 V
Design Kit
824598
–Check availability
824550361
SPECSMDJ36A, 36 V, 42.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ36A
DC Operating Voltage36 V
(Reverse) Breakdown Voltage42.1 V
(Reverse) Peak Pulse Current51.6 A
Power Dissipation3000 W
Clamping Voltage [max.]58.1 V
Design Kit
824598
–Check availability
824550401
SPECSMDJ40A, 40 V, 46.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ40A
DC Operating Voltage40 V
(Reverse) Breakdown Voltage46.75 V
(Reverse) Peak Pulse Current46.5 A
Power Dissipation3000 W
Clamping Voltage [max.]64.5 V
Design Kit –
–Check availability
824550431
SPECSMDJ43A, 43 V, 50.3 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ43A
DC Operating Voltage43 V
(Reverse) Breakdown Voltage50.3 V
(Reverse) Peak Pulse Current43.2 A
Power Dissipation3000 W
Clamping Voltage [max.]69.4 V
Design Kit –
–Check availability
824550451
SPECSMDJ45A, 45 V, 52.65 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ45A
DC Operating Voltage45 V
(Reverse) Breakdown Voltage52.65 V
(Reverse) Peak Pulse Current41.3 A
Power Dissipation3000 W
Clamping Voltage [max.]72.2 V
Design Kit –
–Check availability
824550511
SPECSMDJ51A, 51 V, 59.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ51A
DC Operating Voltage51 V
(Reverse) Breakdown Voltage59.7 V
(Reverse) Peak Pulse Current36.4 A
Power Dissipation3000 W
Clamping Voltage [max.]82.4 V
Design Kit –
–Check availability
824550541
SPECSMDJ54A, 54 V, 63.15 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ54A
DC Operating Voltage54 V
(Reverse) Breakdown Voltage63.15 V
(Reverse) Peak Pulse Current34.4 A
Power Dissipation3000 W
Clamping Voltage [max.]87.1 V
Design Kit –
–Check availability
824550581
SPECSMDJ58A, 58 V, 67.8 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ58A
DC Operating Voltage58 V
(Reverse) Breakdown Voltage67.8 V
(Reverse) Peak Pulse Current32.1 A
Power Dissipation3000 W
Clamping Voltage [max.]93.6 V
Design Kit –
–Check availability
824550601
SPECSMDJ60A, 60 V, 70.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ60A
DC Operating Voltage60 V
(Reverse) Breakdown Voltage70.2 V
(Reverse) Peak Pulse Current31 A
Power Dissipation3000 W
Clamping Voltage [max.]96.8 V
Design Kit –
–Check availability
824550641
SPECSMDJ64A, 64 V, 74.85 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ64A
DC Operating Voltage64 V
(Reverse) Breakdown Voltage74.85 V
(Reverse) Peak Pulse Current29.1 A
Power Dissipation3000 W
Clamping Voltage [max.]103 V
Design Kit –
–Check availability
824550701
SPECSMDJ70A, 70 V, 81.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ70A
DC Operating Voltage70 V
(Reverse) Breakdown Voltage81.9 V
(Reverse) Peak Pulse Current26.5 A
Power Dissipation3000 W
Clamping Voltage [max.]113 V
Design Kit –
–Check availability
824550751
SPECSMDJ75A, 75 V, 87.7 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ75A
DC Operating Voltage75 V
(Reverse) Breakdown Voltage87.7 V
(Reverse) Peak Pulse Current24.8 A
Power Dissipation3000 W
Clamping Voltage [max.]121 V
Design Kit –
–Check availability
824550781
SPECSMDJ78A, 78 V, 91.25 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ78A
DC Operating Voltage78 V
(Reverse) Breakdown Voltage91.25 V
(Reverse) Peak Pulse Current23.8 A
Power Dissipation3000 W
Clamping Voltage [max.]126 V
Design Kit –
–Check availability
824550851
SPECSMDJ85A, 85 V, 99.2 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ85A
DC Operating Voltage85 V
(Reverse) Breakdown Voltage99.2 V
(Reverse) Peak Pulse Current21.9 A
Power Dissipation3000 W
Clamping Voltage [max.]137 V
Design Kit –
–Check availability
824550901
SPECSMDJ90A, 90 V, 105.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ90A
DC Operating Voltage90 V
(Reverse) Breakdown Voltage105.5 V
(Reverse) Peak Pulse Current20.5 A
Power Dissipation3000 W
Clamping Voltage [max.]146 V
Design Kit –
–Check availability
824550102
SPECSMDJ100A, 100 V, 117 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ100A
DC Operating Voltage100 V
(Reverse) Breakdown Voltage117 V
(Reverse) Peak Pulse Current18.5 A
Power Dissipation3000 W
Clamping Voltage [max.]162 V
Design Kit –
–Check availability
824550162
SPECSMDJ160A, 160 V, 187.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ160A
DC Operating Voltage160 V
(Reverse) Breakdown Voltage187.5 V
(Reverse) Peak Pulse Current11.6 A
Power Dissipation3000 W
Clamping Voltage [max.]259 V
Design Kit –
–Check availability
824550202
SPECSMDJ200A, 200 V, 235.5 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ200A
DC Operating Voltage200 V
(Reverse) Breakdown Voltage235.5 V
(Reverse) Peak Pulse Current9.3 A
Power Dissipation3000 W
Clamping Voltage [max.]324 V
Design Kit –
–Check availability
824550222
SPECSMDJ220A, 220 V, 259 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ220A
DC Operating Voltage220 V
(Reverse) Breakdown Voltage259 V
(Reverse) Peak Pulse Current8.4 A
Power Dissipation3000 W
Clamping Voltage [max.]356 V
Design Kit –
–Check availability
824550151
SPECSMDJ15A, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ15A
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current123 A
Power Dissipation3000 W
Clamping Voltage [max.]24.4 V
Design Kit –
–Check availability
824550161
SPECSMDJ16A, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ16A
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current115.4 A
Power Dissipation3000 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824550171
SPECSMDJ17A, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ17A
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current108.7 A
Power Dissipation3000 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824550181
SPECSMDJ18A, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ18A
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current102.7 A
Power Dissipation3000 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824550481
SPECSMDJ48A, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ48A
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current38.8 A
Power Dissipation3000 W
Clamping Voltage [max.]77.4 V
Design Kit
824598
–Check availability
824551151
SPECSMDJ15CA, 15 V, 17.6 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ15CA
DC Operating Voltage15 V
(Reverse) Breakdown Voltage17.6 V
(Reverse) Peak Pulse Current123 A
Power Dissipation3000 W
Clamping Voltage [max.]24.4 V
Design Kit –
–Check availability
824551161
SPECSMDJ16CA, 16 V, 18.75 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ16CA
DC Operating Voltage16 V
(Reverse) Breakdown Voltage18.75 V
(Reverse) Peak Pulse Current115.4 A
Power Dissipation3000 W
Clamping Voltage [max.]26 V
Design Kit –
–Check availability
824551171
SPECSMDJ17CA, 17 V, 19.9 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ17CA
DC Operating Voltage17 V
(Reverse) Breakdown Voltage19.9 V
(Reverse) Peak Pulse Current108.7 A
Power Dissipation3000 W
Clamping Voltage [max.]27.6 V
Design Kit –
–Check availability
824551181
SPECSMDJ18CA, 18 V, 21.05 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ18CA
DC Operating Voltage18 V
(Reverse) Breakdown Voltage21.05 V
(Reverse) Peak Pulse Current102.7 A
Power Dissipation3000 W
Clamping Voltage [max.]29.2 V
Design Kit –
–Check availability
824551481
SPECSMDJ48CA, 48 V, 56.1 V
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Technical ReferenceSMDJ48CA
DC Operating Voltage48 V
(Reverse) Breakdown Voltage56.1 V
(Reverse) Peak Pulse Current38.8 A
Power Dissipation3000 W
Clamping Voltage [max.]77.4 V
Design Kit
824598
–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-TVSP Power TVSP Diodes High Power
Design Kit WE-TVSP Power TVS Diode Low Power

Learn more
