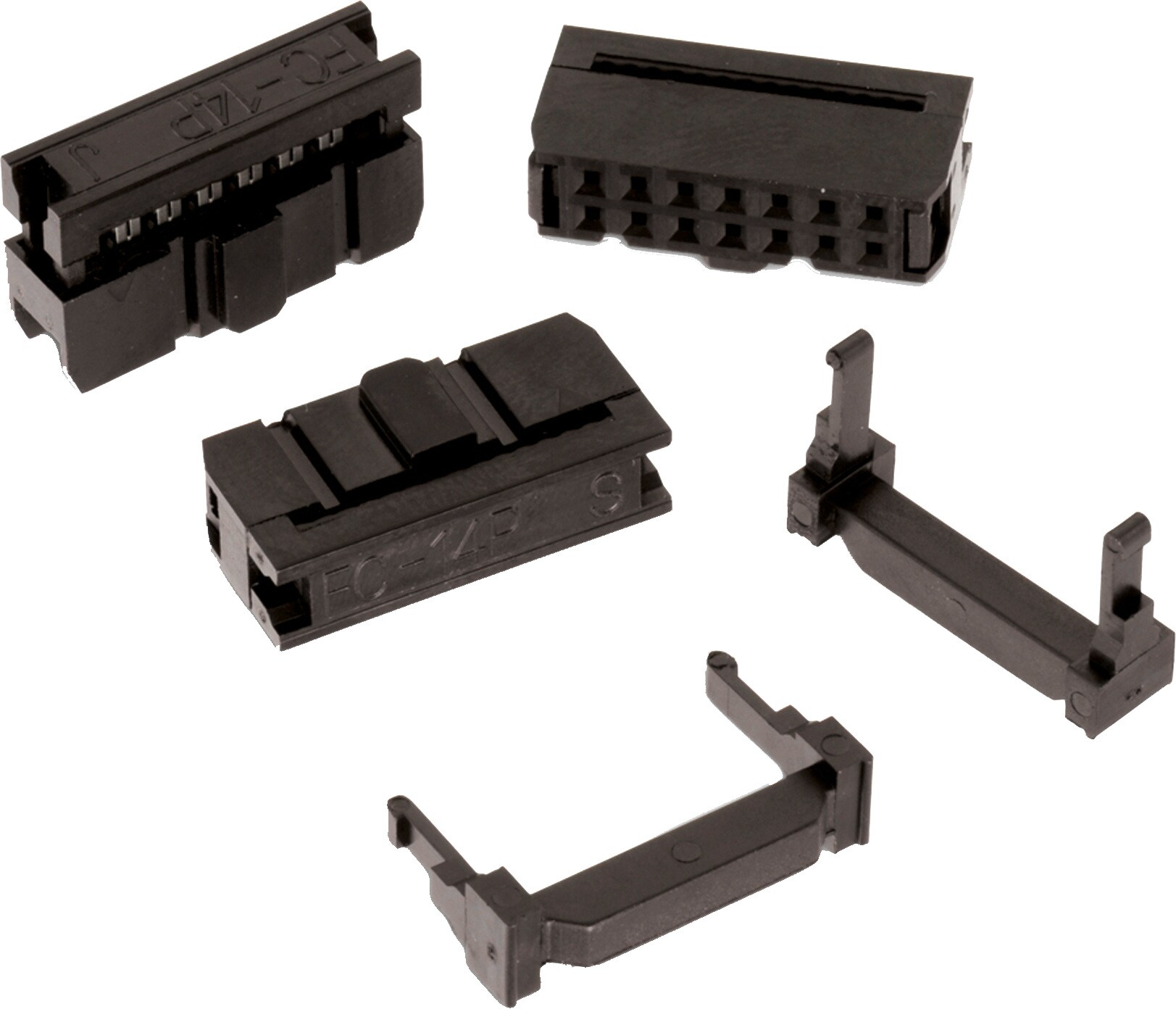

WR-BHD 2.54 mm Female IDC Connector with Strain Relief | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.54 mm GenderFemale Cable side Product seriesWR-BHD 2.54 mm Female IDC Connector with Strain Relief

WR-BHD 2.54 mm Female IDC Connector with Strain Relief. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Female

Certification
UL Approval	E323964

Wire Properties
Solid Wire Section (AWG)	28

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
61200623021	SPEC	3 files CAD files ZIP 3D 61200623021_1 (rev1).pdf \| 145.4 KB IGS 61200623021 (rev1).igs \| 2.5 MB STP 61200623021 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Female	12.3	1	250	20	max.	Tray	–
61200823021	SPEC	3 files CAD files ZIP 3D 61200823021_1 (rev1).pdf \| 159.5 KB IGS 61200823021 (rev1).igs \| 2.8 MB STP 61200823021 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Female	14.84	1	250	20	max.	Tray	612001
61201023021	SPEC	3 files CAD files ZIP 3D 61201023021_1 (rev1).pdf \| 174.2 KB IGS 61201023021 (rev1).igs \| 3 MB STP 61201023021 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Female	17.38	1	250	20	max.	Tray	612001 612690
61201423021	SPEC	3 files CAD files ZIP 3D 61201423021_1 (rev1).pdf \| 208.7 KB IGS 61201423021 (rev1).igs \| 3.7 MB STP 61201423021 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Female	22.46	1	250	20	max.	Tray	612001
61201623021	SPEC	3 files CAD files ZIP 3D 61201623021_1 (rev1).pdf \| 224 KB IGS 61201623021 (rev1).igs \| 3.9 MB STP 61201623021 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Female	25	1	250	20	max.	Tray	612001
61202023021	SPEC	3 files CAD files ZIP 3D 61202023021_1 (rev1).pdf \| 254.9 KB IGS 61202023021 (rev1).igs \| 4.4 MB STP 61202023021 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Female	30.08	1	250	20	max.	Tray	612001
61202423021	SPEC	3 files CAD files ZIP 3D 61202423021_1 (rev1).pdf \| 284.4 KB IGS 61202423021 (rev1).igs \| 5 MB STP 61202423021 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	2.54	Female	35.16	1	250	20	max.	Tray	–
61202623021	SPEC	3 files CAD files ZIP 3D 61202623021_1 (rev1).pdf \| 300.4 KB IGS 61202623021 (rev1).igs \| 5.3 MB STP 61202623021 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Female	37.7	1	250	20	max.	Tray	612001
61203423021	SPEC	3 files CAD files ZIP 3D 61203423021_1 (rev1).pdf \| 361.4 KB IGS 61203423021 (rev1).igs \| 6.4 MB STP 61203423021 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	2.54	Female	47.86	1	250	20	max.	Tray	612001
61204023021	SPEC	3 files CAD files ZIP 3D 61204023021_1 (rev1).pdf \| 407.5 KB IGS 61204023021 (rev1).igs \| 7.1 MB STP 61204023021 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	2.54	Female	55.48	1	250	20	max.	Tray	612001
61205023021	SPEC	3 files CAD files ZIP 3D 61205023021_1 (rev1).pdf \| 488.1 KB IGS 61205023021 (rev1).igs \| 8.5 MB STP 61205023021 (rev1).stp \| 3.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	2.54	Female	68.18	1	250	20	max.	Tray	612001
61206023021	SPEC	3 files CAD files ZIP 3D 61206023021_1 (rev1).pdf \| 567.3 KB IGS 61206023021 (rev1).igs \| 9.8 MB STP 61206023021 (rev1).stp \| 3.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	60	2.54	Female	80.88	1	250	20	max.	Tray	–
61206423021	SPEC	3 files CAD files ZIP 3D 61206423021_1 (rev1).pdf \| 599.1 KB IGS 61206423021 (rev1).igs \| 10.4 MB STP 61206423021 (rev1).stp \| 4.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	64	2.54	Female	85.96	1	250	20	max.	Tray	–

Order Code	Datasheet
61200623021	SPEC
61200823021	SPEC
61201023021	SPEC
61201423021	SPEC
61201623021	SPEC
61202023021	SPEC
61202423021	SPEC
61202623021	SPEC
61203423021	SPEC
61204023021	SPEC
61205023021	SPEC
61206023021	SPEC
61206423021	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Use with

WR-CAB 1.27 mm Ribbon Flat Cable

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces

Mates with

WR-BHD 2.54 mm Male Box Header

WR-BHD 2.54 mm Male Angled Box Header

WR-BHD 2.54 mm Male Angled Box Header High Temperature

WR-BHD 2.54 mm Male SMT Box Header

WR-BHD 2.54 mm Male Box Header with short lever

WR-BHD 2.54 mm Male Box Header with long lever

WR-BHD 2.54 mm Male Angled Box Header with short lever

WR-BHD 2.54 mm Male Angled Box Header with long lever

WR-BHD 2.54 mm Male IDC Connector

WR-BHD 2.54 mm Male IDC Connector w. Ears

WR-BHD 2.54 mm Male Box Header High Temperature

Tools

WR-BHD IDC Press & Tools

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable

Design Kit Connector Solutions
