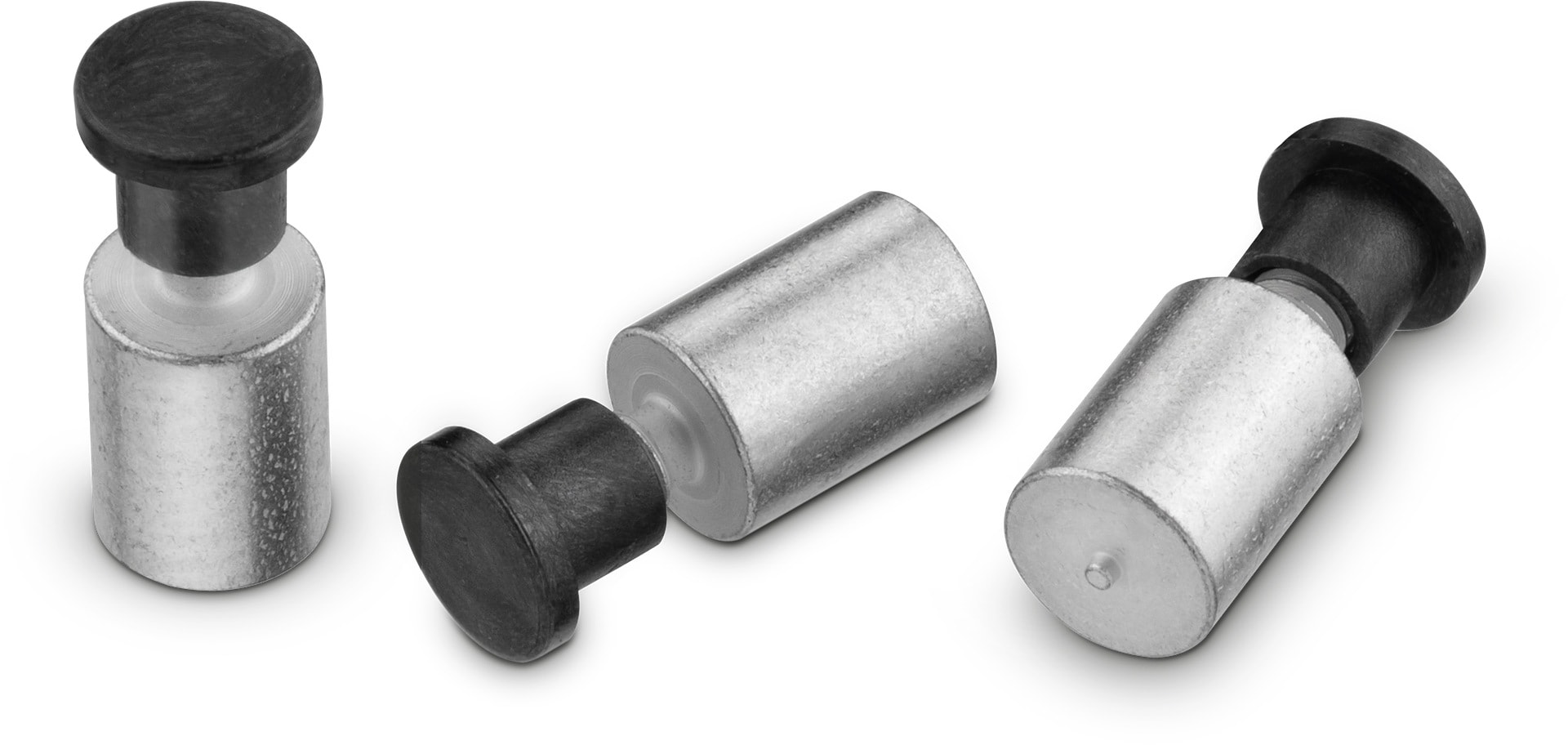

WA-SMSE Steel Spacer with external thread M3

Applications

Attachment above the PCB by using a nut
For distance from 5 to 15 mm
Fast and precise process
Strong holding forces and torques
Highest process reliability

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Steel
Surface	Tin
Solder Cream Thickness (Value)	150 µm
Tightening Torque	0.5 N*m

Products

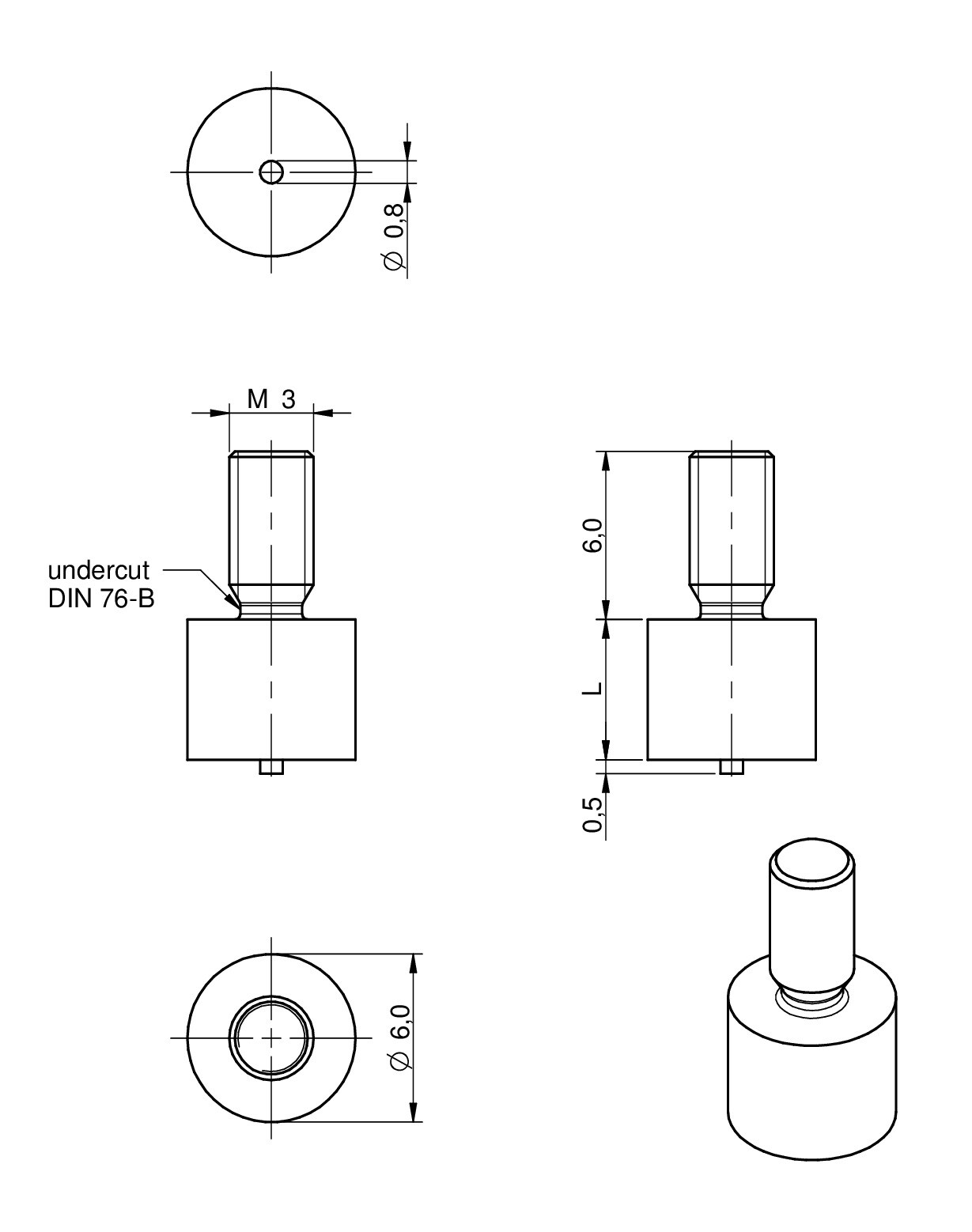

Order Code	Datasheet	Downloads	L (mm)	Ø OD (mm)	Packaging	Qty.	Board
9771050360R	SPEC	5 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP IGS 9771050360R (rev1).igs \| 104.9 KB STP 9771050360R (rev1).stp \| 21 KB Download all 5 files as zip archive ZIP	5	6	Tape and Reel	300	700990
9771060360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771060360R (rev1).pdf \| 52.7 KB IGS 9771060360R (rev1).igs \| 106.8 KB STP 9771060360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	6	6	Tape and Reel	300	–
9771070360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771070360R (rev1).pdf \| 52.4 KB IGS 9771070360R (rev1).igs \| 105.6 KB STP 9771070360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	7	6	Tape and Reel	200	–
9771080360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771080360R (rev1).pdf \| 51.4 KB IGS 9771080360R (rev1).igs \| 105.7 KB STP 9771080360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	8	6	Tape and Reel	200	–
9771090360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771090360R (rev1).pdf \| 50.6 KB IGS 9771090360R (rev1).igs \| 105.6 KB STP 9771090360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	9	6	Tape and Reel	200	–
9771100360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771100360R (rev1).pdf \| 48.6 KB IGS 9771100360R (rev1).igs \| 105.4 KB STP 9771100360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	10	6	Tape and Reel	200	–
9771110360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771110360R (rev1).pdf \| 46.9 KB IGS 9771110360R (rev1).igs \| 104.8 KB STP 9771110360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	11	6	Tape and Reel	180	–
9771120360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771120360R (rev1).pdf \| 46.6 KB IGS 9771120360R (rev1).igs \| 104.2 KB STP 9771120360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	12	6	Tape and Reel	180	–
9771130360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771130360R (rev1).pdf \| 47.2 KB IGS 9771130360R (rev1).igs \| 103.5 KB STP 9771130360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	13	6	Tape and Reel	150	–
9771140360R	SPEC	5 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP IGS 9771140360R (rev1).igs \| 103.5 KB STP 9771140360R (rev1).stp \| 21 KB Download all 5 files as zip archive ZIP	14	6	Tape and Reel	150	–
9771150360R	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-SMSE (rev22a).IntLib \| 84 KB CDS Cadence_WA-SMSE (rev19a).zip \| 579.7 KB EAG Eagle_WA-SMSE (rev21a).lbr \| 114.5 KB CAD files ZIP 3D 3D_9771150360R (rev1).pdf \| 46.4 KB IGS 9771150360R (rev1).igs \| 103.5 KB STP 9771150360R (rev1).stp \| 21 KB Download all 6 files as zip archive ZIP	15	6	Tape and Reel	150	–

	Order Code	Datasheet
	9771050360R	SPEC
	9771060360R	SPEC
	9771070360R	SPEC
	9771080360R	SPEC
	9771090360R	SPEC
	9771100360R	SPEC
	9771110360R	SPEC
	9771120360R	SPEC
	9771130360R	SPEC
	9771140360R	SPEC
	9771150360R	SPEC

Samples

	Order Code	Datasheet	Downloads	L (mm)	Ø OD (mm)	Packaging	Qty.	Board	Samples

SMT Spacer from Würth Elektronik eiSos

CHECKMATE

SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation. Available on reel, they can be positioned very precisely on the PCB. Different designs cover a wide range of applications for fast, strong and safe soldering connections.
