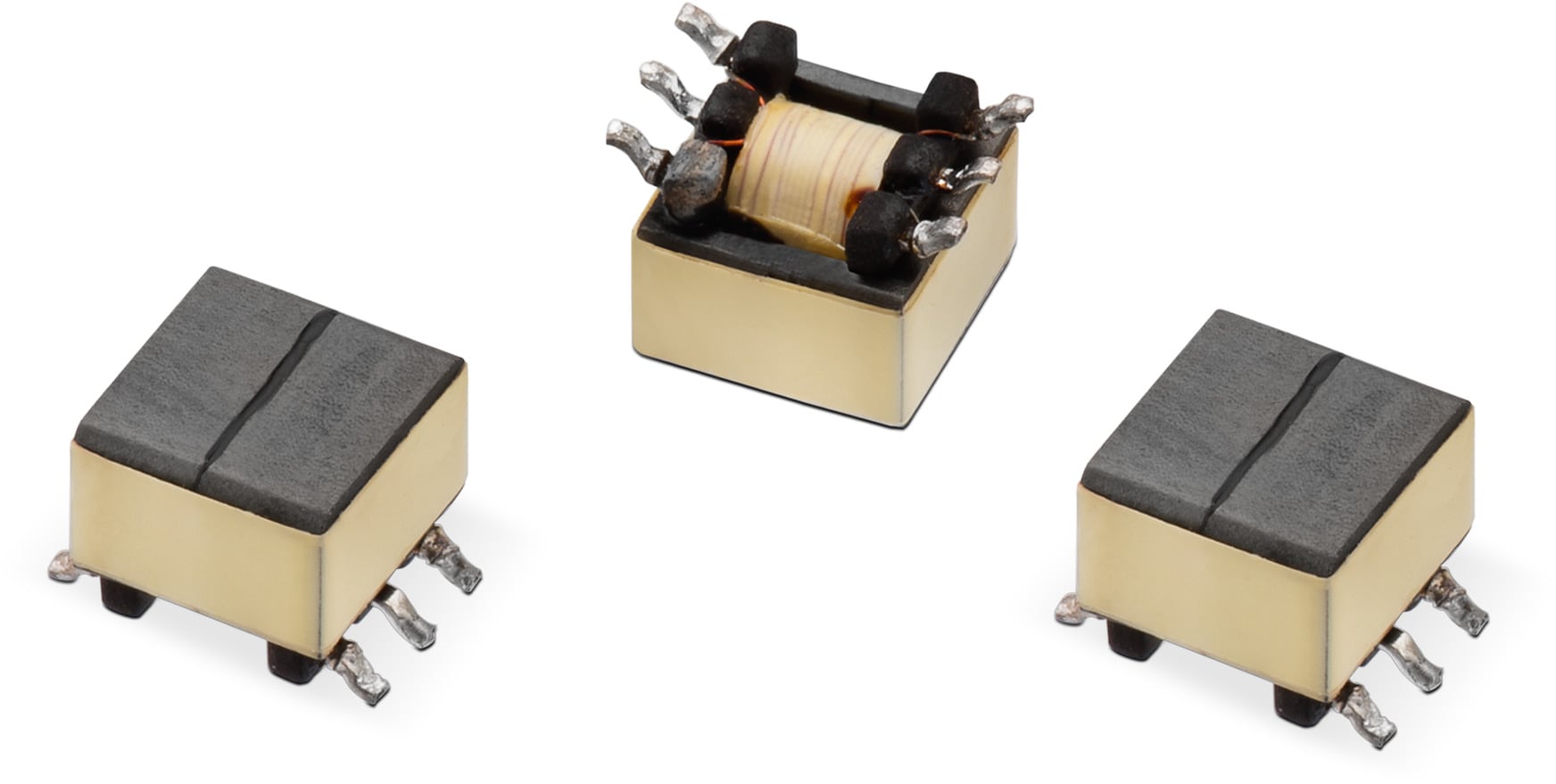

WE-GDT Gate-Drive-Transformer

	Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount

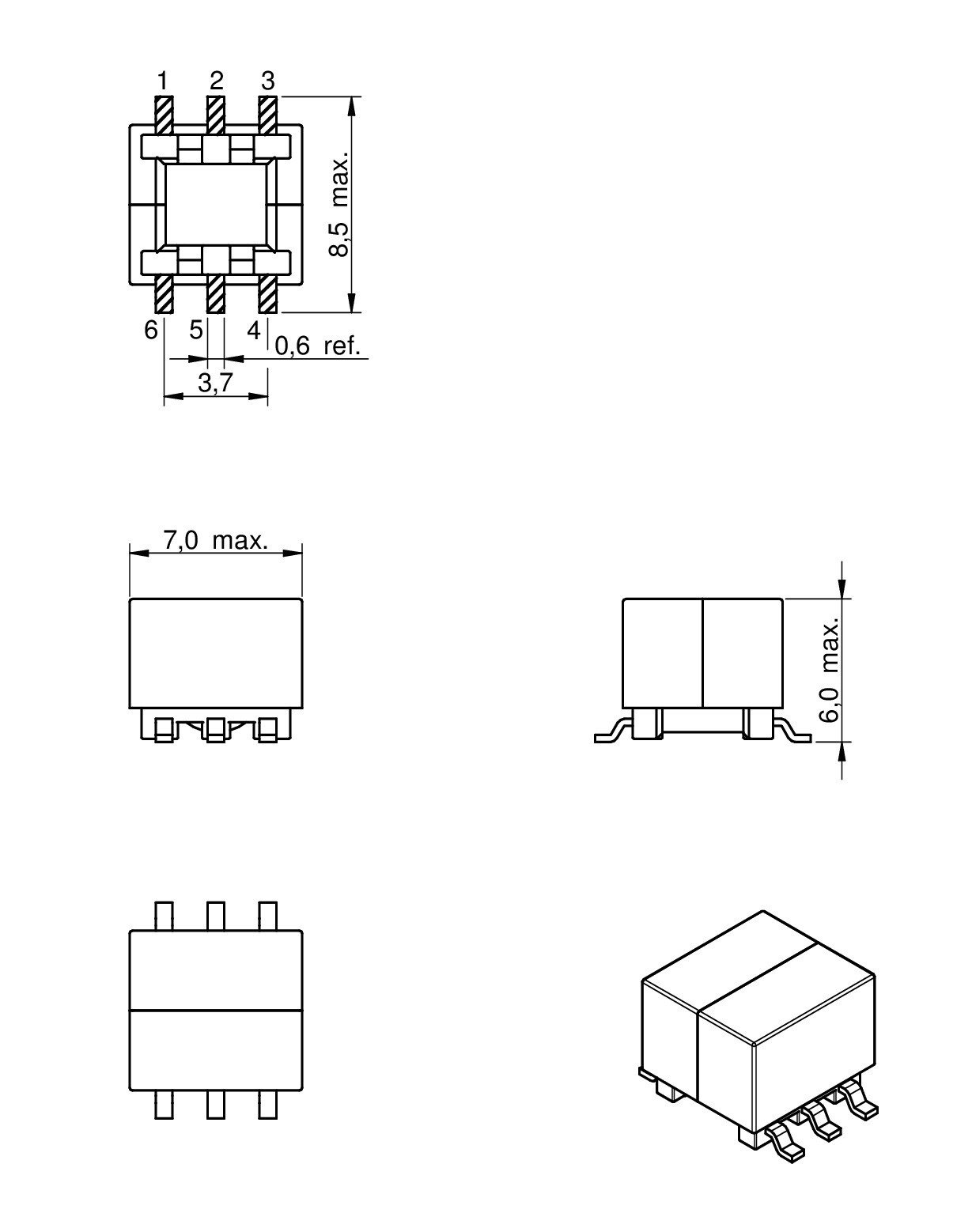

	EP5			7	8.5	6	SMT
NEW	ER9.5			10	12.07	5.97	SMT
NEW	1210			10.26	12.98	5.64	SMT

LTSpice files

LT
LTSpice_WE-GDT (rev23a).zip
|
7.5 KB

Characteristics

Compact package sizes: EP5, ER9.5, 1210 Toroid
1 or 2 secondary windings
7 different Translations
Insulation test voltages from 1500 VDC up to 2100 VDC

Applications

Suitable for signal and power application
Designed for gate drive application high efficient SMPS
Synchronous rectification
Motor drive control
Telecom base station power supplies

Products

All

EP5

ER9.5

1210

	Order Code	Datasheet	Downloads	Status	n	L (µH)	∫Udt (µVs)	V_T (V (DC))	C_{WW 1} (pF)	L_S (µH)	Size	Samples
	760301105	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB ZUK Cadstar_WE-GDT (rev19a).zip \| 5.3 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP IGS WE-GDT_EP5 (rev1).igs \| 1.6 MB STP WE-GDT_EP5 (rev1).stp \| 574.6 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1:1:1	260	25.2	1500	9	1.7	EP5
	760301106	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB ZUK Cadstar_WE-GDT (rev19a).zip \| 5.3 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP IGS WE-GDT_EP5 (rev1).igs \| 1.6 MB STP WE-GDT_EP5 (rev1).stp \| 574.6 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1:1	370	30.2	1500	10	1.8	EP5
	760301107	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB ZUK Cadstar_WE-GDT (rev19a).zip \| 5.3 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP IGS WE-GDT_EP5 (rev1).igs \| 1.6 MB STP WE-GDT_EP5 (rev1).stp \| 574.6 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5:1	650	40.8	1500	9	2.9	EP5
	750316094	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 21/11/2024 SPEC Datasheet valid from 22/11/2024 PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP 3D 3D_250-1252 (rev1).PDF \| 67 KB IGS Download_IGS_250-1252 (rev1).IGS \| 1.7 MB STP Download_STP_250-1252 (rev1).STEP \| 790.5 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1:1:5:5	261	28	2100	90	0.4	1210
	750316093	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 21/11/2024 SPEC Datasheet valid from 22/11/2024 PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP 3D 3D_250-1252 (rev1).PDF \| 67 KB IGS Download_IGS_250-1252 (rev1).IGS \| 1.7 MB STP Download_STP_250-1252 (rev1).STEP \| 790.5 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1:1:2:2	1710	70	2100	100	1.5	1210
	750311063	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1:1	600	–	2000	12	1.4	ER9.5/5
	760301103	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB ZUK Cadstar_WE-GDT (rev19a).zip \| 5.3 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP IGS WE-GDT_EP5 (rev1).igs \| 1.6 MB STP WE-GDT_EP5 (rev1).stp \| 574.6 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5:1:1	350	29.4	1500	7	2.3	EP5
	760301104	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB ZUK Cadstar_WE-GDT (rev19a).zip \| 5.3 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP IGS WE-GDT_EP5 (rev1).igs \| 1.6 MB STP WE-GDT_EP5 (rev1).stp \| 574.6 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2:1:1	330	28.6	1500	7	1.9	EP5
	760301108	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-GDT (rev22b).IntLib \| 107.5 KB ZUK Cadstar_WE-GDT (rev19a).zip \| 5.3 KB CDS Cadence_WE-GDT (rev24a).zip \| 2.8 MB EAG Eagle_WE-GDT (rev24a).lbr \| 49.8 KB CAD files ZIP IGS WE-GDT_EP5 (rev1).igs \| 1.6 MB STP WE-GDT_EP5 (rev1).stp \| 574.6 KB Electric models ZIP LT LTSpice_WE-GDT (rev23a).zip \| 7.5 KB PSP PSpice_WE-GDT (rev23a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5:1	460	33.6	1500	9	2.3	EP5

	Order Code	Datasheet
	760301105	SPEC
	760301106	SPEC
	760301107	SPEC
	750316094	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 21/11/2024 SPEC Datasheet valid from 22/11/2024 PCN PCN document
	750316093	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 21/11/2024 SPEC Datasheet valid from 22/11/2024 PCN PCN document
	750311063	SPEC
	760301103	SPEC
	760301104	SPEC
	760301108	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	n	L (µH)	∫Udt (µVs)	V_T (V (DC))	C_{WW 1} (pF)	L_S (µH)	Size	Samples
