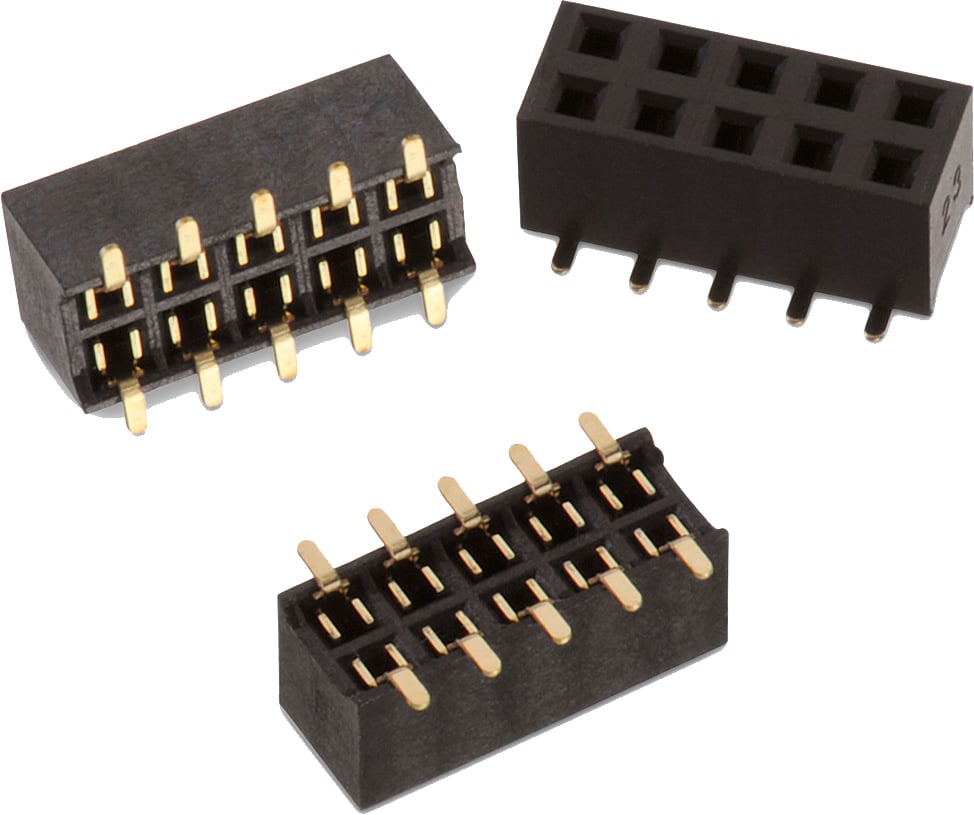

WR-PHD 2.00 mm Dual SMT Socket Header Bottom Entry

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	4 pcs; 6 pcs; 8 pcs; 10 pcs; 14 pcs; 16 pcs; 20 pcs; 24 pcs; 32 pcs; 44 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2 mm
Durability	50 Cycles
Rows	Dual
Gender	Socket Header
Type	Straight

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap; Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	621004242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621004242921_1 (rev1).pdf \| 69.9 KB IGS Download_IGES_621004242921 (rev1).iges \| 817.8 KB STP 621004242921 (rev1).stp \| 183.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Straight	2	Tube	–
	621304242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621304242921_1 (rev1).pdf \| 81.3 KB IGS Download_IGES_621304242921 (rev1).iges \| 996.5 KB STP 621304242921 (rev1).stp \| 223.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
	621006242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621006242921_1 (rev1).pdf \| 79.3 KB IGS Download_IGES_621006242921 (rev1).iges \| 968.3 KB STP 621006242921 (rev1).stp \| 220 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Straight	2	Tube	–
	621306242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621306242921_1 (rev1).pdf \| 90.7 KB IGS Download_IGES_621306242921 (rev1).iges \| 1.1 MB STP 621306242921 (rev1).stp \| 259.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–
	621008242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621008242921_1 (rev1).pdf \| 85.8 KB IGS Download_IGES_621008242921 (rev1).iges \| 1.1 MB STP 621008242921 (rev1).stp \| 253.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Straight	2	Tube	–
	621308242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621308242921_1 (rev1).pdf \| 97.2 KB IGS Download_IGES_621308242921 (rev1).iges \| 1.3 MB STP 621308242921 (rev1).stp \| 292.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
	621010242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621010242921_1 (rev1).pdf \| 93.3 KB IGS Download_IGES_621010242921 (rev1).iges \| 1.2 MB STP 621010242921 (rev1).stp \| 290.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Straight	2	Tube	612690
	621310242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621310242921_1 (rev1).pdf \| 104.7 KB IGS Download_IGES_621310242921 (rev1).iges \| 1.4 MB STP 621310242921 (rev1).stp \| 329.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
	621014242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621014242921_1 (rev1).pdf \| 108.3 KB IGS Download_IGES_621014242921 (rev1).iges \| 1.5 MB STP 621014242921 (rev1).stp \| 359.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Socket Header	Straight	2	Tube	–
	621314242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621314242921_1 (rev1).pdf \| 119.7 KB IGS Download_IGES_621314242921 (rev1).iges \| 1.7 MB STP 621314242921 (rev1).stp \| 398.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–
	621016242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621016242921_1 (rev1).pdf \| 115.9 KB IGS Download_IGES_621016242921 (rev1).iges \| 1.7 MB STP 621016242921 (rev1).stp \| 394.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Straight	2	Tube	–
	621316242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621316242921_1 (rev1).pdf \| 127.3 KB IGS Download_IGES_621316242921 (rev1).iges \| 1.9 MB STP 621316242921 (rev1).stp \| 434.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–
	621020242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621020242921_1 (rev1).pdf \| 130.7 KB IGS Download_IGES_621020242921 (rev1).iges \| 2 MB STP 621020242921 (rev1).stp \| 466.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Straight	2	Tube	–
	621320242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621320242921_1 (rev1).pdf \| 142.1 KB IGS Download_IGES_621320242921 (rev1).iges \| 2.2 MB STP 621320242921 (rev1).stp \| 508.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
	621024242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621024242921_1 (rev1).pdf \| 146 KB IGS Download_IGES_621024242921 (rev1).iges \| 2.3 MB STP 621024242921 (rev1).stp \| 541.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Socket Header	Straight	2	Tube	–
	621324242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621324242921_1 (rev1).pdf \| 157.4 KB IGS Download_IGES_621324242921 (rev1).iges \| 2.5 MB STP 621324242921 (rev1).stp \| 583 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–
	621032242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621032242921_1 (rev1).pdf \| 176.6 KB IGS Download_IGES_621032242921 (rev1).iges \| 2.9 MB STP 621032242921 (rev1).stp \| 678.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	32	Dual	Socket Header	Straight	2	Tube	–
	621044242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621044242921_1 (rev1).pdf \| 221.9 KB IGS Download_IGES_621044242921 (rev1).iges \| 3.8 MB STP 621044242921 (rev1).stp \| 903.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	44	Dual	Socket Header	Straight	2	Tube	–
	621344242921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 621344242921_1 (rev1).pdf \| 233.3 KB IGS Download_IGES_621344242921 (rev1).iges \| 3.9 MB STP 621344242921 (rev1).stp \| 945.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	44	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–

	Order Code	Datasheet
	621004242921	SPEC
	621304242921	SPEC
	621006242921	SPEC
	621306242921	SPEC
	621008242921	SPEC
	621308242921	SPEC
	621010242921	SPEC
	621310242921	SPEC
	621014242921	SPEC
	621314242921	SPEC
	621016242921	SPEC
	621316242921	SPEC
	621020242921	SPEC
	621320242921	SPEC
	621024242921	SPEC
	621324242921	SPEC
	621032242921	SPEC
	621044242921	SPEC
	621344242921	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.00 mm THT Dual Pin Header

WR-PHD 2.00 mm SMT Dual Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-PHD Pin & Socket Header
