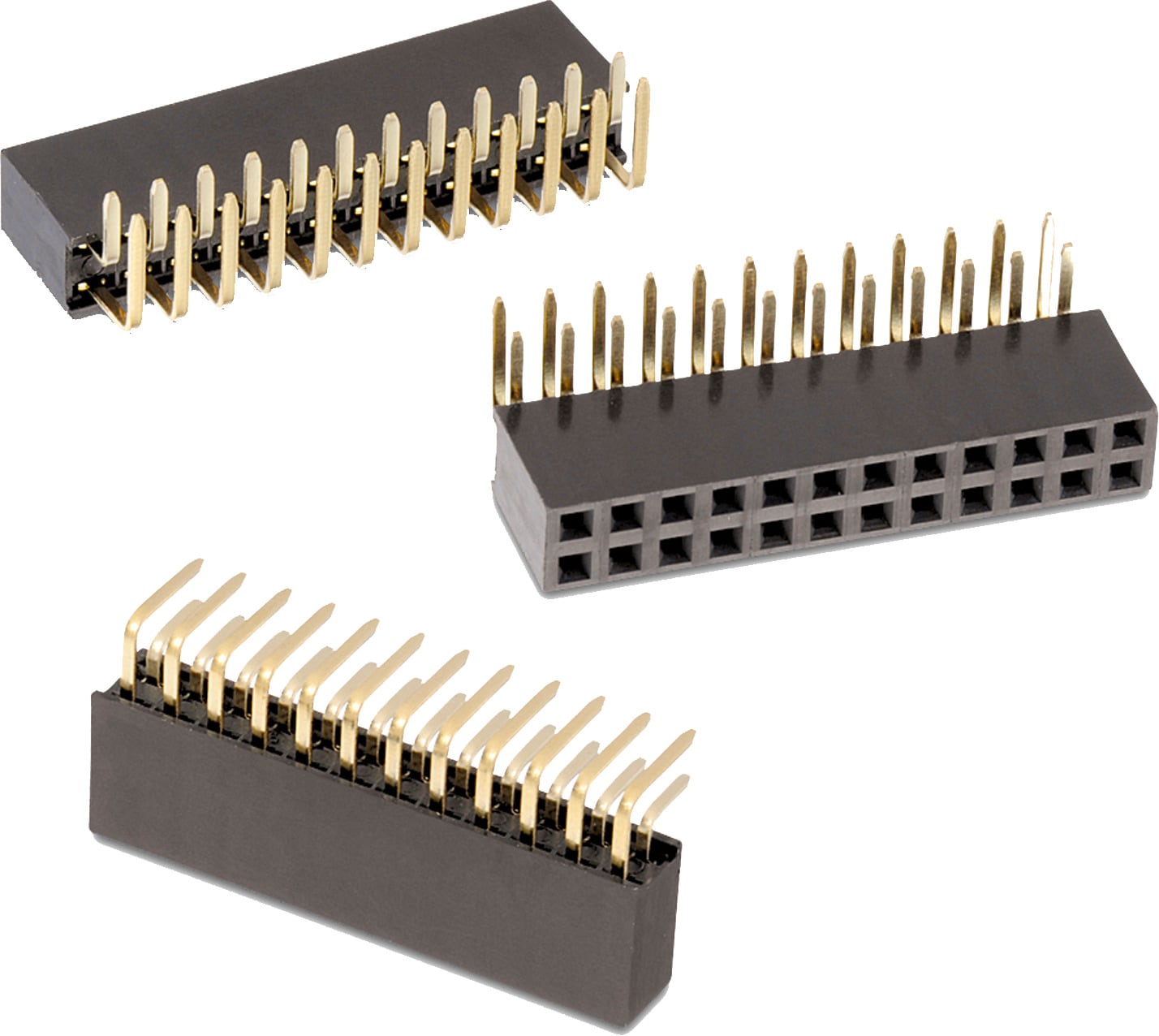

WR-PHD 2.54 mm Angled Dual Socket Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	4 pcs; 6 pcs; 8 pcs; 10 pcs; 12 pcs; 14 pcs; 16 pcs; 20 pcs; 22 pcs; 24 pcs; 26 pcs; 32 pcs; 34 pcs; 40 pcs; 64 pcs; 72 pcs

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Socket Header
Type	Angled

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.
