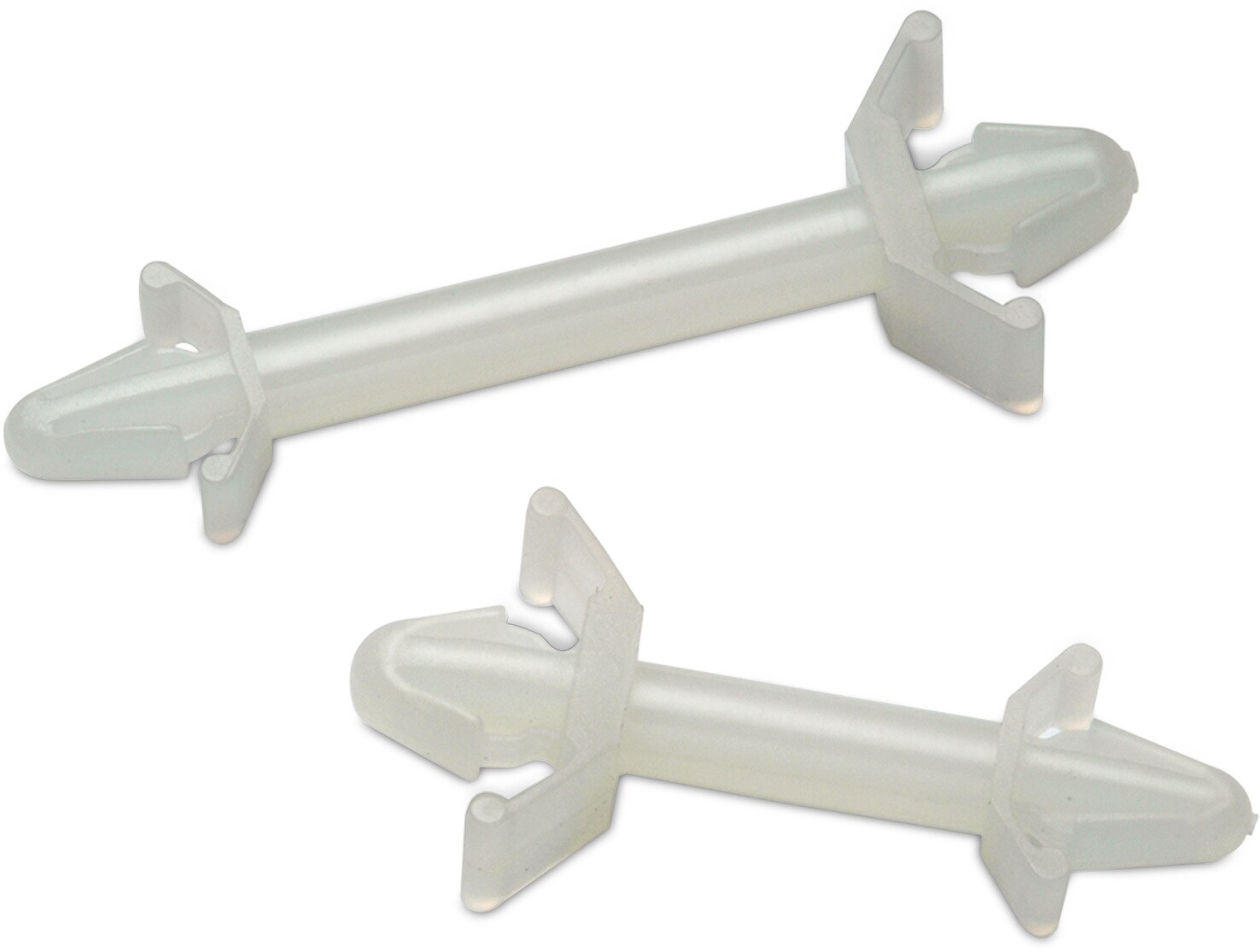

WA-SNSN Snap-In Stop Spacer Snap Locking on both ends

Applications

Spacer for circuit board assembly
No installation tool necessary

General Information
Material	PA66
Color	Natural
Flammability Rating	UL94 V-2
Operating Temperature	-30 °C up to +85 °C
t _min	0.8 mm

Products

Order Code	Datasheet	Downloads	Status	L (mm)	f (mm)	Design Kit	Board
709616200	SPEC	3 files CAD files ZIP 3D 3D_709616200 (rev1).pdf \| 111.8 KB IGS Downloads_IGS_709616200 (rev1).igs \| 953.7 KB STP Downloads_STEP_709616200 (rev1).stp \| 373.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.6	4.8	700999	–
709610200	SPEC	3 files CAD files ZIP 3D 3D_709610200 (rev1).pdf \| 85.8 KB IGS Downloads_IGS_709610200 (rev1).igs \| 821.5 KB STP Downloads_STEP_709610200 (rev1).stp \| 359.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.74	4	700999	–
709613200	SPEC	3 files CAD files ZIP 3D 3D_709613200 (rev1).pdf \| 92.4 KB IGS Downloads_IGS_709613200 (rev1).igs \| 849.5 KB STP Downloads_STEP_709613200 (rev1).stp \| 363.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.8	4.8	–	–
709616400	SPEC	3 files CAD files ZIP 3D 3D_709616400 (rev1).pdf \| 110.1 KB IGS Downloads_IGS_709616400 (rev1).igs \| 956.7 KB STP Downloads_STEP_709616400 (rev1).stp \| 373.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.3	4.8	–	–
709610400	SPEC	3 files CAD files ZIP 3D 3D_709610400 (rev1).pdf \| 92.3 KB IGS Downloads_IGS_709610400 (rev1).igs \| 908.3 KB STP Downloads_STEP_709610400 (rev1).stp \| 392.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.35	4	–	–
709613400	SPEC	3 files CAD files ZIP 3D 3D_709613400 (rev1).pdf \| 96.8 KB IGS Downloads_IGS_709613400 (rev1).igs \| 937 KB STP Downloads_STEP_709613400 (rev1).stp \| 396.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.4	4.8	–	–
709610500	SPEC	3 files CAD files ZIP 3D 3D_709610500 (rev1).pdf \| 89.4 KB IGS Downloads_IGS_709610500 (rev1).igs \| 908.7 KB STP Downloads_STEP_709610500 (rev1).stp \| 392.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.9	4	–	–
709616600	SPEC	3 files CAD files ZIP 3D 3D_709616600 (rev1).pdf \| 110.5 KB IGS Download_IGS_709616600 (rev1).igs \| 955.4 KB STP Download_STP_709616600 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	4	–	700990
709616800	SPEC	3 files CAD files ZIP 3D 3D_709616800 (rev1).pdf \| 109.2 KB IGS Download_IGS_709616800 (rev1).igs \| 957.3 KB STP Download_STP_709616800 (rev1).stp \| 185.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.2	4	700999	–
709613600	SPEC	3 files CAD files ZIP 3D 3D_709613600 (rev1).pdf \| 97.2 KB IGS Downloads_IGS_709613600 (rev1).igs \| 936.6 KB STP Downloads_STEP_709613600 (rev1).stp \| 396.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	4.8	700999	700990
709610600	SPEC	3 files CAD files ZIP 3D 3D_709610600 (rev1).pdf \| 87.8 KB IGS Downloads_IGS_709610600 (rev1).igs \| 906.1 KB STP Downloads_STEP_709610600 (rev1).stp \| 392.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.52	4	–	700990
709617000	SPEC	3 files CAD files ZIP 3D 3D_709617000 (rev1).pdf \| 100.1 KB IGS Download_IGS_709617000 (rev1).igs \| 959.7 KB STP Download_STP_709617000 (rev1).stp \| 187 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12.5	4	–	–
709610800	SPEC	3 files CAD files ZIP 3D 3D_709610800 (rev1).pdf \| 86.5 KB IGS Downloads_IGS_709610800 (rev1).igs \| 906.5 KB STP Downloads_STEP_709610800 (rev1).stp \| 392.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12.7	4	–	–
709613800	SPEC	3 files CAD files ZIP 3D 3D_709613800 (rev1).pdf \| 93.7 KB IGS Downloads_IGS_709613800 (rev1).igs \| 935.2 KB STP Downloads_STEP_709613800 (rev1).stp \| 396.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12.7	4.8	700999	–
709617200	SPEC	3 files CAD files ZIP 3D 3D_709617200 (rev1).pdf \| 104.7 KB IGS Downloads_IGS_709617200 (rev1).igs \| 959.8 KB STP Downloads_STEP_709617200 (rev1).stp \| 373.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15.7	4	700999	–
709611000	SPEC	3 files CAD files ZIP 3D 3D_709611000 (rev1).pdf \| 83.9 KB IGS Downloads_IGS_709611000 (rev1).igs \| 906.8 KB STP Downloads_STEP_709611000 (rev1).stp \| 392.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15.87	4	–	–
709614000	SPEC	3 files CAD files ZIP 3D 3D_709614000 (rev1).pdf \| 93.4 KB IGS Downloads_IGS_709614000 (rev1).igs \| 936.2 KB STP Downloads_STEP_709614000 (rev1).stp \| 396.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15.9	4.8	–	–
709617400	SPEC	3 files CAD files ZIP 3D 3D_709617400 (rev1).pdf \| 103.2 KB IGS Downloads_IGS_709617400 (rev1).igs \| 959.1 KB STP Downloads_STEP_709617400 (rev1).stp \| 373.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	19	4	–	700990
709611200	SPEC	3 files CAD files ZIP 3D 3D_709611200 (rev1).pdf \| 83.8 KB IGS Downloads_IGS_709611200 (rev1).igs \| 906.3 KB STP Downloads_STEP_709611200 (rev1).stp \| 392.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	19.05	4	–	–
709614200	SPEC	3 files CAD files ZIP 3D 3D_709614200 (rev1).pdf \| 92.7 KB IGS Downloads_IGS_709614200 (rev1).igs \| 936.6 KB STP Downloads_STEP_709614200 (rev1).stp \| 396.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	19.1	4.8	–	–
709617600	SPEC	3 files CAD files ZIP 3D 3D_709617600 (rev1).pdf \| 101 KB IGS Download_IGS_709617600 (rev1).igs \| 958.9 KB STP Download_STP_709617600 (rev1).stp \| 185.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	4	–	–
709614400	SPEC	3 files CAD files ZIP 3D 3D_709614400 (rev1).pdf \| 88.5 KB IGS Downloads_IGS_709614400 (rev1).igs \| 936.9 KB STP Downloads_STEP_709614400 (rev1).stp \| 396.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22.2	4.8	700999	–
709611400	SPEC	3 files CAD files ZIP 3D 3D_709611400 (rev1).pdf \| 85.8 KB IGS Downloads_IGS_709611400 (rev1).igs \| 907.9 KB STP Downloads_STEP_709611400 (rev1).stp \| 392.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22.22	4	–	–
709617800	SPEC	3 files CAD files ZIP 3D 3D_709617800 (rev1).pdf \| 98.9 KB IGS Downloads_IGS_709617800 (rev1).igs \| 959.3 KB STP Downloads_STEP_709617800 (rev1).stp \| 373.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	25.4	4	–	–
709618000	SPEC	3 files CAD files ZIP 3D 3D_709618000 (rev1).pdf \| 97.9 KB IGS Download_IGS_709618000 (rev1).igs \| 959.3 KB STP Download_STP_709618000 (rev1).stp \| 185.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	28.6	4	700999	–
