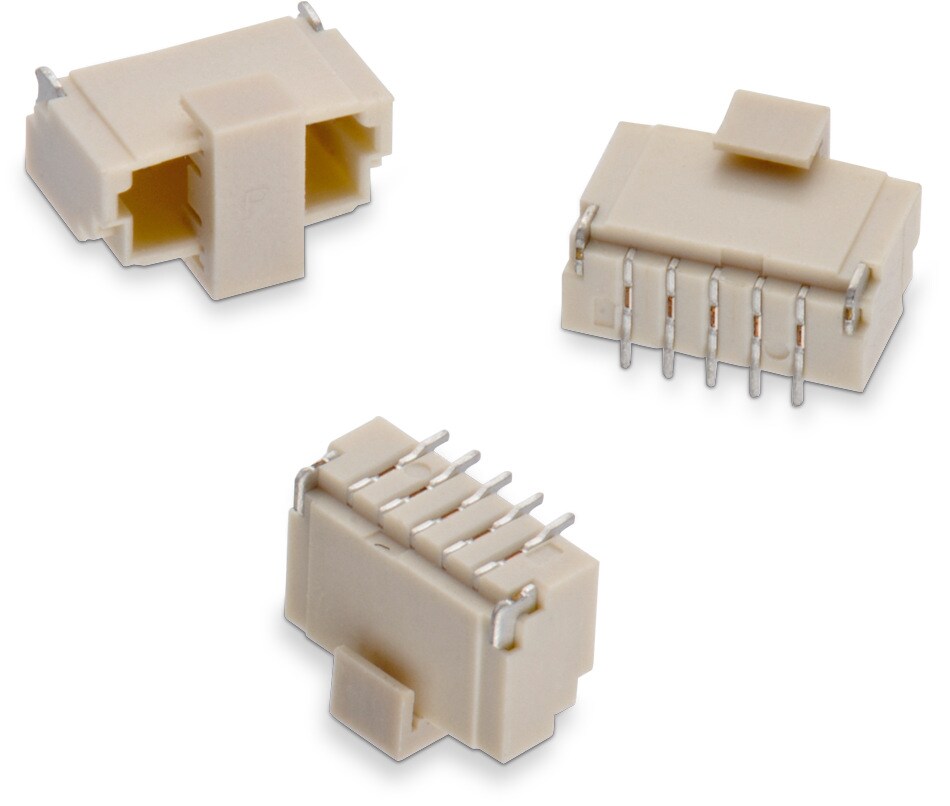

WR-WTB 1.00 mm SMT Male Vertical Shrouded Header

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Color	Beige
Contact Material	Phosphor Bronze
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
I_R	1 A
Working Voltage	50 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	100 MΩ
Pitch	1 mm
Gender	Male
Type	Vertical

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
	665302124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_665302124022 (rev1).pdf \| 51.5 KB IGS Download_IGES_665302124022 (rev1).iges \| 768.4 KB STP 665302124022 (rev1).stp \| 178 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	1	Male	Vertical	SMT	1	50	PCB	20	max.	4	Tape and Reel with Cap	645001
	665303124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_665303124022 (rev1).pdf \| 78.2 KB IGS Download_IGES_665303124022 (rev1).iges \| 1.1 MB STP 665303124022 (rev1).stp \| 263.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	1	Male	Vertical	SMT	1	50	PCB	20	max.	5	Tape and Reel with Cap	645001
	665304124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_665304124022 (rev1).pdf \| 81.8 KB IGS Download_IGES_665304124022 (rev1).iges \| 1.2 MB STP 665304124022 (rev1).stp \| 281.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1	Male	Vertical	SMT	1	50	PCB	20	max.	6	Tape and Reel with Cap	645001
	665305124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_665305124022 (rev1).pdf \| 86.4 KB IGS Download_IGES_665305124022 (rev1).iges \| 1.3 MB STP 665305124022 (rev1).stp \| 300.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	1	Male	Vertical	SMT	1	50	PCB	20	max.	7	Tape and Reel with Cap	645001
	665306124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_665306124022 (rev1).pdf \| 91 KB IGS Download_IGES_665306124022 (rev1).iges \| 1.4 MB STP 665306124022 (rev1).stp \| 319.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1	Male	Vertical	SMT	1	50	PCB	20	max.	8	Tape and Reel with Cap	645001
	665308124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_665308124022 (rev1).pdf \| 100.2 KB IGS Download_IGES_665308124022 (rev1).iges \| 1.5 MB STP 665308124022 (rev1).stp \| 358.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1	Male	Vertical	SMT	1	50	PCB	20	max.	10	Tape and Reel with Cap	645001
	665310124022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_665310124022 (rev1).pdf \| 109.2 KB IGS Download_IGES_665310124022 (rev1).iges \| 1.7 MB STP 665310124022 (rev1).stp \| 396.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	Male	Vertical	SMT	1	50	PCB	20	max.	12	Tape and Reel with Cap	612690 645001

	Order Code	Datasheet
	665302124022	SPEC
	665303124022	SPEC
	665304124022	SPEC
	665305124022	SPEC
	665306124022	SPEC
	665308124022	SPEC
	665310124022	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 1.00 mm Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
