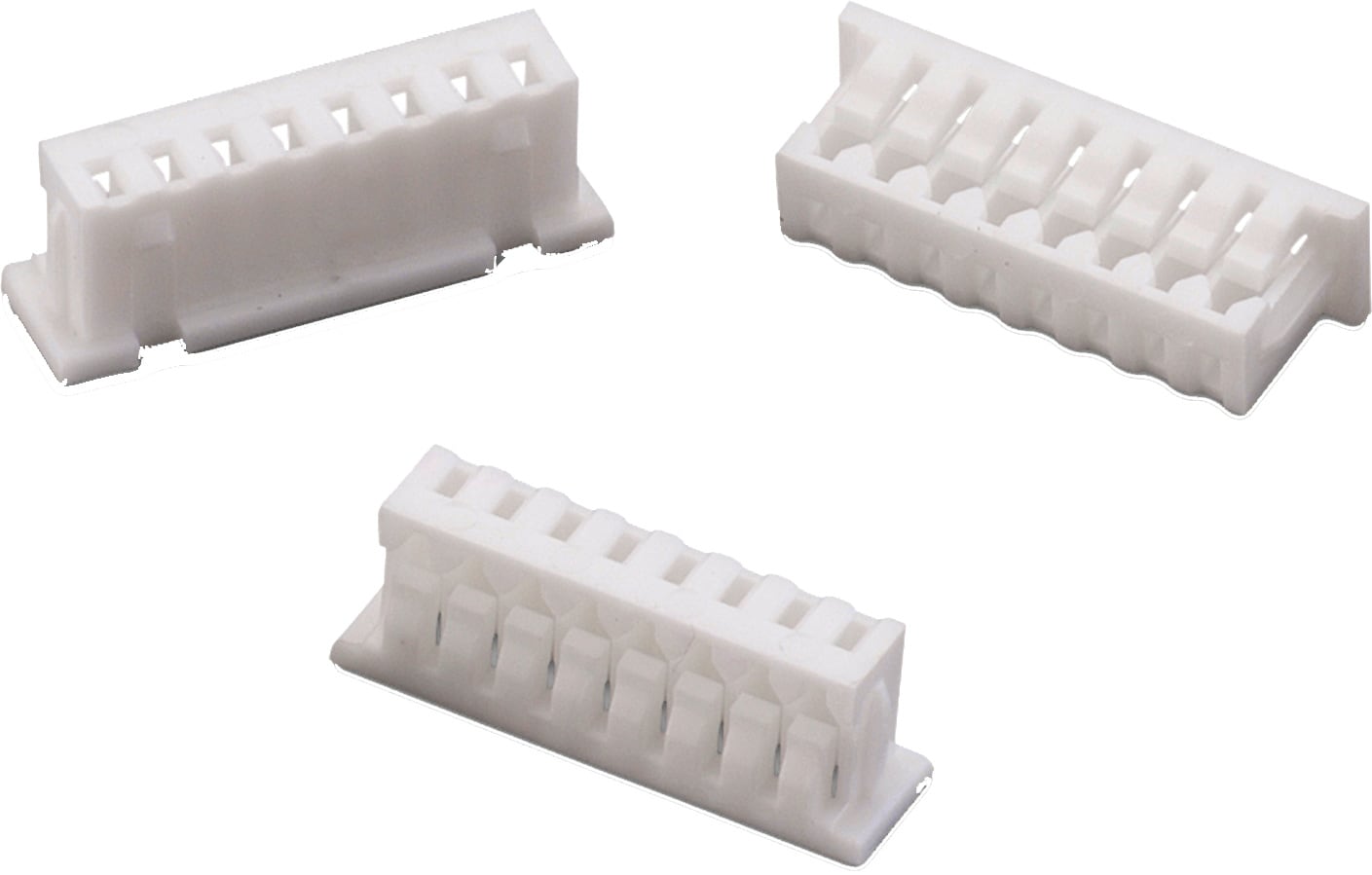

WR-WTB Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	White

General Information
Operating Temperature	-40 °C up to +85 °C
Compliance	RoHS
Withstanding Voltage	250 V (AC)
R_ISO	100 MΩ
Pitch	1.25 mm
Gender	Female
Type	Terminal Housing

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
653002113322	SPEC	3 files CAD files ZIP 3D 653002113322 (rev1).pdf \| 41.3 KB IGS Download_IGES_653002113322 (rev1).iges \| 647.4 KB STP 653002113322 (rev1).stp \| 147.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	1.25	Female	Terminal Housing	Cable	4.25	Bag	645001
653003113322	SPEC	3 files CAD files ZIP 3D 653003113322 (rev1).pdf \| 52.1 KB IGS Download_IGES_653003113322 (rev1).iges \| 870.1 KB STP 653003113322 (rev1).stp \| 197.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	1.25	Female	Terminal Housing	Cable	5.5	Bag	645001
653004113322	SPEC	3 files CAD files ZIP 3D 653004113322 (rev1).pdf \| 65.5 KB IGS Download_IGES_653004113322 (rev1).iges \| 1.1 MB STP 653004113322 (rev1).stp \| 257.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1.25	Female	Terminal Housing	Cable	6.75	Bag	645001
653005113322	SPEC	3 files CAD files ZIP 3D 653005113322 (rev1).pdf \| 76.8 KB IGS Download_IGES_653005113322 (rev1).iges \| 1.3 MB STP 653005113322 (rev1).stp \| 309.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	1.25	Female	Terminal Housing	Cable	8	Bag	645001
653006113322	SPEC	3 files CAD files ZIP 3D 653006113322 (rev1).pdf \| 89.1 KB IGS Download_IGES_653006113322 (rev1).iges \| 1.6 MB STP 653006113322 (rev1).stp \| 361 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1.25	Female	Terminal Housing	Cable	9.25	Bag	645001
653007113322	SPEC	3 files CAD files ZIP 3D 653007113322 (rev1).pdf \| 100.3 KB IGS Download_IGES_653007113322 (rev1).iges \| 1.8 MB STP 653007113322 (rev1).stp \| 408.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	1.25	Female	Terminal Housing	Cable	10.5	Bag	645001
653008113322	SPEC	3 files CAD files ZIP 3D 653008113322 (rev1).pdf \| 111.5 KB IGS Download_IGES_653008113322 (rev1).iges \| 2 MB STP 653008113322 (rev1).stp \| 464.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1.25	Female	Terminal Housing	Cable	11.75	Bag	645001
653009113322	SPEC	3 files CAD files ZIP 3D 653009113322 (rev1).pdf \| 122.8 KB IGS Download_IGES_653009113322 (rev1).iges \| 2.2 MB STP 653009113322 (rev1).stp \| 517.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	1.25	Female	Terminal Housing	Cable	13	Bag	645001
653010113322	SPEC	3 files CAD files ZIP 3D 653010113322 (rev1).pdf \| 133.8 KB IGS Download_IGES_653010113322 (rev1).iges \| 2.5 MB STP 653010113322 (rev1).stp \| 572.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.25	Female	Terminal Housing	Cable	14.25	Bag	612690 645001
653011113322	SPEC	3 files CAD files ZIP 3D 653011113322 (rev1).pdf \| 145.1 KB IGS Download_IGES_653011113322 (rev1).iges \| 2.7 MB STP 653011113322 (rev1).stp \| 619.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	1.25	Female	Terminal Housing	Cable	15.5	Bag	645001
653012113322	SPEC	3 files CAD files ZIP 3D 653012113322 (rev1).pdf \| 156.4 KB IGS Download_IGES_653012113322 (rev1).iges \| 2.9 MB STP 653012113322 (rev1).stp \| 680.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.25	Female	Terminal Housing	Cable	16.75	Bag	645001
653013113322	SPEC	3 files CAD files ZIP 3D 653013113322 (rev1).pdf \| 167.8 KB IGS Download_IGES_653013113322 (rev1).iges \| 3.1 MB STP 653013113322 (rev1).stp \| 726.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	1.25	Female	Terminal Housing	Cable	18	Bag	645001
653014113322	SPEC	3 files CAD files ZIP 3D 653014113322 (rev1).pdf \| 179.2 KB IGS Download_IGES_653014113322 (rev1).iges \| 3.4 MB STP 653014113322 (rev1).stp \| 783.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1.25	Female	Terminal Housing	Cable	19.25	Bag	645001
653015113322	SPEC	3 files CAD files ZIP 3D 653015113322 (rev1).pdf \| 190.5 KB IGS Download_IGES_653015113322 (rev1).iges \| 3.6 MB STP 653015113322 (rev1).stp \| 832.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	1.25	Female	Terminal Housing	Cable	20.5	Bag	645001
