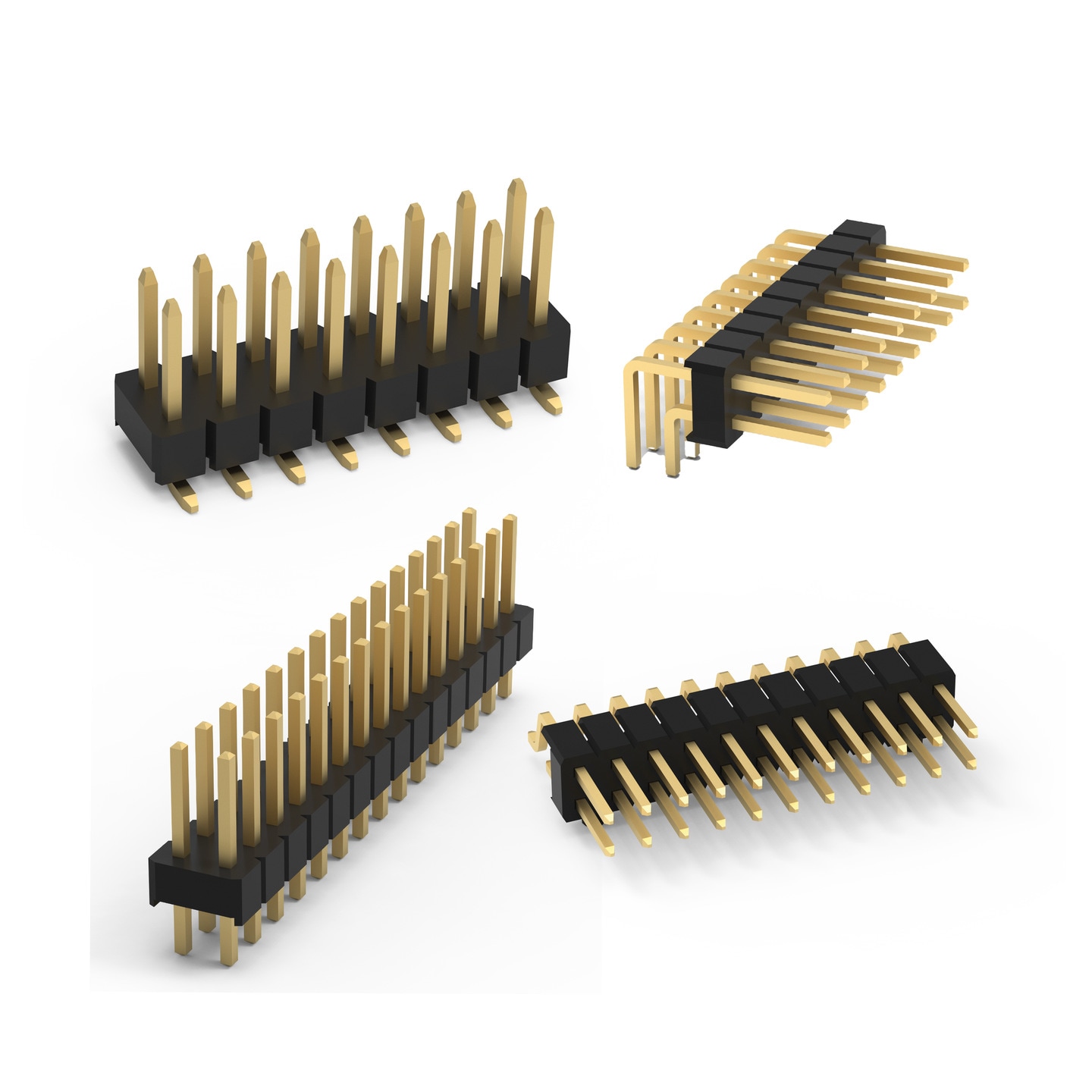

WR-PHD 2.54 mm SMT Dual Pin Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4; 6; 8; 10; 12; 14; 16; 20; 22; 24; 26; 32; 34; 36

Material Properties
Insulator Material	Nylon 6T; PA6T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Pin Header
Type	Straight

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap; Tube

Products

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit
61000421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61000421121_1 (rev1).pdf \| 27.2 KB IGS 61000421121 (rev1).iges \| 324.9 KB STP 61000421121 (rev1).stp \| 76.7 KB	4	Dual	Pin Header	Straight	3	Tube	–
61030421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61030421121_1 (rev1).pdf \| 25.7 KB IGS 61030421121 (rev1).igs \| 324.8 KB STP 61030421121 (rev1).stp \| 132.8 KB	4	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61000621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61000621121_1 (rev1).pdf \| 36.7 KB IGS 61000621121 (rev1).iges \| 451.9 KB STP 61000621121 (rev1).stp \| 102.5 KB	6	Dual	Pin Header	Straight	3	Tube	–
61030621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61030621121_1 (rev1).pdf \| 35.2 KB IGS 61030621121 (rev1).igs \| 451.8 KB STP 61030621121 (rev1).stp \| 176.7 KB	6	Dual	Pin Header	Straight	3	Tape and Reel with Cap	613001
61000821121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61000821121_1 (rev1).pdf \| 40.6 KB IGS 61000821121 (rev1).iges \| 566.3 KB STP 61000821121 (rev1).stp \| 127.8 KB	8	Dual	Pin Header	Straight	3	Tube	–
61030821121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61030821121_1 (rev1).pdf \| 39.1 KB IGS 61030821121 (rev1).igs \| 566.2 KB STP 61030821121 (rev1).stp \| 220.6 KB	8	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61031021121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61031021121_1 (rev1).pdf \| 45 KB IGS 61031021121 (rev1).igs \| 680.8 KB STP 61031021121 (rev1).stp \| 264.5 KB	10	Dual	Pin Header	Straight	3	Tape and Reel with Cap	613001
61001021121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61001021121_1 (rev1).pdf \| 46.5 KB IGS 61001021121 (rev1).iges \| 680.9 KB STP 61001021121 (rev1).stp \| 153.2 KB	10	Dual	Pin Header	Straight	3	Tube	–
61001221121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61001221121_1 (rev1).pdf \| 52.5 KB IGS 61001221121 (rev1).iges \| 795.5 KB STP 61001221121 (rev1).stp \| 179.1 KB	12	Dual	Pin Header	Straight	3	Tube	–
61031221121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61031221121_1 (rev1).pdf \| 50.9 KB IGS 61031221121 (rev1).igs \| 795.4 KB STP 61031221121 (rev1).stp \| 308.5 KB	12	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61031421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61031421121_1 (rev1).pdf \| 56.9 KB IGS 61031421121 (rev1).igs \| 909.9 KB STP 61031421121 (rev1).stp \| 352.3 KB	14	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61001421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61001421121_1 (rev1).pdf \| 58.4 KB IGS 61001421121 (rev1).iges \| 910 KB STP 61001421121 (rev1).stp \| 204.3 KB	14	Dual	Pin Header	Straight	3	Tube	–
61001621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61001621121_1 (rev1).pdf \| 64.4 KB IGS 61001621121 (rev1).iges \| 1 MB STP 61001621121 (rev1).stp \| 230.6 KB	16	Dual	Pin Header	Straight	3	Tube	613001
61031621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61031621121_1 (rev1).pdf \| 62.9 KB IGS 61031621121 (rev1).igs \| 1 MB STP 61031621121 (rev1).stp \| 396.3 KB	16	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61002021121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61002021121_1 (rev1).pdf \| 76.2 KB IGS 61002021121 (rev1).iges \| 1.2 MB STP 61002021121 (rev1).stp \| 282.4 KB	20	Dual	Pin Header	Straight	3	Tube	–
61032021121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61032021121_1 (rev1).pdf \| 74.7 KB IGS 61032021121 (rev1).igs \| 1.2 MB STP 61032021121 (rev1).stp \| 484.1 KB	20	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61002221121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61002221121_1 (rev1).pdf \| 82.3 KB IGS 61002221121 (rev1).iges \| 1.3 MB STP 61002221121 (rev1).stp \| 307.7 KB	22	Dual	Pin Header	Straight	3	Tube	–
61002421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61002421121_1 (rev1).pdf \| 88.3 KB IGS 61002421121 (rev1).iges \| 1.5 MB STP 61002421121 (rev1).stp \| 333.5 KB	24	Dual	Pin Header	Straight	3	Tube	–
61002621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61002621121_1 (rev1).pdf \| 94.4 KB IGS 61002621121 (rev1).iges \| 1.6 MB STP 61002621121 (rev1).stp \| 358.8 KB	26	Dual	Pin Header	Straight	3	Tube	–
61003221121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61003221121_1 (rev1).pdf \| 112.6 KB IGS 61003221121 (rev1).iges \| 1.9 MB STP 61003221121 (rev1).stp \| 436.7 KB	32	Dual	Pin Header	Straight	3	Tube	–
61003421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61003421121_1 (rev1).pdf \| 118.5 KB IGS 61003421121 (rev1).iges \| 2 MB STP 61003421121 (rev1).stp \| 464.8 KB	34	Dual	Pin Header	Straight	3	Tube	–
61003621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61003621121_1 (rev1).pdf \| 124.6 KB IGS 61003621121 (rev1).iges \| 2.1 MB STP 61003621121 (rev1).stp \| 489.2 KB	36	Dual	Pin Header	Straight	3	Tube	–

Order Code	Datasheet
61000421121	SPEC
61030421121	SPEC
61000621121	SPEC
61030621121	SPEC
61000821121	SPEC
61030821121	SPEC
61031021121	SPEC
61001021121	SPEC
61001221121	SPEC
61031221121	SPEC
61031421121	SPEC
61001421121	SPEC
61001621121	SPEC
61031621121	SPEC
61002021121	SPEC
61032021121	SPEC
61002221121	SPEC
61002421121	SPEC
61002621121	SPEC
61003221121	SPEC
61003421121	SPEC
61003621121	SPEC
