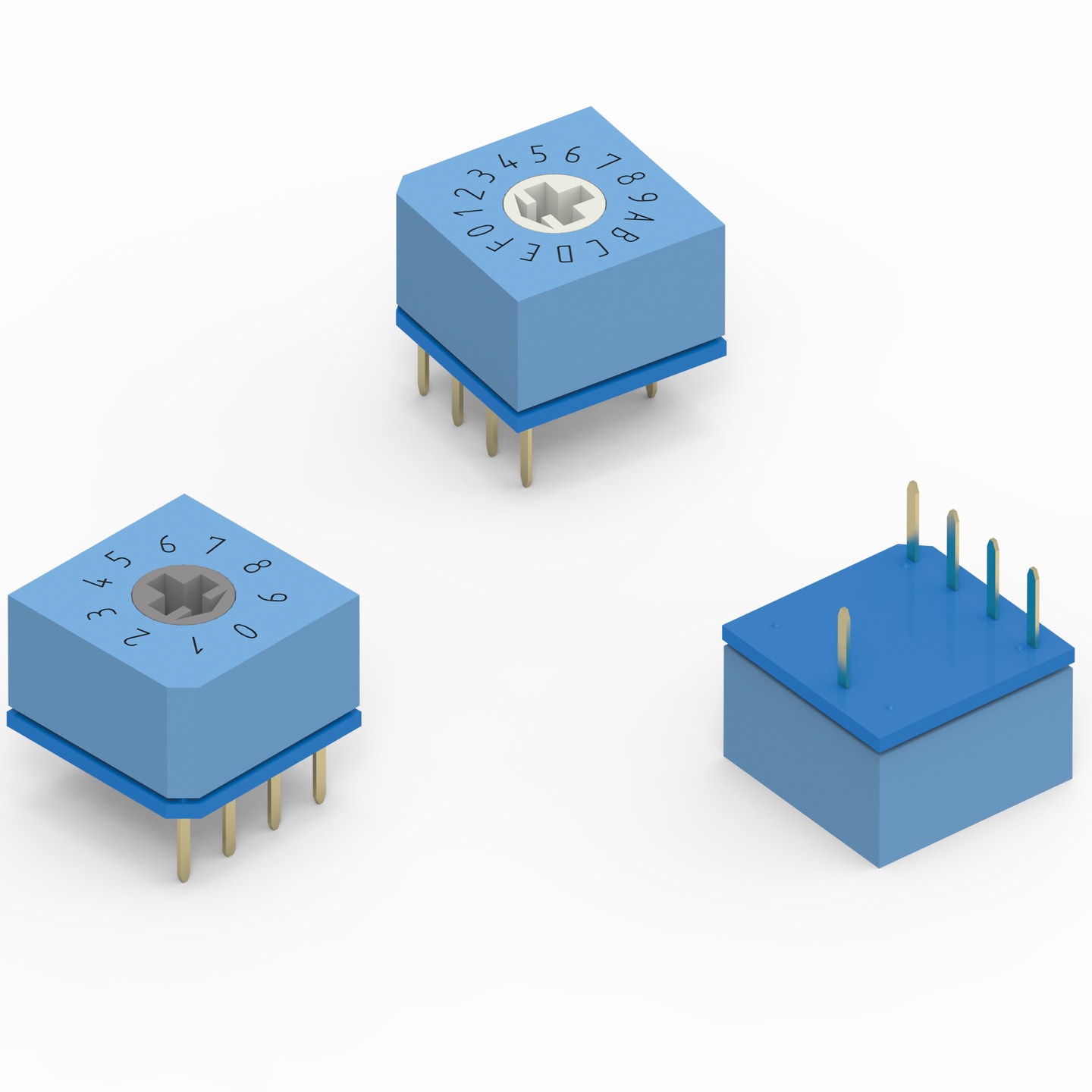

WS-ROTV THT IP67 Rotary Switch 4x1 Terminal with Cross Type Actuator 10x10 mm

Material Properties
Cover Material	PA66
Cover Flammability Rating	UL94 V-0
Base Material	PA66
Base Flammability Rating	UL94 V-0
Actuator Material	POM
Actuator Flammability Rating	UL94 HB
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
I_R	200 mA
V_R	42 V (DC)
Contact Resistance Initial	80 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	10000 Steps
Actuator Type	Cross Type

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	IP67

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Number of Position (Value)	Code	Ingress Protection Code	Actuator Color
428517510910	10, Real Code, IP67	Downloads7 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB KIC KiCad_WS-ROTV (rev25b).zip \| 4.9 MB CAD files ZIP 3D 3D_WS-ROTV_428517510910 (rev1).pdf \| 141.2 KB IGS IGS_WS-ROTV_428517510910 (rev1).igs \| 1.2 MB STP STP_WS-ROTV_428517510910 (rev1).stp \| 351.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position10	CodeReal Code	Ingress Protection CodeIP67	Actuator ColorDark Grey
428517510911	10, Complement Code, IP67	Downloads7 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB KIC KiCad_WS-ROTV (rev25b).zip \| 4.9 MB CAD files ZIP 3D 3D_WS-ROTV_428517510911 (rev1).pdf \| 141.2 KB IGS IGS_WS-ROTV_428517510911 (rev1).igs \| 1.2 MB STP STP_WS-ROTV_428517510911 (rev1).stp \| 351.9 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position10	CodeComplement Code	Ingress Protection CodeIP67	Actuator ColorIvory
428517510916	16, Real Code, IP67	Downloads7 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB KIC KiCad_WS-ROTV (rev25b).zip \| 4.9 MB CAD files ZIP 3D 3D_WS-ROTV_428517510916 (rev1).pdf \| 187.6 KB IGS IGS_WS-ROTV_428517510916 (rev1).igs \| 1.6 MB STP STP_WS-ROTV_428517510916 (rev1).stp \| 488.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position16	CodeReal Code	Ingress Protection CodeIP67	Actuator ColorDark Grey
428517510917	16, Complement Code, IP67	Downloads7 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB KIC KiCad_WS-ROTV (rev25b).zip \| 4.9 MB CAD files ZIP 3D 3D_WS-ROTV_428517510917 (rev1).pdf \| 186.3 KB IGS IGS_WS-ROTV_428517510917 (rev1).igs \| 1.6 MB STP STP_WS-ROTV_428517510917 (rev1).stp \| 488.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Number of Position16	CodeComplement Code	Ingress Protection CodeIP67	Actuator ColorIvory

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
