REDline Power Box 6F

REDline Power Box 6F

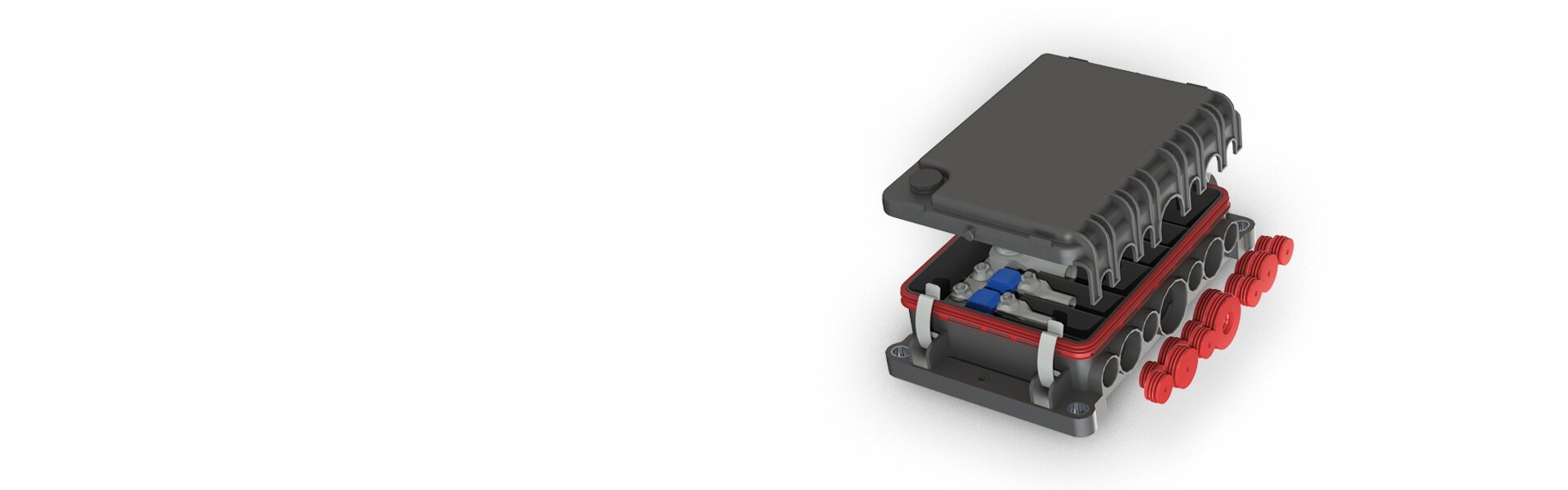

Fuse box with 6 MIDI fuses in standard housing

The REDline Power Box 6F is a primary fuse box designed for power distribution in vehicles. It can be placed first in line after the battery, as well as in a more remote location within the vehicle.

Profit from the following benefits:

  • Provides a sealed housing for up to 6 MIDI fuses (32 V and 70 V versions)
  • Suitable for placement in rough environments (e.g. engine, chassis or battery area)



Open data sheet

REDline Power Box 6F on red background with a white Tech Talk speech bubble

Data and Facts About the REDline Power Box 6F

Mechanical data

Operating temperature

-40 °C to +85 °C
IP protection class

IP66 / 69K

Dimensions

Box: 170 x 112 x 48 mm

Material

PBT GF20 V0

Electrical data

Mounting point type

Up to 4 power connections

  • 4 x M6 Powerelements
Total current Up to 250 A continuous
Output wire size

6 x M5 cable lug (up to 25 mm²) for 32 V version
6 x M6 cable lug (up to 25 mm²) for 70 V version
Blind sealing available

Input wire size 1 x M8 cable lug (up to 50 mm²) for 32 V and 70 V versions

Variants

Equipped for 12 V or 24 V applications

ICS-104010*

Equipped for 48 V applications

ICS-104011*

Housing and sealing without fuses ICS-104012**
Housing without fuses and sealings ICS-104966

* Equipped with 40 A fuses and 4 − 16 mm² cable entry seals

** Equipped with 4 − 16 mm² cable entry seals
