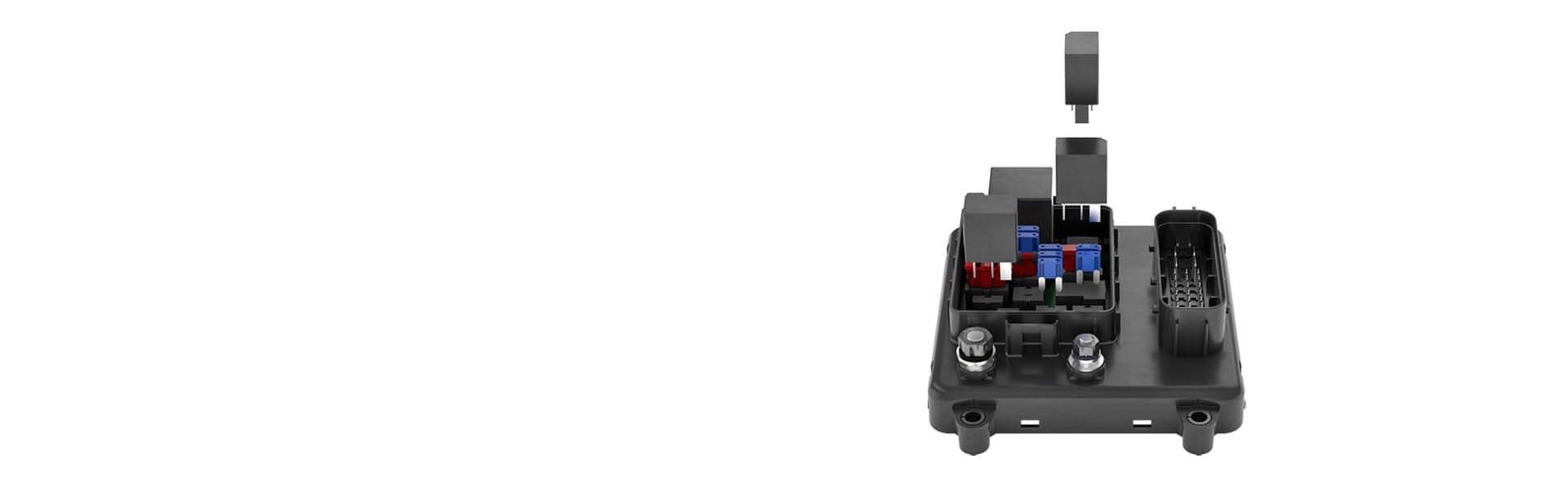

Product picture REDline Power Box Medium

REDline Power Box Medium

REDline Power Box Medium

For Power Supply, Protection and Control of Optional Functions

The REDline Power Box Medium is a compact solution for power supply, protection and control of optional functions in vehicles.

It allows you to:

  • Reduce the size of the central electrical unit
  • Reduce the complexity of the wiring harness
  • Save space in the vehicle, thanks to decentralised positioning



Open data sheet

Powerbox

Data and Facts About the REDline Power Box Medium

Mechanical data

Operating temperature

-40 °C to +85°C
IP protection class

IP64 (dust-proof / splashing protection)

Dimensions

Box: 167 x 142 x 74 mm

PCB: 80 x 70 mm

Specifics

Compression limiter

Electrical data

Power input
  • M5 Powerelement or Radlok™ 3.6
  • M6 Powerelement or Radlok™ 5.7
  • M8 Powerelement or Radlok™ 8
  • LED indicator
  • Closed input
Connectors

LeavySeal connector:

  • 31-pin: mate with TE 1-1564297-6
  • 39-pin: mate with TE 5-1718321-3
Components

Possibility to integrate following components:

  • Micro-, Power relays
  • MINI, ATO and/or MAXI-fuses

Options:

  • Cover leash
  • Fuse tester
  • Fuse puller
  • Component on lid
  • Components sticker

REDline Power Box Medium Standard

Variants

Order number WE ICS

Unequipped (without relays)

ICS-103038

Equipped with 12 V fuses and relays

ICS-103038-12V

Equipped with 24 V fuses and relays

ICS-103038-24V

Configurable REDline Power Box Medium

Your REDline Power Box Medium

Your REDline Power Box Medium

Tell us your requirements and receive a proposal including a placement suggestion within the shortest possible time.
