Product picture REDline Power Box Mini

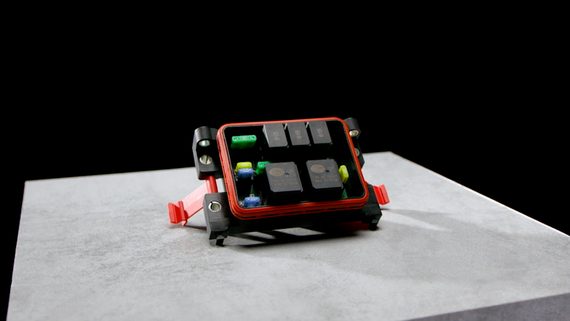

REDline Power Box Mini

REDline Power Box Mini

Ideal as an Extension to the Main Power Distribution

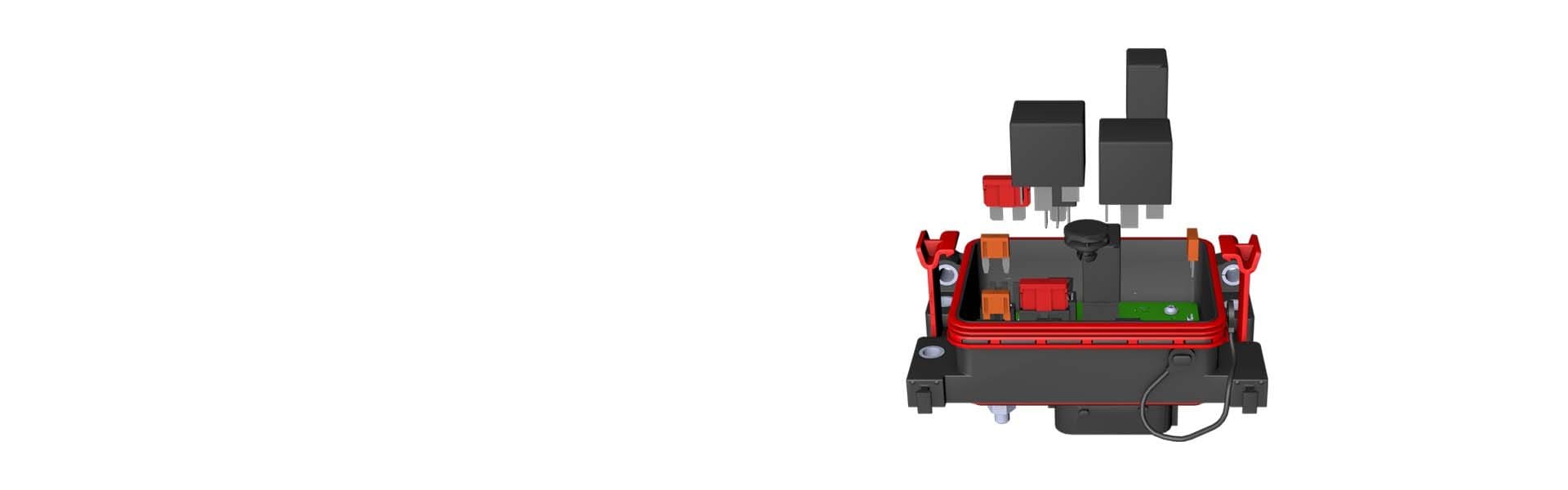

Compact size, high protection class: The REDline Power Box Mini ideally complements power distribution systems in vehicles, and can be installed almost anywhere in the vehicle.

It is equipped with:

  • A 21-pin LeavySeal connector (available in four coding versions)
  • A 68 x 91.8 mm PCB

This allows you to easily integrate optional functions in the vehicle and modularly structure the power distribution.



Open data sheet

REDline Power Box Mini on red background with white speechbubble

Data and Facts About the REDline Power Box Mini

Mechanical information

Temperature range

-40 °C bis +85°C
IP protection class

IP66 / IP69K (dust proof / protected against powerful water jets under pressure)

Dimensions

Box: 136 x 90 x 98 mm

PCB: 68 x 91.8 mm

Specifics
  • Integrated compression limiter
  • Wall mounting
  • Possibility to “dock” modules together

Electrical data

Power input
  • M5 Powerelement or Radlok or SurLok Plus 3.6
  • M6 Powerelement or Radlok or SurLok Plus 5.7
  • M8 Powerelement or Radlok or SurLok Plus™ 8
  • LED indicator
  • Closed input
Connectors

One LeavySeal connector:

  • 21-pin: available in 4 different codings

Options:

  • Cover leash
  • Fuse tester
  • Fuse puller
  • Customer logo on lid
  • Components sticker
  • Colored boxes
  • Optional pass-through seal for firewall installation

REDline Power Box Mini Standard

Variants

Order number WE ICS

Unequipped (without relays)

ICS-103039

Equipped with 12 V fuses and relays

ICS-103039-12V

Equipped with 24 V fuses and relays

ICS-103039-24V

Unequipped 48 V (without fuses and relays) ICS-103039-24V
Equipped with 48 V fuses and relays ICS-104402
Configurable REDline Power Box Mini

Your REDline Power Box Mini

Your REDline Power Box Mini

Tell us your requirements and receive a proposal including a placement suggestion within the shortest possible time.
