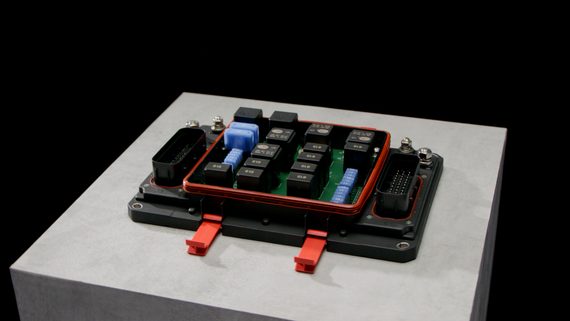

Product picture REDline Power Box Twin

REDline Power Box Twin

REDline Power Box Twin

The Ideal Main Power Distributor for Vehicle Electrics

Its size and high level of flexibility make the REDline Power Box Twin the ideal main power distributor for vehicle electrics. Individual adaptations are possible.

You will benefit from the following features:

  • A 160 x 150 mm PCB area, with the possibility of placing numerous components
  • flexible connector system
  • up to four current inputs / outputs



Open data sheet

REDline Power Box Twin on a red background with a white speech bubble

Data and Facts About the REDline Power Box Twin

Mechanical data

Operating temperature

-40 °C to +85 °C
Protection class

IP66 / IP69K (dust proof / protected against powerful water jets under pressure)

Dimensions

Box: 280 x 192 x 74 mm

PCB: 160 x 150 mm

Specifics

Oblong compression limiter

Electrical data

Power input

Up to 4 power inputs:

  • M5, SurLok Plus or Radlok 3.6
  • M6, SurLok Plus or Radlok 5.7
  • M8, SurLok Plus or Radlok 8
  • LED indicator
  • Closed input
Connectors

Two LeavySeal connectors, each available as:

  • 31-pin: mate with TE 1-1564297-6
  • 39-pin: mate with TE 5-1718321-3 or 6-1718321-3
  • 62-pin: mate with TE 2-1418883-1 or TE 1-1418883-1

Options:

  • Cover leash
  • Fuse tester
  • Fuse puller
  • Customer logo on lid
  • Components sticker


REDline Power Box Twin Standard

Variants

Order number WE ICS

Unequipped (without relays)

ICS-103040

Equipped with 12 V fuses and relays

ICS-103040-12V

Equipped with 24 V fuses and relays

ICS-103040-24V



Configurable REDline Power Box Twin

Your REDline Power Box Twin

Your REDline Power Box Twin

Tell us your requirements and receive a proposal including a placement suggestion within the shortest possible time.
