Kind Properties | |
---|---|
Durability | 5 000 Mating cycles |
Quality Class | 5 000 Mating cycles |
Connector Type | USB |
Gender | Receptacle |
Type | Horizontal |
Material Properties | |
---|---|
Insulator Material | PA9T |
Insulator Flammability Rating | UL94 V-0 |
Color | Blue |
Cover Material | Steel |
Cover Plating | Matte Tin |
Contact Material | Copper Alloy |
Contact Plating | Gold |
Contact Type | Stamped |
Shielding Material | Steel |
Shielding Plating | Matte Tin |
General Information | |
---|---|
Operating Temperature | -20 °C up to +85 °C |
Compliance | RoHS |
Electrical Properties | |
---|---|
IR | 5 A |
Working Voltage | 20 V (DC) |
Withstanding Voltage | 100 V (AC) |
Contact Resistance | 50 mΩ |
Products
Order Code | Datasheet | Downloads | Application | Interface Type | Type | Gender | Pins | Mount | IR (A) | Working Voltage (V (DC)) | Packaging | Design Kit | Samples | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

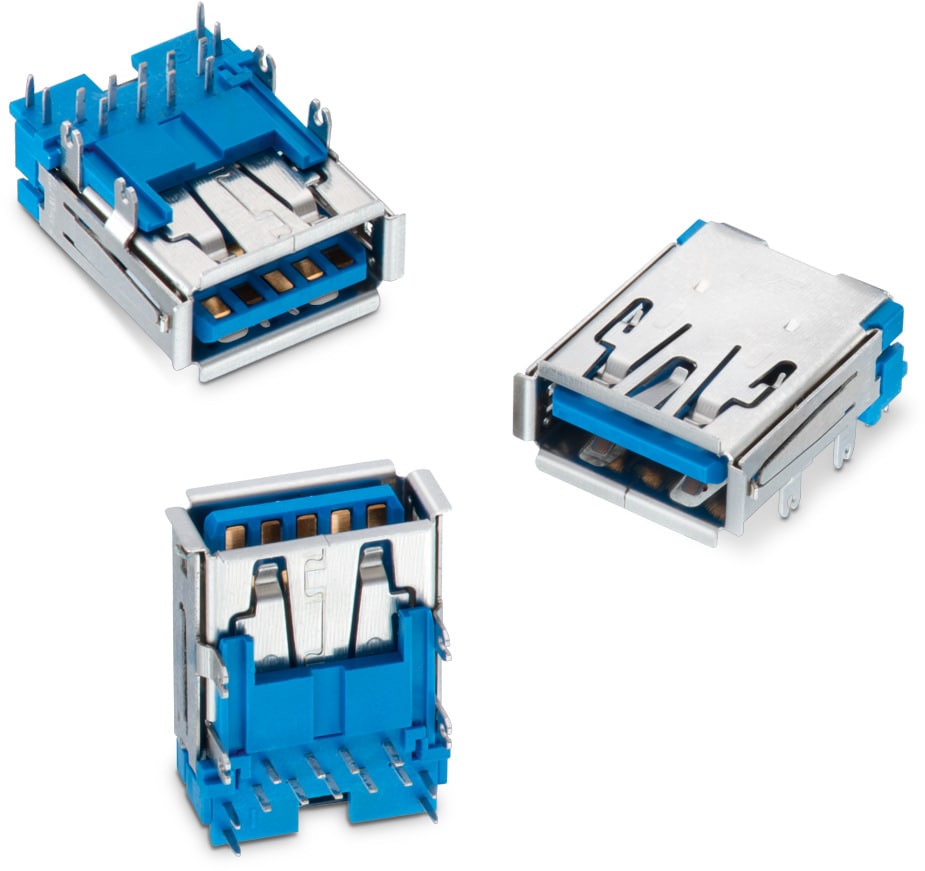

632121300001 | SPEC | 6 files | USB 3.1 | Type A | Horizontal | Receptacle | 9 | THR | 5 | 20 | Tray | 612690 614001 |
Order Code | Datasheet | |
---|---|---|
632121300001 | SPEC |
Samples |
---|
Order Code | Datasheet | Downloads | Application | Interface Type | Type | Gender | Pins | Mount | IR (A) | Working Voltage (V (DC)) | Packaging | Design Kit | Samples |
---|
