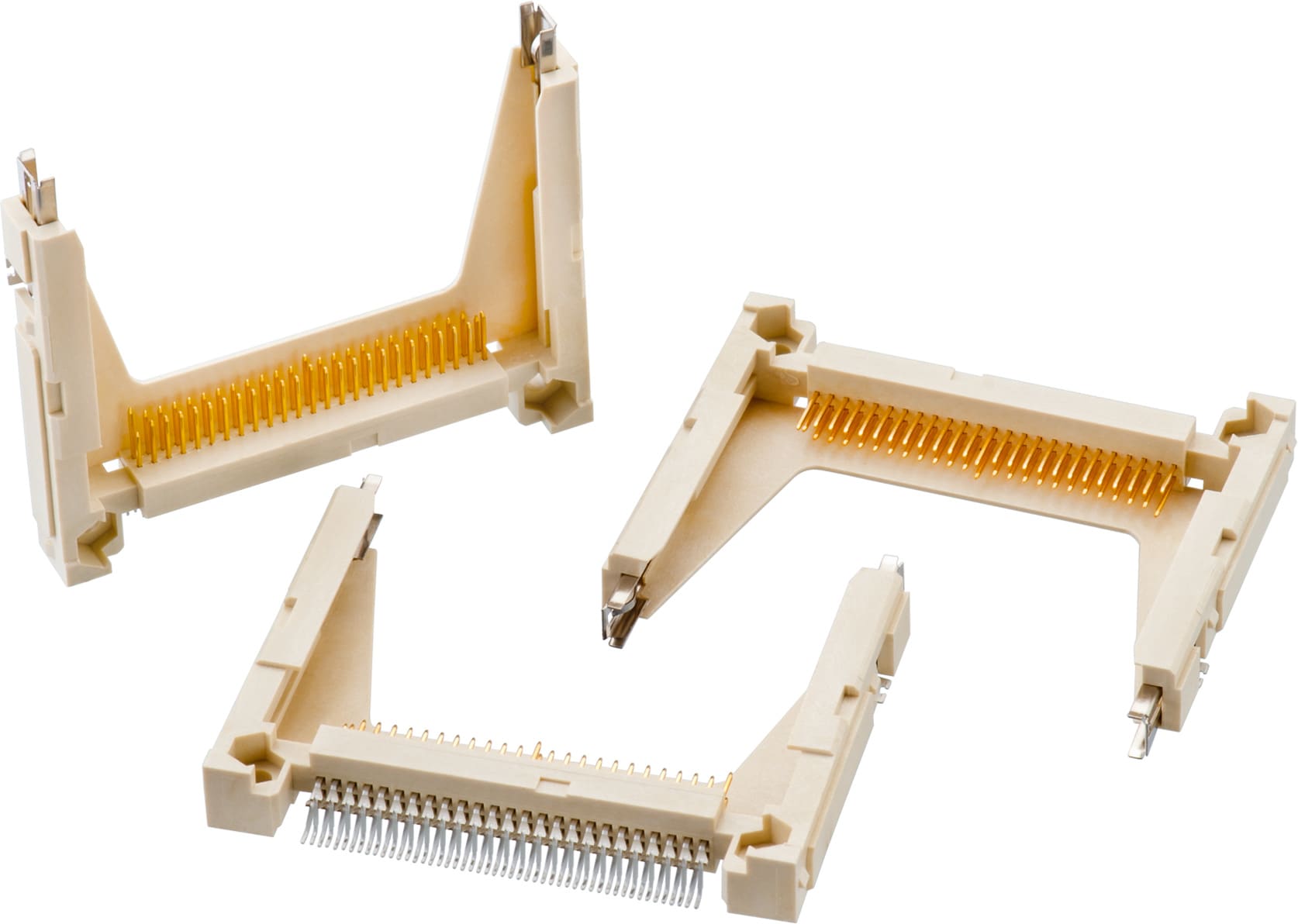

WR-CRD Compact Flash Card Connector Header 50 pins

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
Quality Class	5 000 Mating cycles
Gender	Socket
Type	Header

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Color	White
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

Electrical Properties
I_R	0.5 A
Working Voltage	50 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	50 mΩ

Products

Order Code	Datasheet	Downloads	Status	Application	Pins (Value) (pcs)	Gender	Type	Mount	Operating Temperature	Working Voltage (V (AC))	Samples
693120015011	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-CRD (rev24a).IntLib \| 5.9 MB CDS Cadence_WR-CRD (rev23a).zip \| 30.3 MB EAG Eagle_WR-CRD (rev24a).lbr \| 161 KB CAD files ZIP 3D 693120015011_1 (rev1).pdf \| 356.9 KB IGS 693120015011 (rev1).igs \| 5.5 MB STP 693120015011 (rev1).stp \| 2.2 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Compact Flash	50	Socket	Header	SMT	-25 °C up to +85 °C	50

Order Code	Datasheet
693120015011	SPEC
