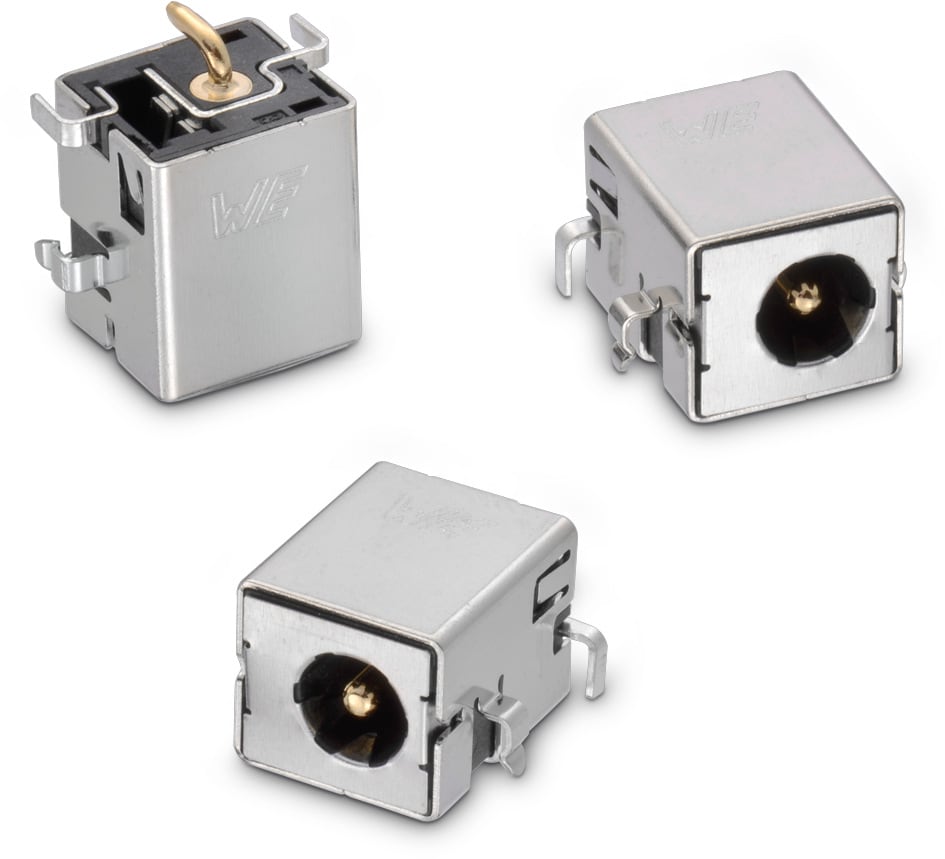

WR-DC Power Jack Right Angled Shielded THT Ø 4.93

General Information
Operating Temperature	-40 °C up to +85 °C
Type	Right Angled

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Type	Stamped
Shielding Material	Brass
Shielding Plating	Nickel (Ni)
Center Pin Plating	Gold
Tip Spring Material	Tin
Shunt Terminal Plating	Tin

Electrical Properties
Working Voltage	20 V (DC)
Withstanding Voltage	500 V (AC)
Contact Resistance	30 mΩ
R_ISO	100 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Status	Mount	Type	I_R (A)	Working Voltage (V (DC))	Packaging	Design Kit	Samples
694105309102	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-DC (rev22a).IntLib \| 1.8 MB CDS Cadence_WR-DC (rev23a).zip \| 5 MB EAG Eagle_WR-DC (rev21a).lbr \| 137.8 KB CAD files ZIP 3D 694105309102_1 (rev1).pdf \| 3.8 MB IGS 694105309102 (rev1).igs \| 4 MB STP 694105309102 (rev1).stp \| 1.5 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	THT	Right Angled	5.5	20	Tape and Reel	612690 694001

Order Code	Datasheet
694105309102	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Mount	Type	I_R (A)	Working Voltage (V (DC))	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-DCPJ Power Jacks
