| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +85 °C |
| LED | yellow-green |
| Material Properties | |
|---|---|
| Insulator Material | PA10T |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold |
| Contact Type | Stamped |
| Shielding Material | Stainless Steel |
| Electrical Properties | |
|---|---|
| Working Voltage | 125 V (AC) |
| Withstanding Voltage | 1000 V (AC) |
| Contact Resistance | 30 mΩ |
| RISO | 1000 MΩ |
| Packaging Properties | |
|---|---|
| Packaging | Tape and Reel |
Application Notes
Products
| Order Code | Datasheet | Downloads | Status | xPxC | Tab | EMI | LED | Mount | Application System | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|

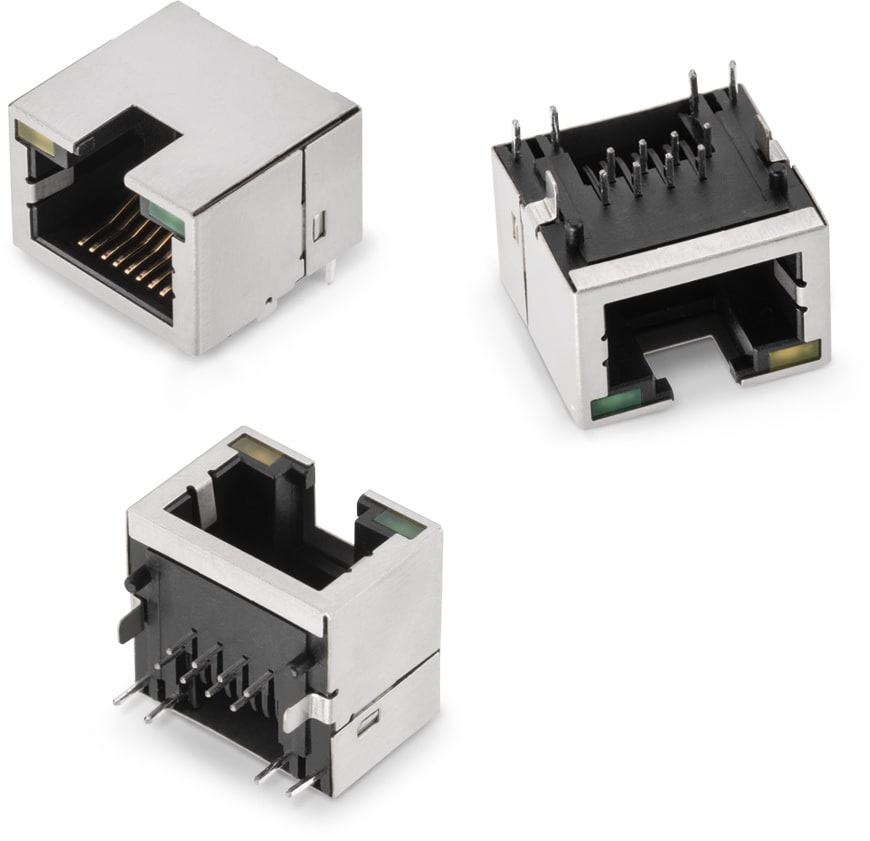

| 615008185121 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | 8P8C | Up | Yes | yellow-green | THT | CAT 3 | 615001 |
| Order Code | Datasheet |
|---|---|
| 615008185121 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | xPxC | Tab | EMI | LED | Mount | Application System | Design Kit | Samples |
|---|
