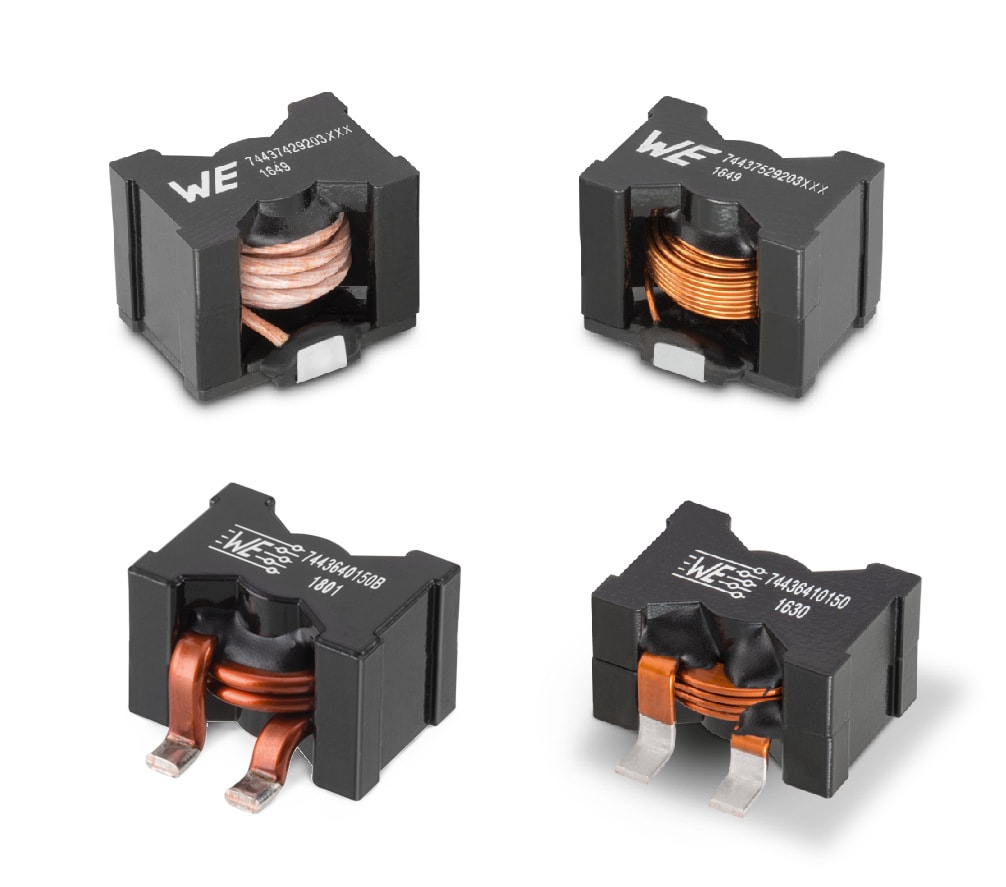

WE-HCF SMT High Current Inductor

Size	L (mm)	W (mm)	H (mm)	Material	Mount
2010	19.8	19.1	10	MnZn	SMT
2013	20.8	20.5	13.5	MnZn	SMT
2818	27	28	18.5	MnZn	SMT
2815	27	28	15.4	MnZn	SMT
2920 litz wire	25	28	20.5	MnZn	SMT
2920 round wire	25	28	20.5	MnZn	SMT

LTSpice files

LT
LTSpice_WE-HCF (rev22a).zip
|
2.9 KB

Characteristics

Saturation current up to 125 A
Flat, round and litz wire version to optimize the DC & AC losses
Inductance values ranging from 0.7 µH to 680 µH
Low core losses (MnZn)
Magnetically shielded
Litz and round wire: base for SMT mount and coplanarity
Operating temperature: -40°C to +125°C

Applications

Storage inductor for high efficiency DC/DC converters with high ripple currents
Resonant SMPS
Filter for audio applications

Application Notes

ANP032 High Power Wireless Power Transfer for the Industrial Environment
PDF
ANP047 The Behavior of Electro-Magnetic Radiation of Power Inductors in Power Management
PDF
