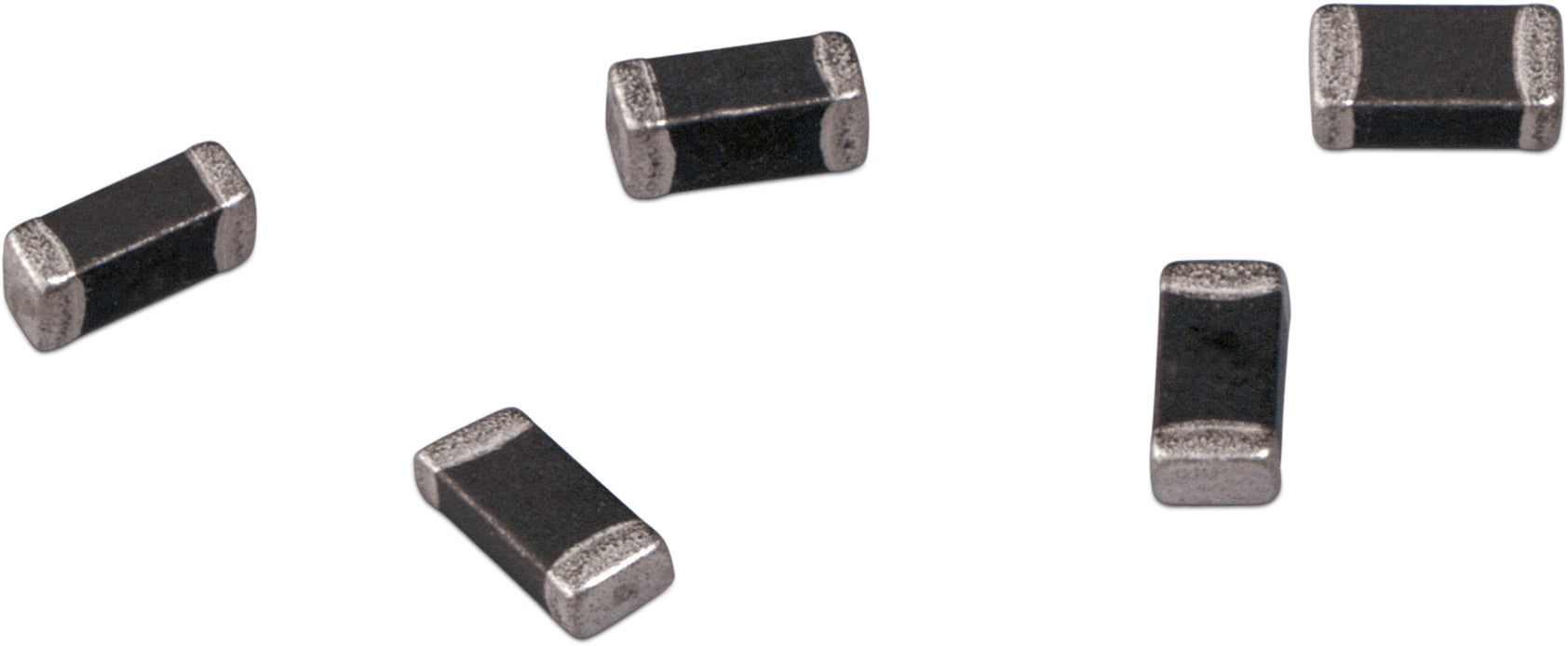

WE-MI SMT Multilayer Inductor

WE-MI SMT multilayer inductors, ideal for high packing densities, magnetically shielded for filter circuits and oscillators from Würth Elektronik

Size	L (mm)	W (mm)	H (mm)	Mount

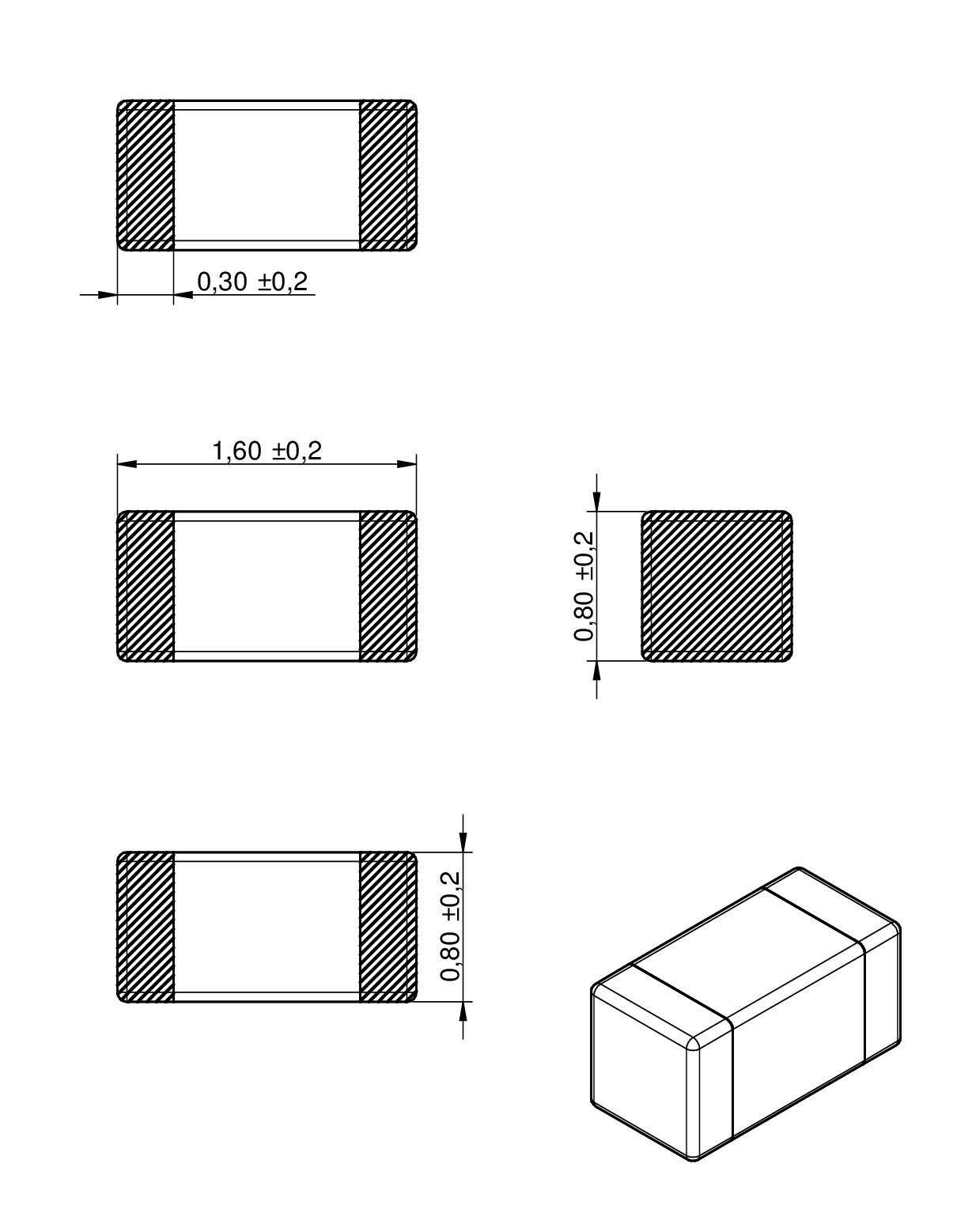

0603	1.6	0.8	0.8	SMT

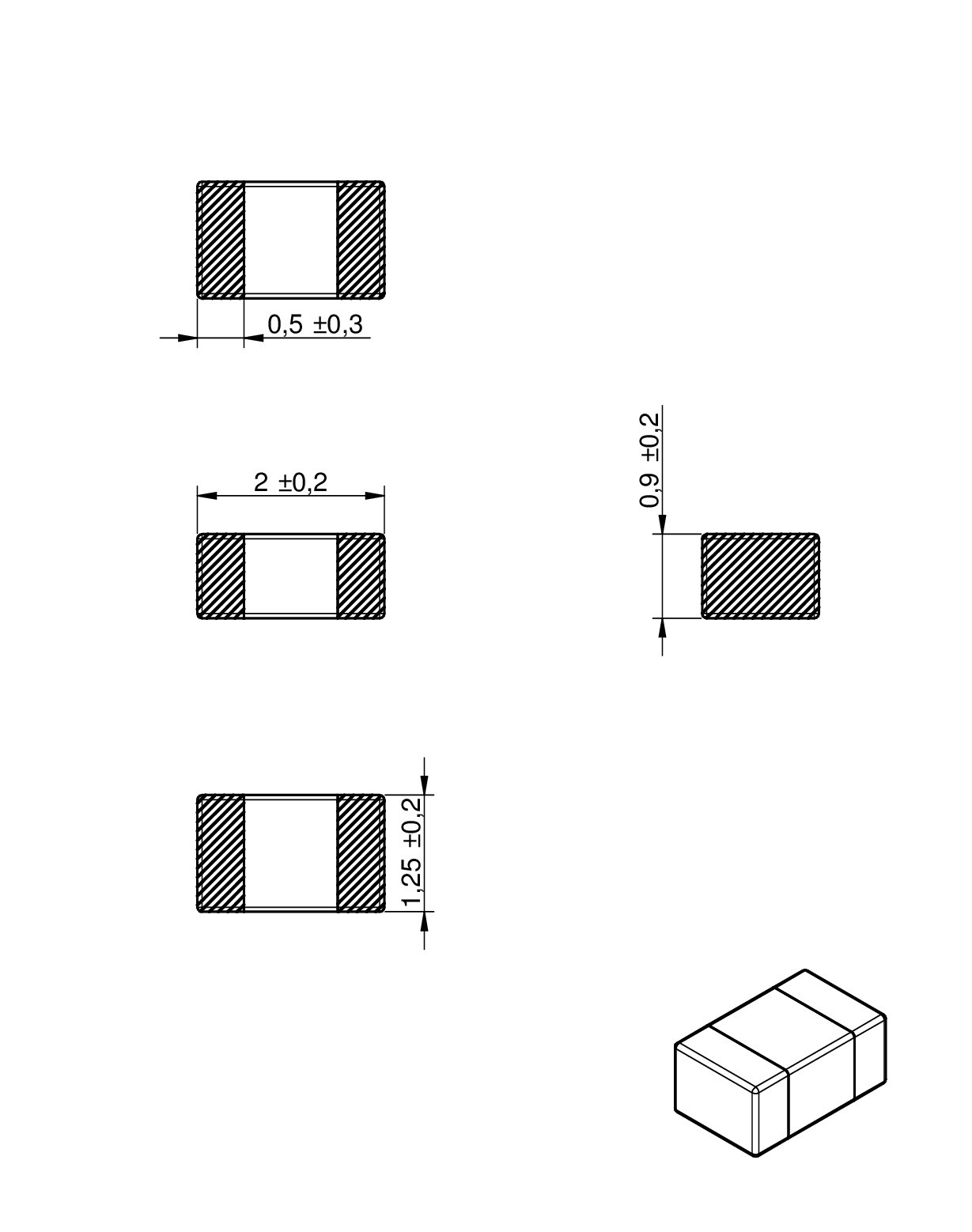

0805	2	1.2	-	SMT

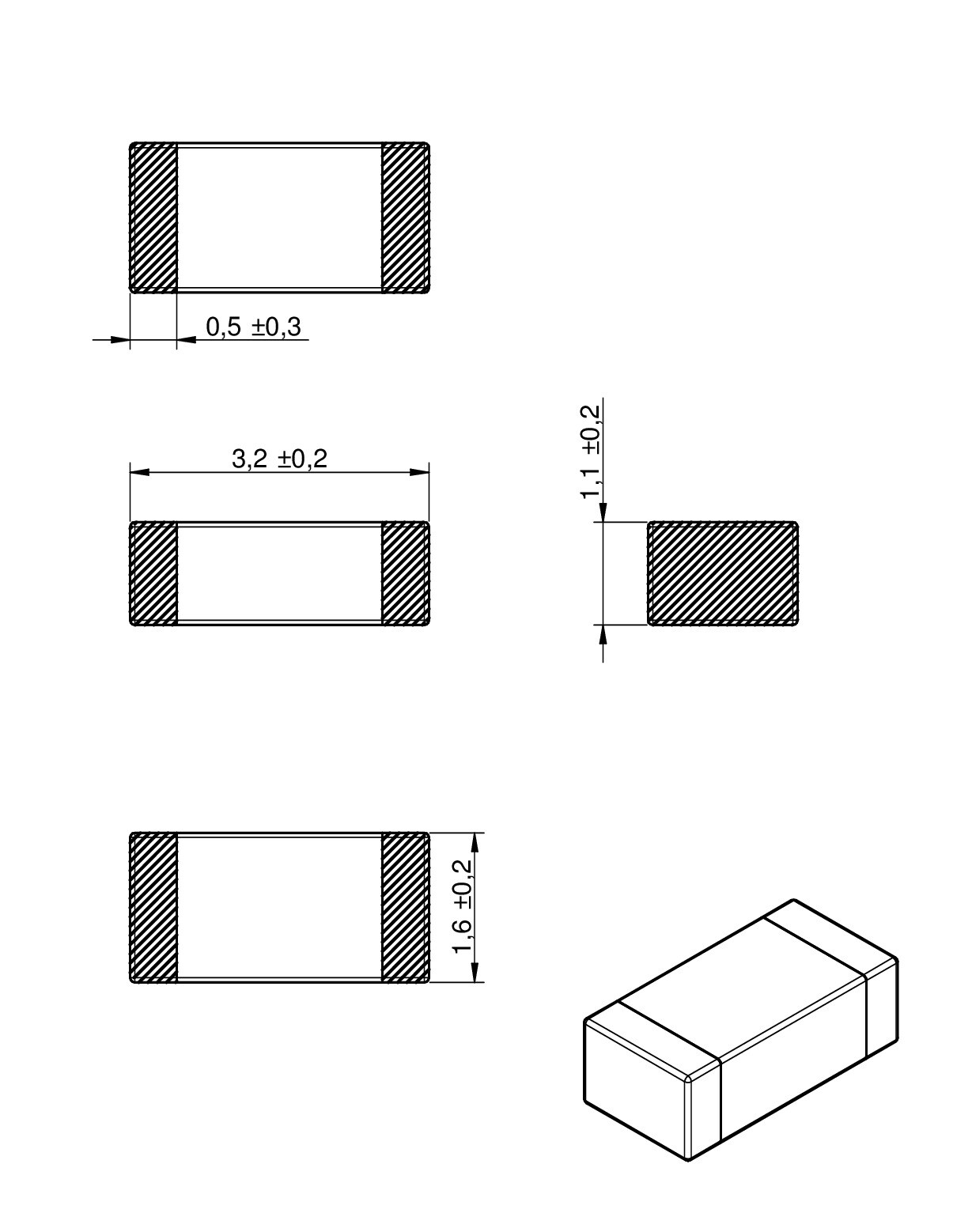

1206	3.2	1.6	1.1	SMT

Characteristics

Smallest inductor possible for less space needed on the printed circuit board and therefore perfect suitable for high density mounting
No cross coupling because of closed magnetic circuits
No crosstalk
Operating temperature: –55 °C to +125 °C

Applications

Filter switches
Oscillators
Adjustment networks
Discretely built T- or π-Filter

Products

All

0603

0805

1206

Order Code	Datasheet	Downloads	Status	L (µH)	Q	I_R (mA)	R_{DC max.} (Ω)	Design Kit
74479614	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.047	10	50	0.25	744790
74479014	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.047	20	300	0.2	744790
74479114	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.047	20	300	0.15	–
7447962	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.1	15	50	0.5	744790
7447902	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.1	20	250	0.3	744790
7447912	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.1	20	250	0.25	744790
74479623	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.22	15	50	0.8	744790
74479023	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.22	20	250	0.5	744790
744791220	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.22	20	250	0.4	744790
74479632	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	15	35	1	744790
74479032	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	25	200	0.6	744790
74479132	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	25	200	0.6	744790
7447965	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	35	25	0.6	744790
7447905	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	45	50	0.4	744790
7447915	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	45	100	0.4	744790
7447915J	SPEC	2 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	45	100	0.4	–
74479652	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	35	15	1	744790
74479052	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	45	30	0.6	744790
74479152	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	45	50	0.6	744790
74479152J	SPEC	2 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	45	50	0.6	–
74479653	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	35	15	1.4	744790
74479053	SPEC	5 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	45	30	0.8	744790
74479153	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	45	50	0.7	744790
7447966	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	35	15	1.8	744790
7447906	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	45	30	1	744790
7447916	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	45	50	0.9	744790
74479668	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	35	5	1.7	744790
74479068	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	50	15	1	–
74479168	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	50	25	0.9	744790
7447968	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	30	3	1.85	744790
7447908	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	50	15	1	744790
7447918	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	50	25	0.6	744790
74479081	SPEC	5 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	50	15	1.1	744790
74479184	SPEC	6 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CDS Cadence_WE-MI (rev18a).zip \| 221.2 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	35	25	0.9	–

Order Code	Datasheet
74479614	SPEC
74479014	SPEC
74479114	SPEC
7447962	SPEC
7447902	SPEC
7447912	SPEC
74479623	SPEC
74479023	SPEC
744791220	SPEC
74479632	SPEC
74479032	SPEC
74479132	SPEC
7447965	SPEC
7447905	SPEC
7447915	SPEC
7447915J	SPEC
74479652	SPEC
74479052	SPEC
74479152	SPEC
74479152J	SPEC
74479653	SPEC
74479053	SPEC
74479153	SPEC
7447966	SPEC
7447906	SPEC
7447916	SPEC
74479668	SPEC
74479068	SPEC
74479168	SPEC
7447968	SPEC
7447908	SPEC
7447918	SPEC
74479081	SPEC
74479184	SPEC

Samples

Order Code	Datasheet	Downloads	Status	L (µH)	Q	I_R (mA)	R_{DC max.} (Ω)	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-MI Multilayer SMT Inductors
