WE-UCF SMT Common Mode Line Filter

WE-UCF SMT Common Mode Line Filter

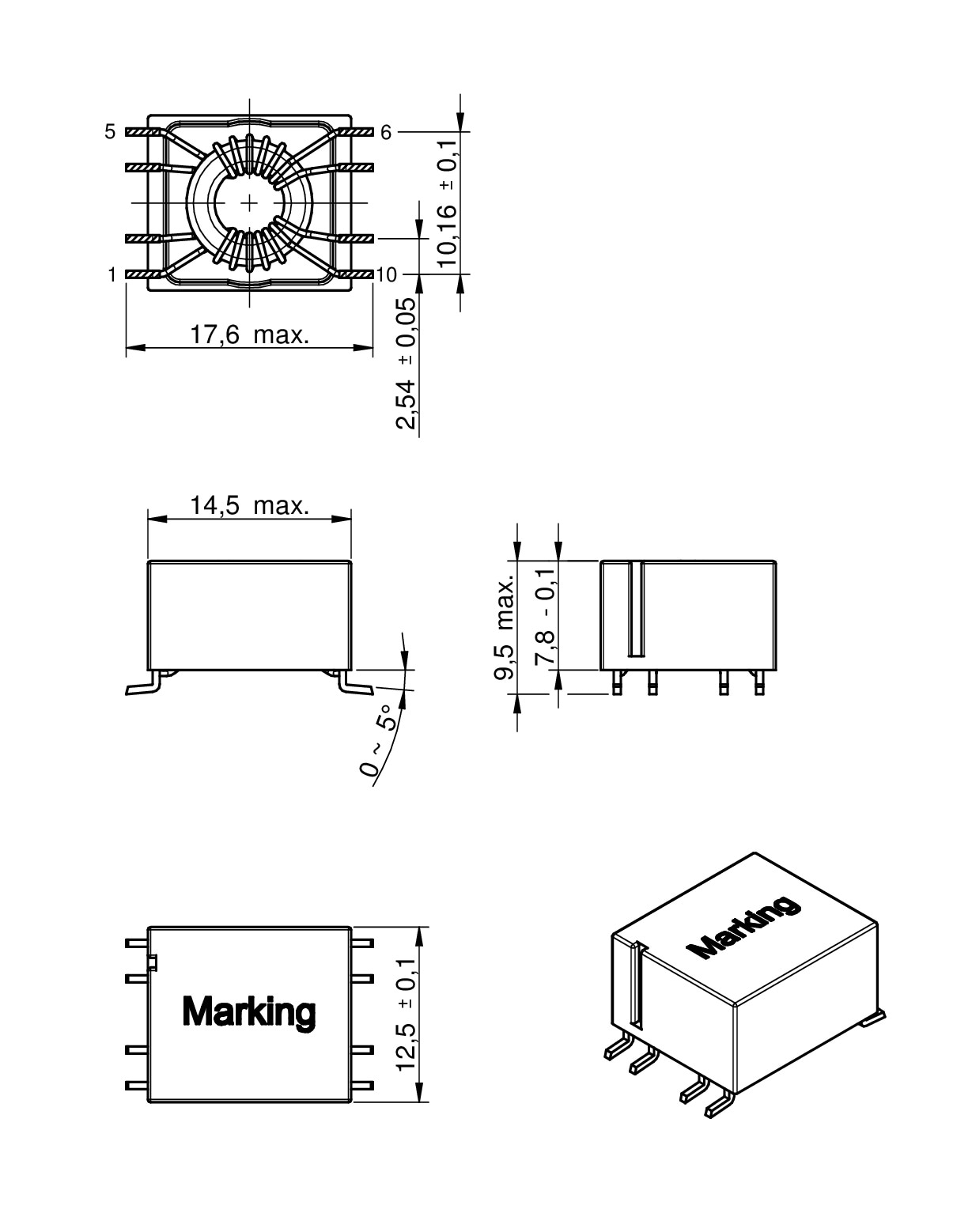

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount
WE-UCF 16.6 12.5 9.3 SMT

Characteristics

  • High inductance range
  • High current range
  • Small package
  • Low profile
  • Surface mount technology
  • Wide range of filtering spectrum
  • Climatic category 40/125/21
  • Flammability corresponding to UL 94 V-0

Applications

  • Filtering
  • DC power lines
  • Buck-/ Boost Converter filtering
  • Data lines with low bitrate
  • Heavily influenced lines

Products

WE-UCF
Order Code Data­sheet Simu­lation DownloadsWinding StyleL
(mH)
LS
(nH)
IR
(A)
RDC max.
(Ω)
VR
(V)
VT
(V (AC))
Design Kit Samples
744290130SPEC
8 files sectional 0.013 110 10 0.0027 80 500744725
744290560SPEC
8 files sectional 0.056 330 7 0.0047 80 500
744290121SPEC
8 files sectional 0.12 680 5.5 0.0105 80 500
744290321SPEC
8 files sectional 0.32 2200 3.25 0.029 80 500744725
744290152SPEC
8 files sectional 1.5 13000 1.5 0.12 80 500744725
744290472SPEC
7 files sectional 4.7 25000 0.75 0.52 80 500
744290103SPEC
7 files sectional 10 83000 0.5 0.92 80 500744725
744290283SPEC
7 files sectional 28 220000 0.3 2.8 80 500
744290473SPEC
7 files sectional 47 460000 0.25 4 80 500
744290683SPEC
7 files sectional 68 960000 0.2 5 80 500
744290104SPEC
7 files sectional 100 780000 0.15 8.5 80 500744725
Order Code Data­sheet Simu­lation
744290130SPEC
744290560SPEC
744290121SPEC
744290321SPEC
744290152SPEC
744290472SPEC
744290103SPEC
744290283SPEC
744290473SPEC
744290683SPEC
744290104SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsWinding StyleL
(mH)
LS
(nH)
IR
(A)
RDC max.
(Ω)
VR
(V)
VT
(V (AC))
Design Kit Samples
