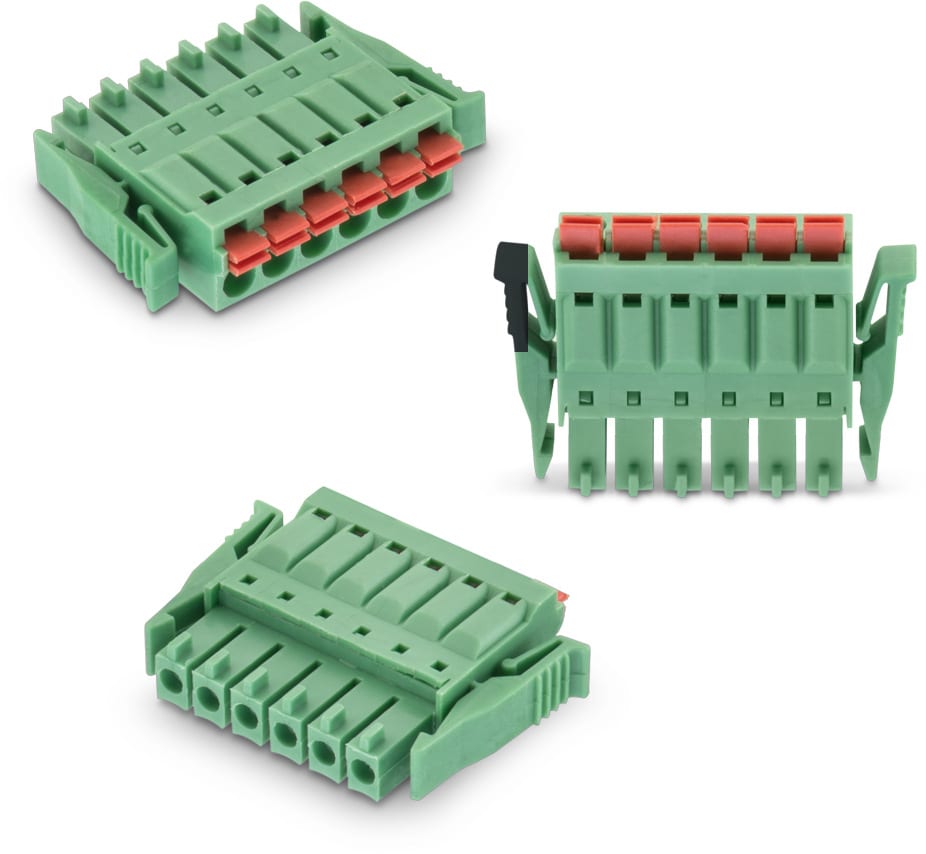

General Information | |
---|---|
Betriebstemperatur | -40 °C up to +105 °C |
Einhaltung | Lead free / RoHS |
Raster | 3.5 mm |
Material Properties | |
---|---|
Isolationsmaterial | PA66 |
Isolation Brennbarkeitsklasse | UL94 V-0 |
Isolationsfarbe | Grün |
Kontaktmaterial | Kupferlegierung |
Kontaktbeschichtung | Zinn |
Kabelschutzmaterial | Kupferlegierung mit Zinn über Nickel |
Federmaterial | Edelstahl |
Electrical Properties | |
---|---|
IR | 12 A |
IR cULus | 12 A |
Arbeitsspannung | 300 V (AC) |
Arbeitsspannung [cULus] | 300 V (AC) |
Spannungsfestigkeit [cULus] | 2500 V (AC) |
Kontaktwiderstand | 20 mΩ |
Kontaktwiderstand [cULus] | 20 mΩ |
Wire Properties | |
---|---|
Solid Wire Section (AWG) | 16 to 24 (AWG) |
Solid Wire Section (Metric) | 0.205 to 1.3 (mm²) |
Stranded Wire Section (AWG) | 16 to 24 (AWG) |
Stranded Wire Section (Metric) | 0.205 to 1.3 (mm²) |
Certification | |
---|---|
cULus Zulassung | E315414 |
Application Notes
Artikeldaten
Artikel Nr. | Datenblatt | Downloads | Pins (pcs) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | Design Kit | Muster |
---|---|---|---|---|---|---|---|---|---|---|
691304130002 | SPEC | 3 Dateien | 2 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | – | |
691304130003 | SPEC | 3 Dateien | 3 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | 691002 | |
691304130004 | SPEC | 3 Dateien | 4 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | – | |
691304130005 | SPEC | 3 Dateien | 5 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | – | |
691304130006 | SPEC | 3 Dateien | 6 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | – | |
691304130007 | SPEC | 3 Dateien | 7 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | – | |
691304130008 | SPEC | 3 Dateien | 8 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | – | |
691304130012 | SPEC | 3 Dateien | 12 | Pluggable | Kabel | Nein | Vertikal | 16 to 24 (AWG) 0.205 to 1.3 (mm²) | – |
Artikel Nr. | Datenblatt |
---|---|
691304130002 | SPEC |
691304130003 | SPEC |
691304130004 | SPEC |
691304130005 | SPEC |
691304130006 | SPEC |
691304130007 | SPEC |
691304130008 | SPEC |
691304130012 | SPEC |
Muster |
---|
Artikel Nr. | Datenblatt | Downloads | Pins (pcs) | Anwendung | PCB/Kabel/Panel | Modularity | Typ | Wire Section | Design Kit | Muster |
---|
