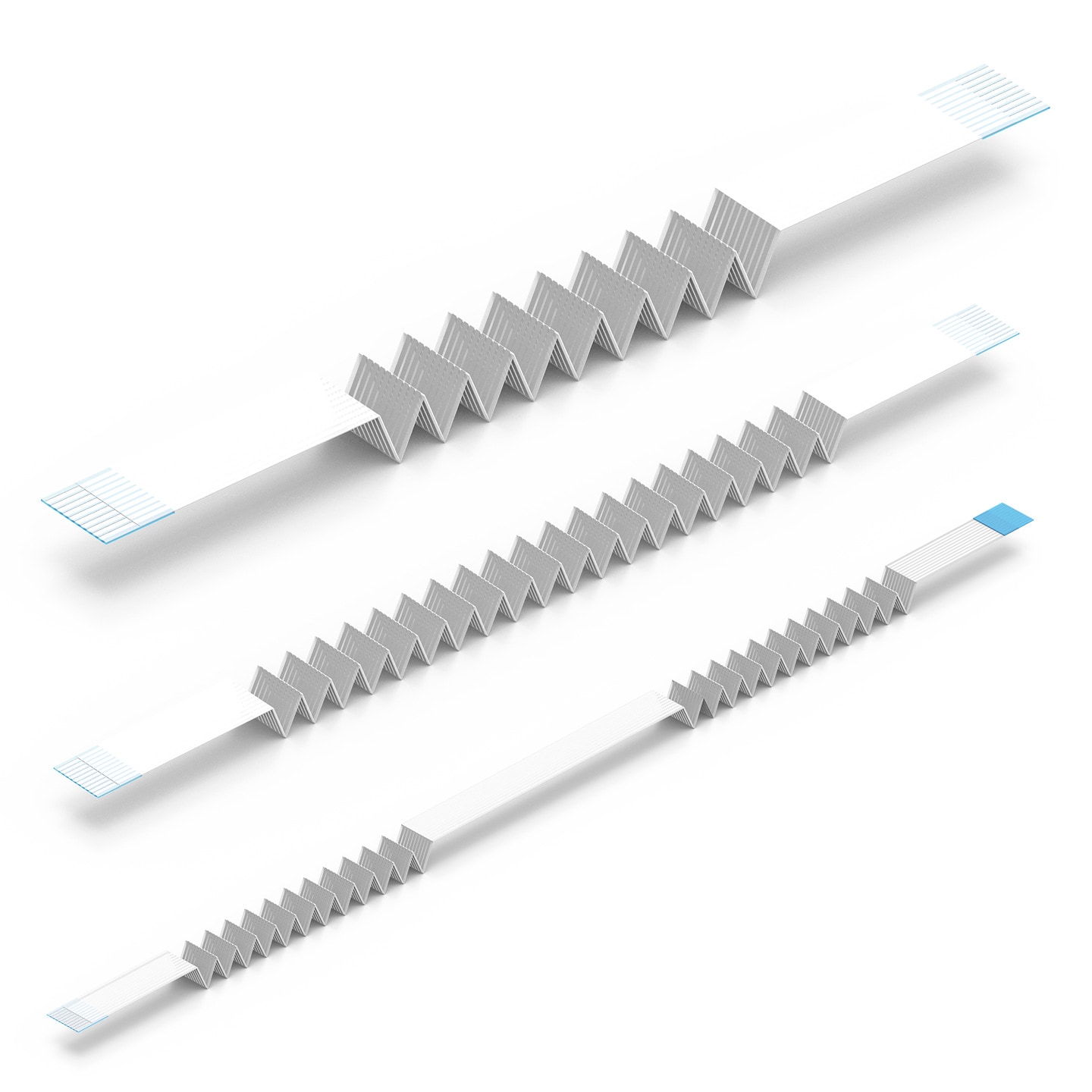

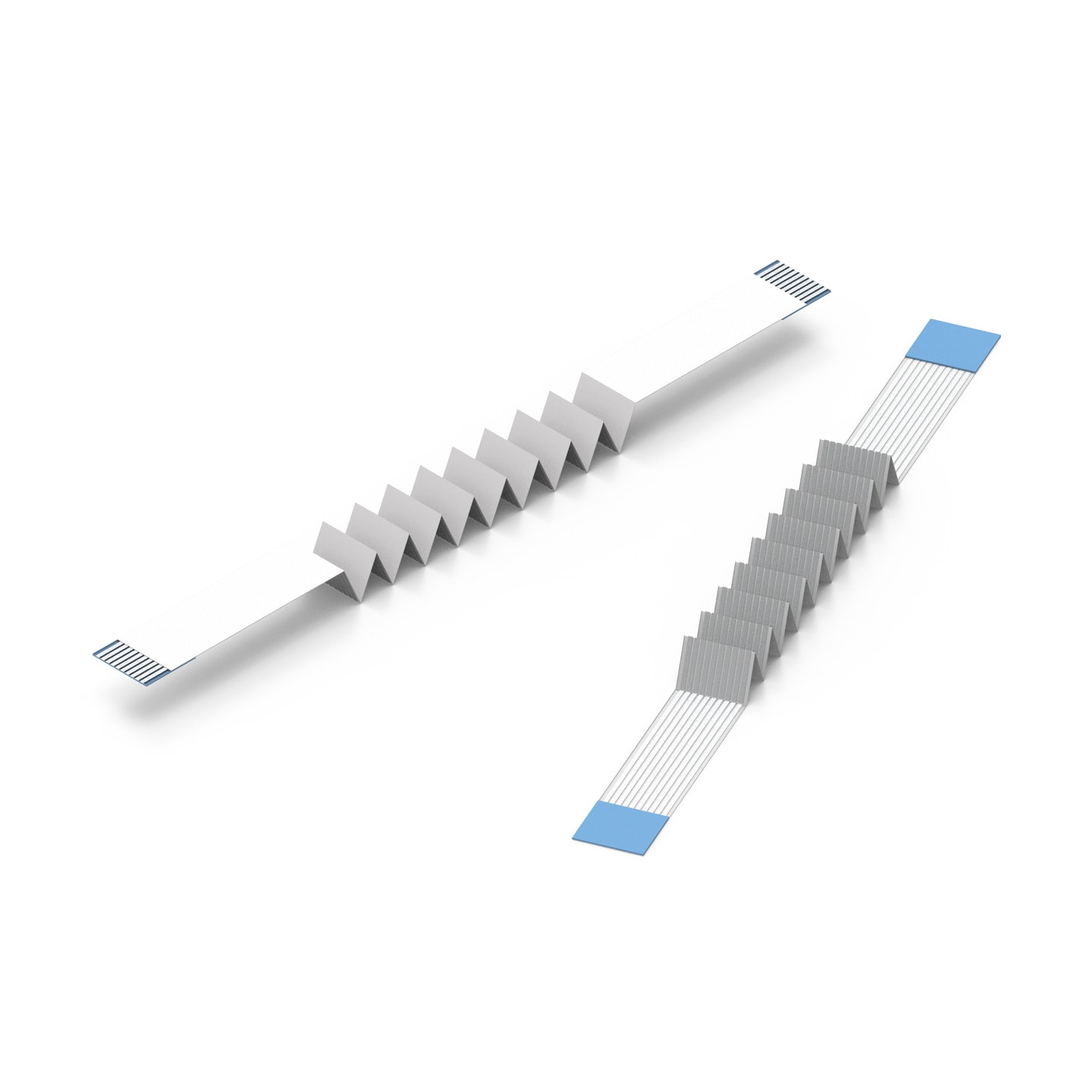

WR-FFC 0.50 mm Folding Flat Flexible Cable

Kind Properties
Pitch	0.5 mm
Durability	20 Mating cycles
S1	4 mm
S2	4 mm
D1	8 mm
D2	8 mm
Cw	0.3 mm
Ct	0.05 mm

General Information
Operating Temperature	-30 °C up to +105 °C
Flammability Rating	UL SUB.758

Packaging Properties
Packaging	Bag

Material Properties
Insulator Material	PET (White)
Tape Material	PET (Blue)
Contact Material	Copper
Contact Plating	Tin

Electrical Properties
I_R	0.5 A
Working Voltage	60 V
R_ISO	1000 MΩ
Withstanding Voltage	500 V (AC)
R	1.4 Ω/m
Contact Resistance	20 mΩ

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Type/Size	Length (folded) (mm)	Length (unfolded) (mm)	W (mm)	Design Kit
687620119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx119002_687620119002 (rev1).iges \| 5.5 MB STP STP_FFC_0_50_Type_1_6876xx119002_687620119002 (rev1).stp \| 1.8 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.50mm Type 1	120	200	10.5	–
687720119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx119002_687720119002 (rev1).iges \| 5.8 MB STP STP_FFC_0_50_Type_2_6877xx119002_687720119002 (rev1).stp \| 1.9 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.50mm Type 2	120	200	10.5	–
687620141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx141002_687620141002 (rev1).iges \| 12.3 MB STP STP_FFC_0_50_Type_1_6876xx141002_687620141002 (rev1).stp \| 3.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.50mm Type 1	165	350	10.5	687001
687720141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx141002_687720141002 (rev1).iges \| 12.3 MB STP STP_FFC_0_50_Type_2_6877xx141002_687720141002 (rev1).stp \| 3.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.50mm Type 2	165	350	10.5	–
687720225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx225002_687720225002 (rev1).iges \| 20.7 MB STP STP_FFC_0_50_Type_2_6877xx225002_687720225002 (rev1).stp \| 6.8 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.50mm Type 2	280	500	10.5	687001
687620225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx225002_687620225002 (rev1).iges \| 14.1 MB STP STP_FFC_0_50_Type_1_6876xx225002_687620225002 (rev1).stp \| 4.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	0.50mm Type 1	280	500	10.5	612690
687630119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx119002_687630119002 (rev1).iges \| 8.1 MB STP STP_FFC_0_50_Type_1_6876xx119002_687630119002 (rev1).stp \| 2.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.50mm Type 1	120	200	15.5	–
687730119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx119002_687730119002 (rev1).iges \| 8.6 MB STP STP_FFC_0_50_Type_2_6877xx119002_687730119002 (rev1).stp \| 2.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.50mm Type 2	120	200	15.5	–
687630141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx141002_687630141002 (rev1).iges \| 18.2 MB STP STP_FFC_0_50_Type_1_6876xx141002_687630141002 (rev1).stp \| 5.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.50mm Type 1	165	350	15.5	–
687730141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx141002_687730141002 (rev1).iges \| 18.3 MB STP STP_FFC_0_50_Type_2_6877xx141002_687730141002 (rev1).stp \| 5.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.50mm Type 2	165	350	15.5	–
687730225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx225002_687730225002 (rev1).iges \| 30.5 MB STP STP_FFC_0_50_Type_2_6877xx225002_687730225002 (rev1).stp \| 10.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.50mm Type 2	280	500	15.5	–
687630225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx225002_687630225002 (rev1).iges \| 20.9 MB STP STP_FFC_0_50_Type_1_6876xx225002_687630225002 (rev1).stp \| 6.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	0.50mm Type 1	280	500	15.5	–
687640119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx119002_687640119002 (rev1).iges \| 10.9 MB STP STP_FFC_0_50_Type_1_6876xx119002_687640119002 (rev1).stp \| 3.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.50mm Type 1	120	200	20.5	687001
687740119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx119002_687740119002 (rev1).iges \| 27.7 MB STP STP_FFC_0_50_Type_2_6877xx119002_687740119002 (rev1).stp \| 8.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.50mm Type 2	120	200	20.5	–
687640141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx141002_687640141002 (rev1).iges \| 21.8 MB STP STP_FFC_0_50_Type_1_6876xx141002_687640141002 (rev1).stp \| 6.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.50mm Type 1	165	350	20.5	–
687740141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx141002_687740141002 (rev1).iges \| 24.1 MB STP STP_FFC_0_50_Type_2_6877xx141002_687740141002 (rev1).stp \| 7.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.50mm Type 2	165	350	20.5	–
687740225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx225002_687740225002 (rev1).iges \| 41.9 MB STP STP_FFC_0_50_Type_2_6877xx225002_687740225002 (rev1).stp \| 13.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.50mm Type 2	280	500	20.5	–
687640225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx225002_687640225002 (rev1).iges \| 27.7 MB STP STP_FFC_0_50_Type_1_6876xx225002_687640225002 (rev1).stp \| 8.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	0.50mm Type 1	280	500	20.5	–
687650119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx119002_687650119002 (rev1).iges \| 13.6 MB STP STP_FFC_0_50_Type_1_6876xx119002_687650119002 (rev1).stp \| 4.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.50mm Type 1	120	200	25.5	–
687750119002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx119002_687750119002 (rev1).iges \| 34.5 MB STP STP_FFC_0_50_Type_2_6877xx119002_687750119002 (rev1).stp \| 10.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.50mm Type 2	120	200	25.5	–
687650141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx141002_687650141002 (rev1).iges \| 27.1 MB STP STP_FFC_0_50_Type_1_6876xx141002_687650141002 (rev1).stp \| 8.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.50mm Type 1	165	350	25.5	–
687750141002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx141002_687750141002 (rev1).iges \| 30 MB STP STP_FFC_0_50_Type_2_6877xx141002_687750141002 (rev1).stp \| 9.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.50mm Type 2	165	350	25.5	–
687750225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_2_6877xx225002_687750225002 (rev1).iges \| 52.2 MB STP STP_FFC_0_50_Type_2_6877xx225002_687750225002 (rev1).stp \| 17 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.50mm Type 2	280	500	25.5	–
687650225002	SPEC	2 files CAD files ZIP IGS IGES_FFC_0_50_Type_1_6876xx225002_687650225002 (rev1).iges \| 34.2 MB STP STP_FFC_0_50_Type_1_6876xx225002_687650225002 (rev1).stp \| 10.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	0.50mm Type 1	280	500	25.5	–
