WE-PD SMT Power Inductor | Automotive | Würth Elektronik Product Catalog

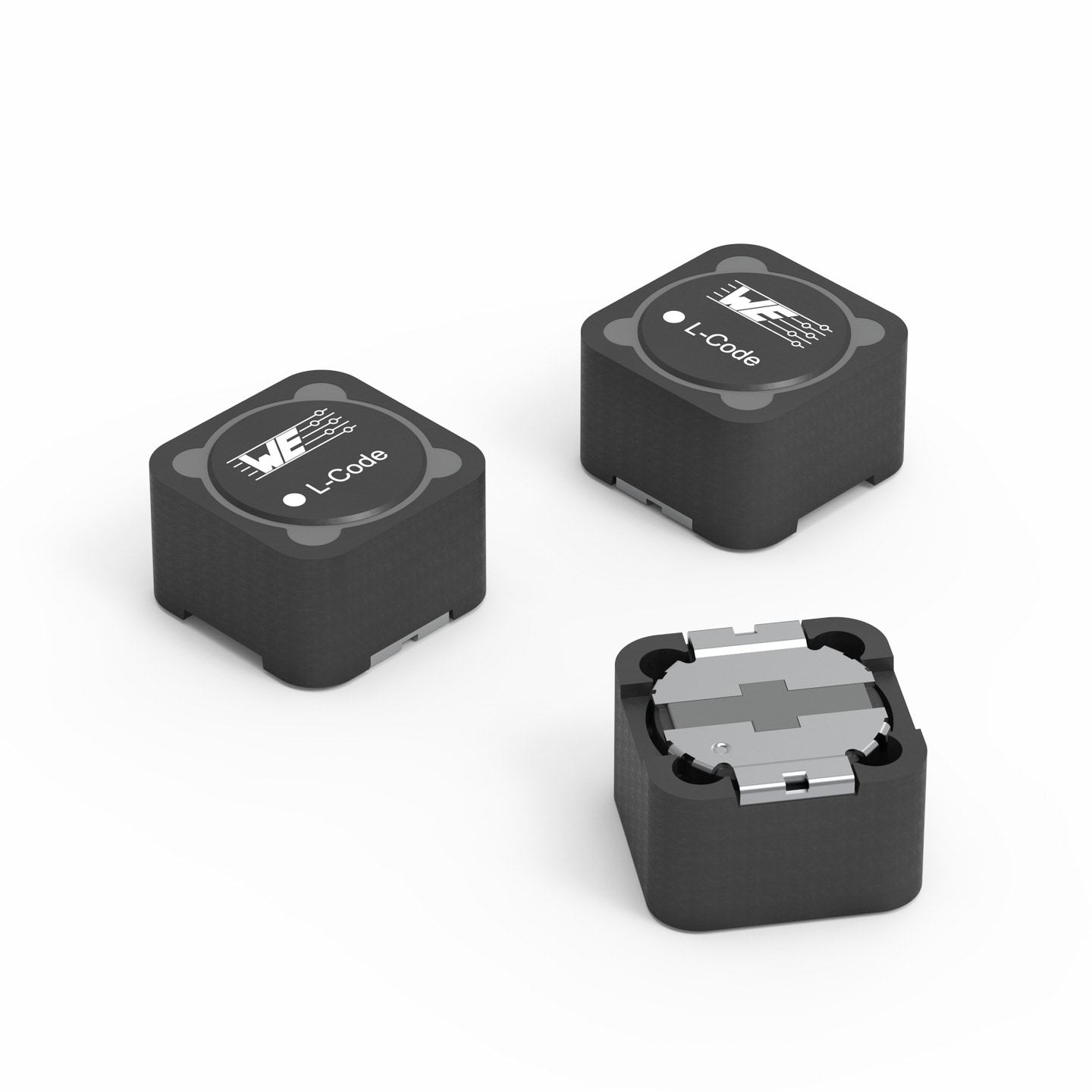

WE-PD shielded SMT power inductor. AEC-Q 200 qualified with ultra low RDC and RAC. Ideal for switch mode power supplies from 0.1 W up to 300 W

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1280		12	12	8	SMT
1210		12	12	10	SMT

LTSpice files

LT
LTSpice_WE-PD (rev24a).zip
|
11.8 KB

Characteristics

Ultra low R_DC and R_AC
Core Material: NiZn
Operating temperature: -40 °C to +125 °C
AEC-Q 200 qualified
Automotive approved

Applications

Air conditioning, climate control units,ventilation, fan controls
Small motor drivers & wiper control systems
Car infotainment
Switching regulators and DC/DC converter with extremely high efficiency (>95%)

Application Notes

Products

All

1280

1210

Order Code	Datasheet	Downloads	Status	L (µH)	I_SAT,10% (A)	I_SAT,30% (A)	I_R,40K (A)	I_RP,40K (A)	R_{DC max.} (mΩ)	f_res (MHz)	Size	Version	Design Kit
74477009	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	34	44	23.5	27	3	120	1280	Standard	–
74477008	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.75	27	35	17	19.5	5	110	1280	Standard	–
7447709001	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	25	31	13	18.7	6	120	1210	Standard	744770
74477001	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.2	21	27	13.5	16.2	7	45	1280	Standard	744770
744770015	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	19	24.5	16.5	19	5	42	1280	Standard	–
7447709002	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	20	25	11.5	16.3	6	65	1210	Standard	744770
74477002	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.4	15	19.5	11.5	13.5	9	41	1280	Standard	744770
74477003	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.5	12.5	16.2	10.2	12	11	37.5	1280	Standard	–
7447709003	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.5	16.5	20.3	11	14.7	9	45	1210	Standard	–
74477004	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	11	14.3	9.5	11	12	31.2	1280	Standard	744770
7447709004	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	13	16	9.3	13.1	11	38	1210	Standard	744770
74477005	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.6	10	13	8.7	10	13.5	24	1280	Standard	–
74477006	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.1	9.5	12.2	8.5	9.5	14	25	1280	Standard	–
7447709006	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	12.8	15.7	8.4	11.7	14	23	1210	Standard	–
74477007	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.6	8.5	11	8.4	9.3	15	21.3	1280	Standard	–
74477010	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	7.5	9.7	7	8.2	20	18	1280	Standard	744770
7447709100	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	10.5	13	7.1	9.5	21	21	1210	Standard	744770
744770112	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	6.5	8.4	6.2	7.8	21	16	1280	Standard	–
744770115	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	6	7.8	5.8	7.4	23	14.5	1280	Standard	744770
7447709150	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	8	9.8	6.5	7.4	26	17	1210	Standard	744770
744770118	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	5.4	7	5	6.3	32	13.2	1280	Standard	–
744770122	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	5	6.5	4.6	5.8	35	12	1280	Standard	744770
7447709220	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	6.5	8	5.3	7	28	10	1210	Standard	744770
744770127	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	27	4.3	5.6	4.2	5.6	38	10	1280	Standard	–
7447709270	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	27	5.8	7.1	4.6	6.1	40	8	1210	Standard	–
744770133	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	3.9	5.05	3.6	4.7	53	8.5	1280	Standard	–
7447709330	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	5.5	6.8	4.2	5.5	45	8.5	1210	Standard	–
744770139	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	39	3.6	4.65	3.3	4.5	56	8.2	1280	Standard	–
7447709390	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	39	5	6.2	4.1	5	56	6	1210	Standard	–
744770147	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	3.3	4.3	3	4.25	64	7.9	1280	Standard	744770
7447709470	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	4.5	5.5	3.8	4.9	60	6.5	1210	Standard	744770
744770156	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	56	3	3.9	2.8	4	71	7.1	1280	Standard	–
744770168	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	2.7	3.5	2.5	3.5	90	6.4	1280	Standard	–
7447709680	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	3.6	4.4	3.2	3.9	89	5.5	1210	Standard	–
744770182	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82	2.5	3.25	2.3	3.3	105	3.5	1280	Standard	–
7447709820	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	82	3.4	4.2	2.75	3.35	105	4.5	1210	Standard	–
74477020	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	2.4	3.1	2.2	2.85	140	5.2	1280	Standard	744770
7447709101	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	3.1	3.8	2.5	3.2	110	4.3	1210	Standard	744770
744770215	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	1.8	2.35	1.8	2.55	175	3	1280	Standard	–
7447709151	SPEC	9 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP 3D 3D_7447709151 (rev1).pdf \| 291.6 KB IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	150	2.7	3.3	2.1	2.6	200	3.5	1210	Standard	–
744770218	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	180	1.7	2.2	1.6	2.25	220	4.2	1280	Standard	–
744770222	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	1.5	1.95	1.4	2	275	3.8	1280	Standard	744770
7447709221	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	2.2	2.7	1.8	2.25	300	2.7	1210	Standard	744770
7447709271	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	270	2.1	2.6	1.6	2	330	2.5	1210	Standard	–
744770233	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	1.2	1.55	1.1	1.65	410	3	1280	Standard	–
7447709331	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	1.7	2.1	1.5	1.6	430	2	1210	Standard	–
744770247	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	1.05	1.35	0.98	1.45	540	2.6	1280	Standard	744770
7447709471	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	1.5	1.85	1.4	1.45	560	1.8	1210	Standard	744770
744770256	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	560	0.95	1.2	0.87	1.25	680	2.5	1280	Standard	–
744770268	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	0.85	1.1	0.75	1.1	930	2.2	1280	Standard	–
7447709681	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	680	1.3	1.6	1.1	1.2	825	1.5	1210	Standard	–
744770282	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	820	0.8	1.04	0.7	1.05	1050	2	1280	Standard	–
7447709821	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	820	1.1	1.35	0.95	1.05	1000	1.2	1210	Standard	–
74477030	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1280_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1280_STP (rev1).stp \| 752.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.7	0.91	0.65	0.98	1180	1.8	1280	Standard	744770
7447709102	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	1	1.25	0.9	1	1200	1	1210	Standard	744770
7447709152	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1500	0.8	1	0.8	0.71	2300	0.9	1210	Standard	–
7447709222	SPEC	8 files EDA models: Components ZIP ALT WE-PD (rev22g).IntLib \| 2.8 MB ZUK CadStar_WE-PD (rev20a).zip \| 36.5 KB CDS Cadence_WE-PD (rev23a).zip \| 13.3 MB EAG Eagle_WE-PD (rev23a).lbr \| 296.9 KB CAD files ZIP IGS Download_WE-PD_1210_IGS (rev1).igs \| 3.1 MB STP Download_WE-PD_1210_STP (rev1).stp \| 754.4 KB Electric models ZIP PSP PSpice_WE-PD (rev24a).zip \| 57.5 KB SCS Spectre_WE-PD (rev24b).mod \| 77.7 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2200	0.75	0.92	0.53	0.53	3750	0.66	1210	Standard	–

Order Code	Datasheet	Simulation
74477009	SPEC
74477008	SPEC
7447709001	SPEC
74477001	SPEC
744770015	SPEC
7447709002	SPEC
74477002	SPEC
74477003	SPEC
7447709003	SPEC
74477004	SPEC
7447709004	SPEC
74477005	SPEC
74477006	SPEC
7447709006	SPEC
74477007	SPEC
74477010	SPEC
7447709100	SPEC
744770112	SPEC
744770115	SPEC
7447709150	SPEC
744770118	SPEC
744770122	SPEC
7447709220	SPEC
744770127	SPEC
7447709270	SPEC
744770133	SPEC
7447709330	SPEC
744770139	SPEC
7447709390	SPEC
744770147	SPEC
7447709470	SPEC
744770156	SPEC
744770168	SPEC
7447709680	SPEC
744770182	SPEC
7447709820	SPEC
74477020	SPEC
7447709101	SPEC
744770215	SPEC
7447709151	SPEC
744770218	SPEC
744770222	SPEC
7447709221	SPEC
7447709271	SPEC
744770233	SPEC
7447709331	SPEC
744770247	SPEC
7447709471	SPEC
744770256	SPEC
744770268	SPEC
7447709681	SPEC
744770282	SPEC
7447709821	SPEC
74477030	SPEC
7447709102	SPEC
7447709152	SPEC
7447709222	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	L (µH)	I_SAT,10% (A)	I_SAT,30% (A)	I_R,40K (A)	I_RP,40K (A)	R_{DC max.} (mΩ)	f_res (MHz)	Size	Version	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit SMD-Shielded Power Inductors WE-PD 12xx

Comments

The ambient temperature when operating the WE-PD series of storage chokes at full current rating load should generally range from –40 °C to +85 °C.
The self-heating of the component must be taken into account at higher ambient temperatures in order that the permissible solder joint temperature is not exceeded or the wire insulation damaged.
The wire used can withstand a temperature of up to +150 °C.
The ferrite core itself may be used over a far greater temperature range (approx. –50 °C to +250 °C (curie temperature))
However, in this case, the tolerance limits of the inductor may be exceeded due to the temperature dependence of permeability.
