WR-BHD 2.00 mm Male SMT Box Header | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.00 mm GenderMale Product seriesWR-BHD 2.00 mm Male SMT Box Header

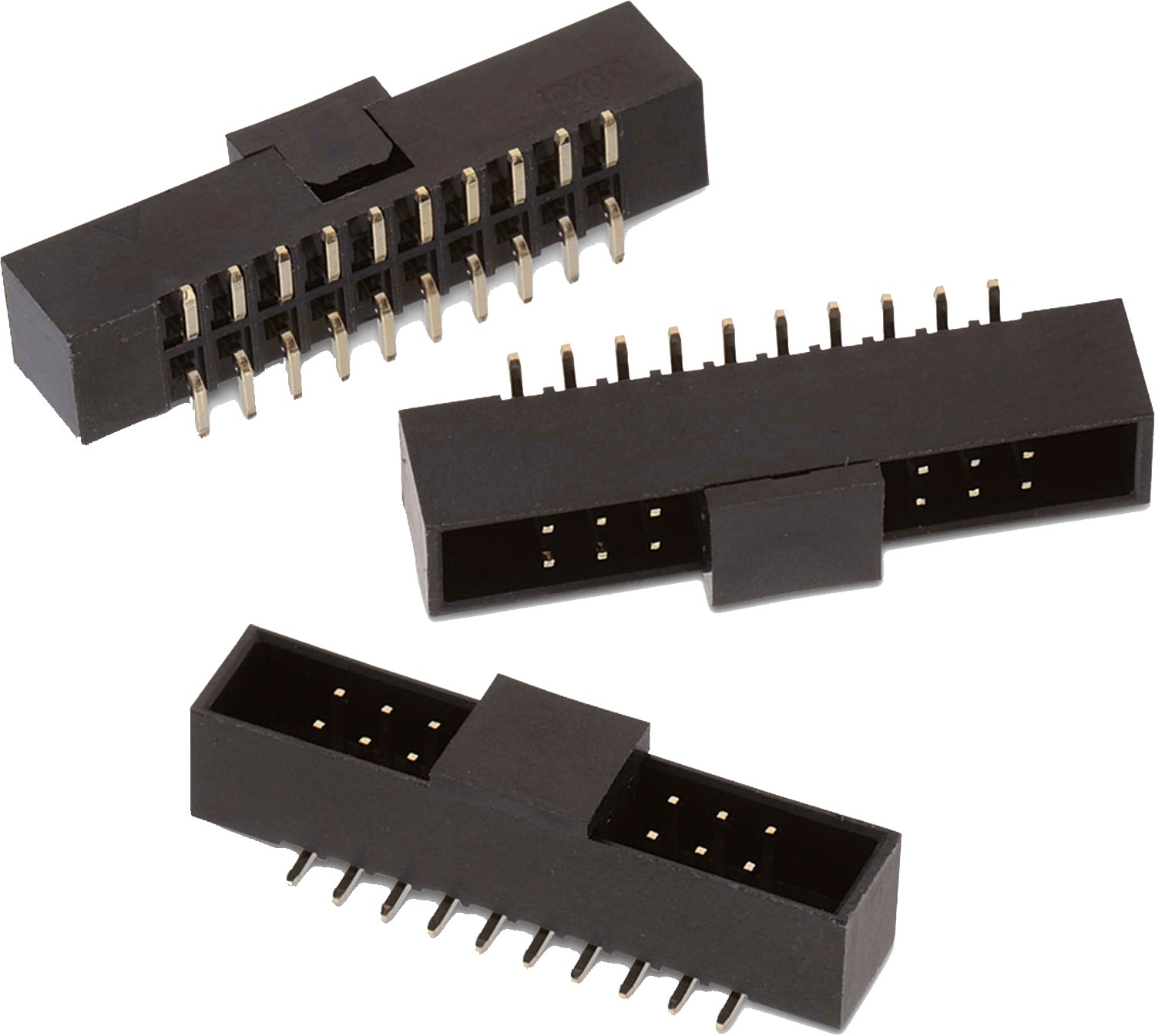

WR-BHD 2.00 mm Male SMT Box Header

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Male

Packaging Properties
Packaging	Tape and Reel with Cap

Products

Order Code	Datasheet	Downloads	Pins (pcs)	Pitch (mm)	Gender	Type	Mount	L (mm)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
62531020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62531020621_1 (rev1).pdf \| 57.5 KB IGS 62531020621 (rev1).igs \| 896.8 KB STP 62531020621 (rev1).stp \| 380.2 KB Download all 6 files as zip archive ZIP	10	2	Male	Straight	SMT	17.25	250	20	max.	Tape and Reel with Cap	612001
62531420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62531420621_1 (rev1).pdf \| 70.5 KB IGS 62531420621 (rev1).igs \| 1.1 MB STP 62531420621 (rev1).stp \| 479.6 KB Download all 6 files as zip archive ZIP	14	2	Male	Straight	SMT	21.25	250	20	max.	Tape and Reel with Cap	612001
62531620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62531620621_1 (rev1).pdf \| 77 KB IGS 62531620621 (rev1).igs \| 1.2 MB STP 62531620621 (rev1).stp \| 528.3 KB Download all 6 files as zip archive ZIP	16	2	Male	Straight	SMT	23.25	250	20	max.	Tape and Reel with Cap	–
62532020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62532020621_1 (rev1).pdf \| 89.7 KB IGS 62532020621 (rev1).igs \| 1.5 MB STP 62532020621 (rev1).stp \| 629.4 KB Download all 6 files as zip archive ZIP	20	2	Male	Straight	SMT	27.25	250	20	max.	Tape and Reel with Cap	612001
62532620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62532620621_1 (rev1).pdf \| 109.4 KB IGS 62532620621 (rev1).igs \| 1.8 MB STP 62532620621 (rev1).stp \| 782.7 KB Download all 6 files as zip archive ZIP	26	2	Male	Straight	SMT	33.25	250	20	max.	Tape and Reel with Cap	–
62533020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62533020621_1 (rev1).pdf \| 122.6 KB IGS 62533020621 (rev1).igs \| 2 MB STP 62533020621 (rev1).stp \| 884.9 KB Download all 6 files as zip archive ZIP	30	2	Male	Straight	SMT	37.25	250	20	max.	Tape and Reel with Cap	–
62533420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62533420621_1 (rev1).pdf \| 135.5 KB IGS 62533420621 (rev1).igs \| 2.3 MB STP 62533420621 (rev1).stp \| 988.1 KB Download all 6 files as zip archive ZIP	34	2	Male	Straight	SMT	41.25	250	20	max.	Tape and Reel with Cap	612001
62534020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62534020621_1 (rev1).pdf \| 154.8 KB IGS 62534020621 (rev1).igs \| 2.6 MB STP 62534020621 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	40	2	Male	Straight	SMT	47.25	250	20	max.	Tape and Reel with Cap	–
62534420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62534420621_1 (rev1).pdf \| 168.1 KB IGS 62534420621 (rev1).igs \| 2.9 MB STP 62534420621 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	44	2	Male	Straight	SMT	51.25	250	20	max.	Tape and Reel with Cap	612001
62535020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev23a).IntLib \| 18.7 MB CDS Cadence_WR-BHD (rev23a).zip \| 19 MB EAG Eagle_WR-BHD (rev23a).lbr \| 2.5 MB CAD files ZIP 3D 62535020621_1 (rev1).pdf \| 188.1 KB IGS 62535020621 (rev1).igs \| 3.2 MB STP 62535020621 (rev1).stp \| 1.4 MB Download all 6 files as zip archive ZIP	50	2	Male	Straight	SMT	57.25	250	20	max.	Tape and Reel with Cap	612001

Order Code	Datasheet
62531020621	SPEC
62531420621	SPEC
62531620621	SPEC
62532020621	SPEC
62532620621	SPEC
62533020621	SPEC
62533420621	SPEC
62534020621	SPEC
62534420621	SPEC
62535020621	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (pcs)	Pitch (mm)	Gender	Type	Mount	L (mm)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-BHD 2.00 mm Female IDC Connector w. Strain Relief

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable
