WR-CAB 1.00 mm Ribbon Flat Cable | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-Cable Ribbon Flat Cable Product seriesWR-CAB 1.00 mm Ribbon Flat Cable

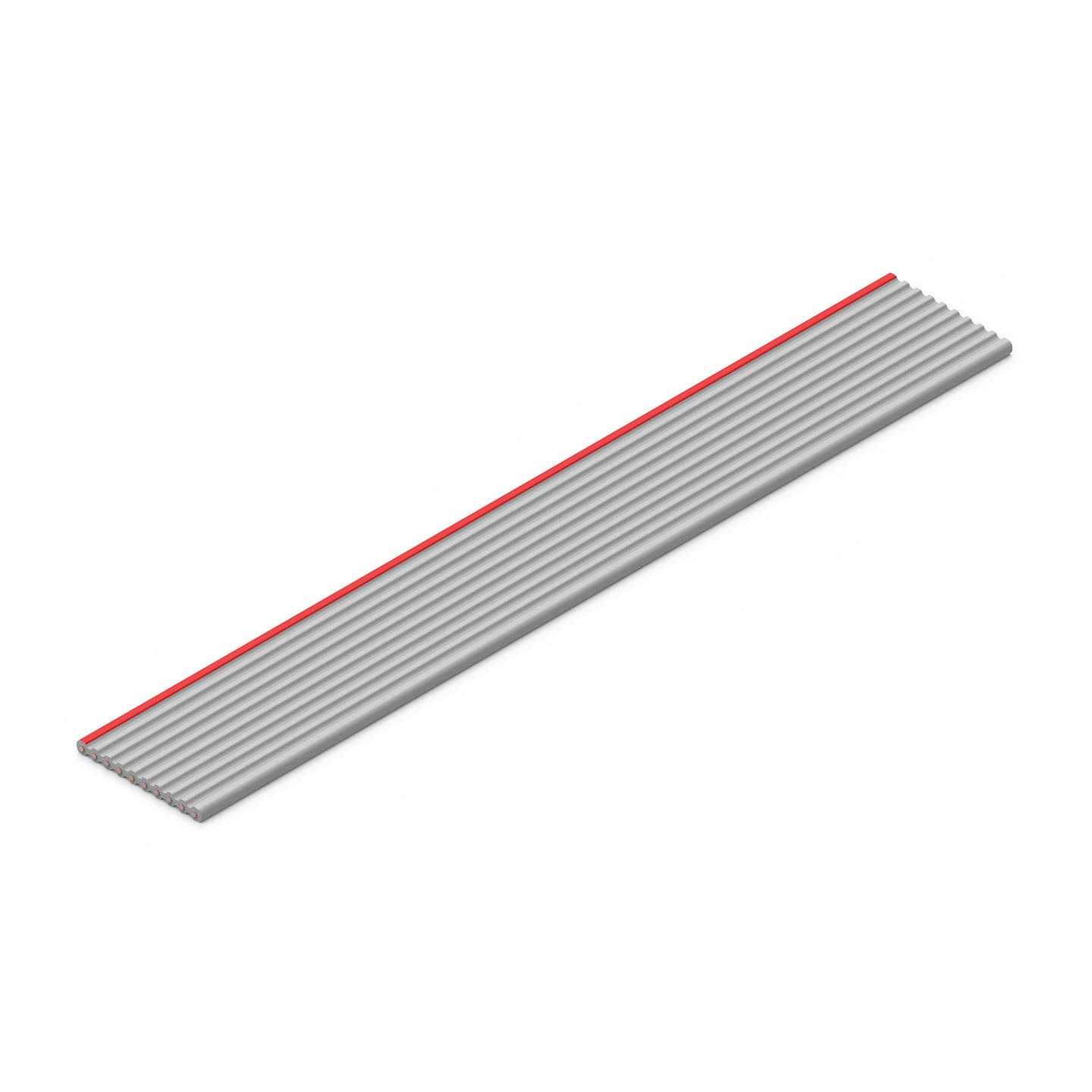

WR-CAB 1.00 mm Ribbon Flat Cable. Operating temperature -25 °C up to 105 °C. Dielectric strength 2000 V (AC)

General Information
Operating Temperature	-25 °C up to +105 °C
Flame Test	VW-1 IEC 332-1
Style	UL 2651
Pitch	1 mm
Conductor Material	Copper
Conductor Plating	Tin

Electrical Properties
V_R	300 V (RMS)
Withstanding Voltage	2000 V (AC)
R_ISO	100 MΩ
R	237 Ω
Unbalanced Impedance	90 Ω

Wire Properties
Stranded Wire Section (AWG)	28 (AWG)
Stranded Wire Section (Metric)	0.089 (mm²)

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	V_R (V (RMS))	R (Ω)	Test Condition R	Style	Insulator Material	Stranded Wire Section (AWG)	Packaging	Samples
63901015621	SPEC	3 files CAD files ZIP 3D 63901015621_1 (rev1).pdf \| 365.3 KB IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63901415621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63901615621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63902015621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63902415621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63902615621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63903415621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63904015621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel
63905015621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	1	300	237	1 Kilometer	UL 2651	PVC	28 (AWG)	Tape and Reel

Order Code	Datasheet
63901015621	SPEC
63901415621	SPEC
63901615621	SPEC
63902015621	SPEC
63902415621	SPEC
63902615621	SPEC
63903415621	SPEC
63904015621	SPEC
63905015621	SPEC
