General Information
Durability	1 500 Mating cycles
Quality Class	1 500 Mating cycles
Connector Type	USB

Material Properties
Insulator Flammability Rating	VW-1 IEC 332-1
Color	Black
Contact Material	Bronze
Contact Plating	Gold

Electrical Properties
I_R	0.5 A; 0.9 A; 3 A
Contact Resistance	5 Ω

Products

Order Code	Datasheet	Downloads	Status	Application	Interface Type	I_R (A)	Packaging
632905731122	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	USB 3.1 Cable Assembly	USB-3.1 C Male to 3.0 A Female	0.9	Bag

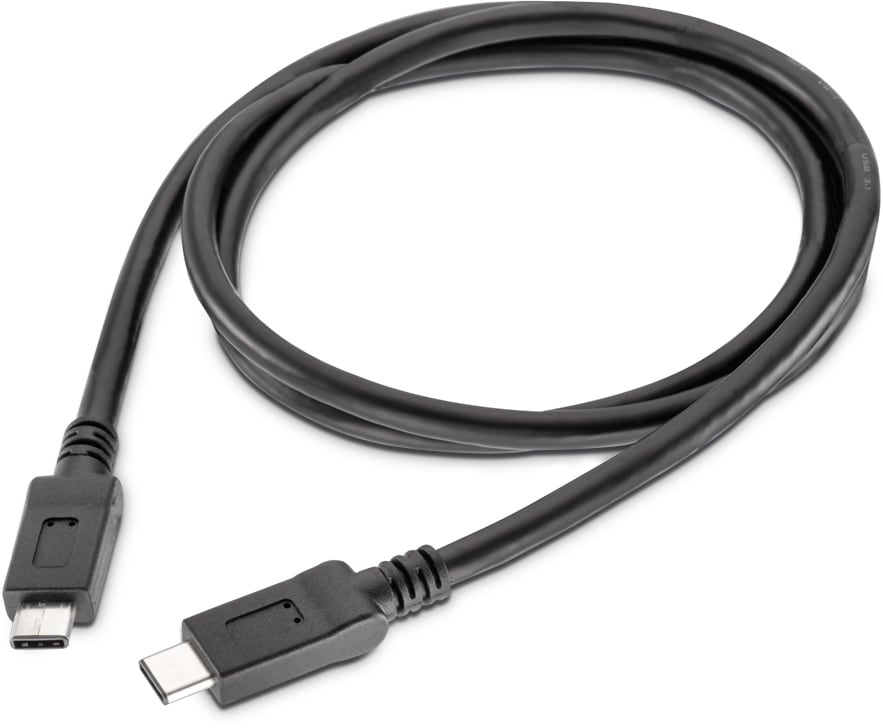

632910731731	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	USB 3.1 Cable Assembly	USB-3.1 C Male to 3.1 C Male	3	Bag
632910731611	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	USB 3.1 Cable Assembly	USB-3.1 C Male to 2.0 Micro B Male	0.5	Bag
632910731131	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	USB 3.1 Cable Assembly	USB-3.1 C Male to 3.1 A Male	0.9	Bag

	Order Code	Datasheet
	632905731122	SPEC
	632910731731	SPEC
	632910731611	SPEC
	632910731131	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Application	Interface Type	I_R (A)	Packaging	Samples
