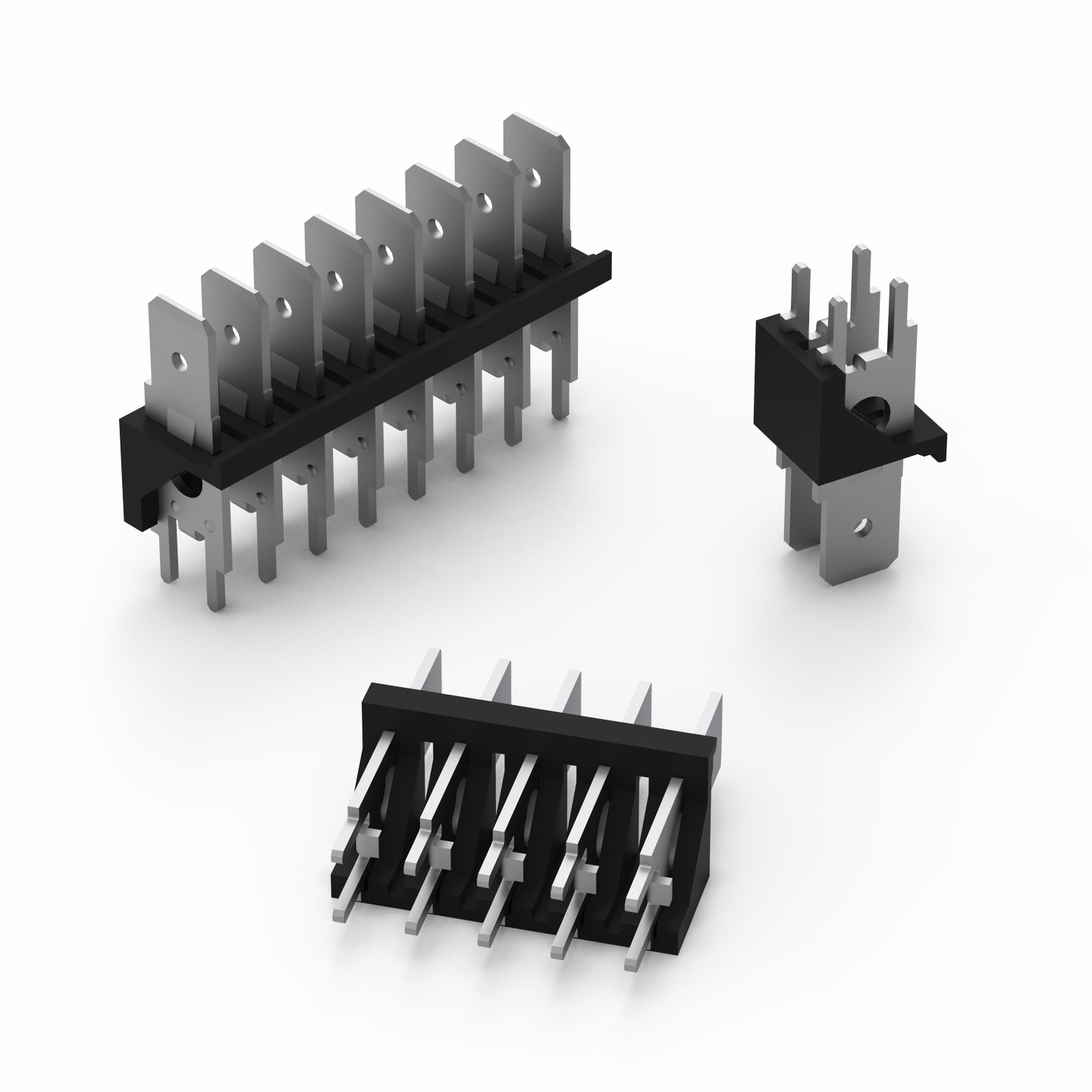

WR-FAST 5.08 mm THT Male Header Vertical Blade 6.3

General Information
Operating Temperature	-30 °C up to +120 °C
Working Voltage	300 V (AC)
Withstanding Voltage	1600 V (AC)
Contact Resistance	20 mΩ
R_ISO	5 MΩ
I_R	16 A
Pitch	5.08 mm
Gender	Male

Material Properties
Insulator Material	PC
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Steel
Contact Plating	Tin
Contact Type	Stamped

Certification
cULus Approval	E150931

Packaging Properties
Packaging	Box

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	L (mm)	Packaging	Design Kit
638263222002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638263222002 (rev1).pdf \| 57 KB IGS Download_IGES_638263222002 (rev1).iges \| 615.8 KB STP Download_STEP_638263222002 (rev1).stp \| 129.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5.08	Male	Vertical	THT	9.2	Box	612690 638001
638263222003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638263222003 (rev1).pdf \| 62.5 KB IGS Download_IGES_638263222003 (rev1).iges \| 722.8 KB STP Download_STEP_638263222003 (rev1).stp \| 154.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	5.08	Male	Vertical	THT	14.28	Box	638001
638263222004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638263222004 (rev1).pdf \| 68.1 KB IGS Download_IGES_638263222004 (rev1).iges \| 828.7 KB STP Download_STEP_638263222004 (rev1).stp \| 180.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	5.08	Male	Vertical	THT	19.36	Box	638001
638263222005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638263222005 (rev1).pdf \| 73.7 KB IGS Download_IGES_638263222005 (rev1).iges \| 936 KB STP Download_STEP_638263222005 (rev1).stp \| 205.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	5.08	Male	Vertical	THT	24.44	Box	638001
638263222006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638263222006 (rev1).pdf \| 79.4 KB IGS Download_IGES_638263222006 (rev1).iges \| 1 MB STP Download_STEP_638263222006 (rev1).stp \| 230.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	5.08	Male	Vertical	THT	29.52	Box	638001
638263222007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638263222007 (rev1).pdf \| 85 KB IGS Download_IGES_638263222007 (rev1).iges \| 1.1 MB STP Download_STEP_638263222007 (rev1).stp \| 264.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	5.08	Male	Vertical	THT	34.6	Box	638001
638263222008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638263222008 (rev1).pdf \| 90.7 KB IGS Download_IGES_638263222008 (rev1).iges \| 1.2 MB STP Download_STEP_638263222008 (rev1).stp \| 291 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	5.08	Male	Vertical	THT	39.68	Box	–
