OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-MM Mini Module GenderMale Cable side Product seriesWR-MM Male IDC Connector

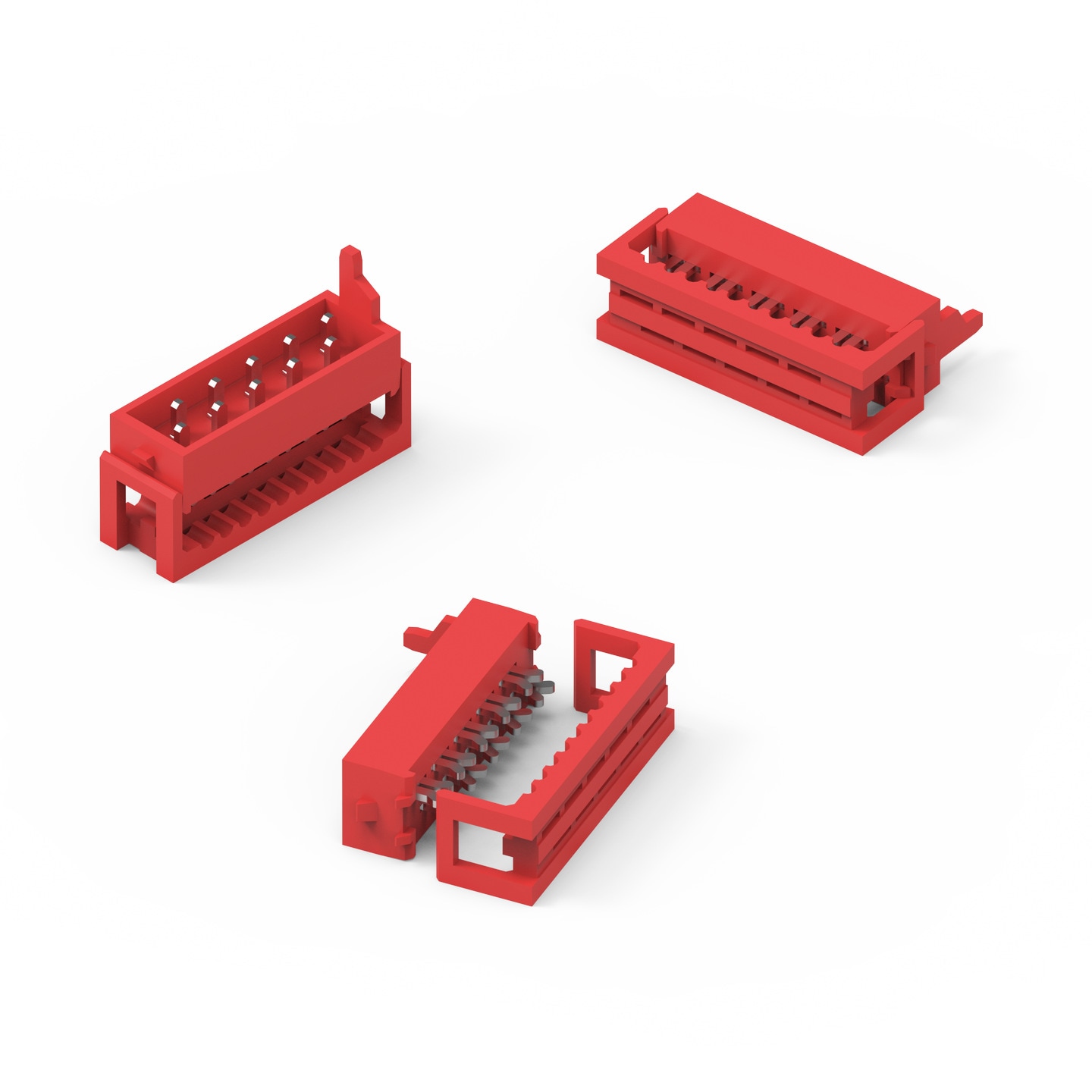

WR-MM Male IDC Connector. Dielectric strength 500 V (AC). Operating temperature from -40 °C up to 105 °C.

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Male IDC

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	L (mm)	Working Voltage (V (AC))	I_R (A)	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
	690157000472	SPEC	3 files CAD files ZIP 3D 690157000472 (rev1).pdf \| 93.5 KB IGS 690157000472 (rev1).iges \| 1.3 MB STP 690157000472 (rev1).stp \| 306.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.54	Male IDC	8.51	250	1	10	max.	Tube	690001
	690157000672	SPEC	3 files CAD files ZIP 3D 690157000672 (rev1).pdf \| 114.9 KB IGS 690157000672 (rev1).iges \| 1.5 MB STP 690157000672 (rev1).stp \| 355.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Male IDC	11.05	250	1	10	max.	Tube	690001
	690157000872	SPEC	3 files CAD files ZIP 3D 690157000872 (rev1).pdf \| 130.2 KB IGS 690157000872 (rev1).iges \| 1.8 MB STP 690157000872 (rev1).stp \| 408.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Male IDC	13.59	250	1	10	max.	Tube	690001
	690157001072	SPEC	3 files CAD files ZIP 3D 690157001072 (rev1).pdf \| 142.8 KB IGS 690157001072 (rev1).iges \| 2 MB STP 690157001072 (rev1).stp \| 461.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Male IDC	16.13	250	1	10	max.	Tube	612690 690001
	690157001272	SPEC	3 files CAD files ZIP 3D 690157001272 (rev1).pdf \| 159 KB IGS 690157001272 (rev1).iges \| 2.3 MB STP 690157001272 (rev1).stp \| 511.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	2.54	Male IDC	18.67	250	1	10	max.	Tube	690001
	690157001472	SPEC	3 files CAD files ZIP 3D 690157001472 (rev1).pdf \| 175.9 KB IGS 690157001472 (rev1).iges \| 2.5 MB STP 690157001472 (rev1).stp \| 569.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Male IDC	21.21	250	1	10	max.	Tube	690001
	690157001672	SPEC	3 files CAD files ZIP 3D 690157001672 (rev1).pdf \| 193.3 KB IGS 690157001672 (rev1).iges \| 2.7 MB STP 690157001672 (rev1).stp \| 617.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Male IDC	23.75	250	1	10	max.	Tube	690001
	690157001872	SPEC	3 files CAD files ZIP 3D 690157001872 (rev1).pdf \| 209.4 KB IGS 690157001872 (rev1).iges \| 3 MB STP 690157001872 (rev1).stp \| 669.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	2.54	Male IDC	26.29	250	1	10	max.	Tube	690001
	690157002072	SPEC	3 files CAD files ZIP 3D 690157002072 (rev1).pdf \| 224.6 KB IGS 690157002072 (rev1).iges \| 3.2 MB STP 690157002072 (rev1).stp \| 727.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Male IDC	28.83	250	1	10	max.	Tube	690001
	690157002272	SPEC	3 files CAD files ZIP 3D 690157002272 (rev1).pdf \| 241.6 KB IGS 690157002272 (rev1).iges \| 3.4 MB STP 690157002272 (rev1).stp \| 779.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	2.54	Male IDC	31.37	250	1	10	max.	Tube	690001
	690157002472	SPEC	3 files CAD files ZIP 3D 690157002472 (rev1).pdf \| 258.6 KB IGS 690157002472 (rev1).iges \| 3.7 MB STP 690157002472 (rev1).stp \| 835 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	2.54	Male IDC	33.91	250	1	10	max.	Tube	690001
	690157002672	SPEC	3 files CAD files ZIP 3D 690157002672 (rev1).pdf \| 275.9 KB IGS 690157002672 (rev1).iges \| 3.9 MB STP 690157002672 (rev1).stp \| 891.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Male IDC	36.45	250	1	10	max.	Tube	690001
