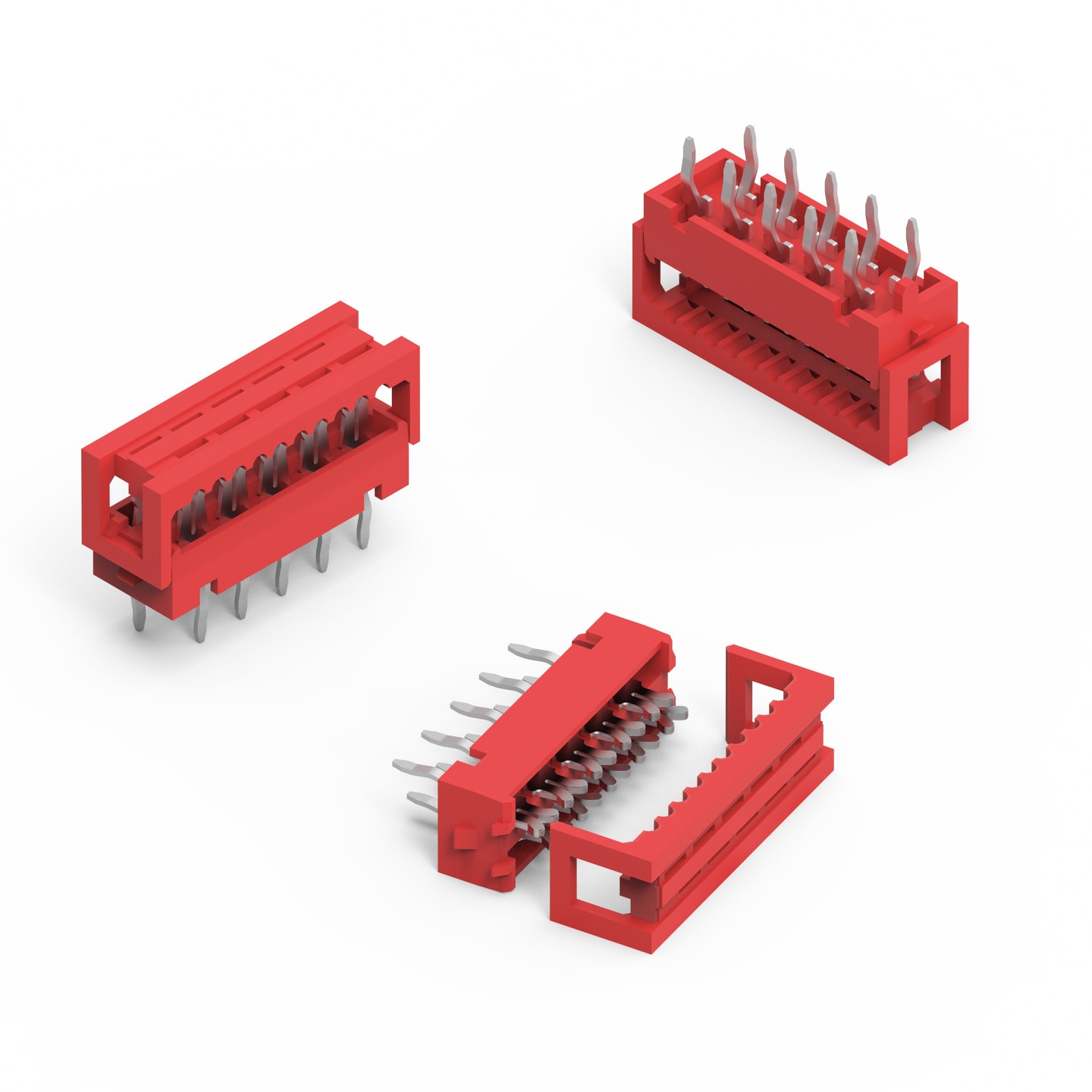

WR-MM Transition Connector

WR-MM Transition Connector. Dielectric strength 500 V (AC). Operating temperature from -40 °C up to 105 °C.

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Red
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Gender	Transition

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	L (mm)	Working Voltage (V (AC))	I_R (A)	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit
690207100472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207100472 (rev1).pdf \| 105.9 KB IGS Download_IGES_690207100472 (rev1).iges \| 1.6 MB STP 690207100472 (rev1).stp \| 361 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.54	Transition	8.51	250	1	10	max.	Tube	690001
690207100672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207100672 (rev1).pdf \| 122.8 KB IGS Download_IGES_690207100672 (rev1).iges \| 1.8 MB STP 690207100672 (rev1).stp \| 418.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Transition	11.05	250	1	10	max.	Tube	690001
690207100872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207100872 (rev1).pdf \| 141.6 KB IGS Download_IGES_690207100872 (rev1).iges \| 2.1 MB STP 690207100872 (rev1).stp \| 483.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Transition	13.59	250	1	10	max.	Tube	690001
690207101072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207101072 (rev1).pdf \| 156.2 KB IGS Download_IGES_690207101072 (rev1).iges \| 2.4 MB STP 690207101072 (rev1).stp \| 541.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Transition	16.13	250	1	10	max.	Tube	612690 690001
690207101272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207101272 (rev1).pdf \| 174.3 KB IGS Download_IGES_690207101272 (rev1).iges \| 2.6 MB STP 690207101272 (rev1).stp \| 599.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	2.54	Transition	18.67	250	1	10	max.	Tube	690001
690207101472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207101472 (rev1).pdf \| 193.3 KB IGS Download_IGES_690207101472 (rev1).iges \| 2.9 MB STP 690207101472 (rev1).stp \| 669.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Transition	21.21	250	1	10	max.	Tube	690001
690207101672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207101672 (rev1).pdf \| 214.5 KB IGS Download_IGES_690207101672 (rev1).iges \| 3.1 MB STP 690207101672 (rev1).stp \| 729.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Transition	23.75	250	1	10	max.	Tube	690001
690207101872	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207101872 (rev1).pdf \| 232.9 KB IGS Download_IGES_690207101872 (rev1).iges \| 3.4 MB STP 690207101872 (rev1).stp \| 787.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	2.54	Transition	26.29	250	1	10	max.	Tube	690001
690207102072	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207102072 (rev1).pdf \| 251.9 KB IGS Download_IGES_690207102072 (rev1).iges \| 3.7 MB STP 690207102072 (rev1).stp \| 851.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Transition	28.83	250	1	10	max.	Tube	690001
690207102272	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207102272 (rev1).pdf \| 270.8 KB IGS Download_IGES_690207102272 (rev1).iges \| 3.9 MB STP 690207102272 (rev1).stp \| 912.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	2.54	Transition	31.37	250	1	10	max.	Tube	690001
690207102472	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207102472 (rev1).pdf \| 288.9 KB IGS Download_IGES_690207102472 (rev1).iges \| 4.2 MB STP 690207102472 (rev1).stp \| 972 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	2.54	Transition	33.91	250	1	10	max.	Tube	690001
690207102672	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MM (rev22a).IntLib \| 16.3 MB CDS Cadence_WR-MM (rev19a).zip \| 12.4 MB EAG Eagle_WR-MM (rev20b).lbr \| 1.1 MB CAD files ZIP 3D 690207102672 (rev1).pdf \| 307.8 KB IGS Download_IGES_690207102672 (rev1).iges \| 4.5 MB STP 690207102672 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Transition	36.45	250	1	10	max.	Tube	690001
