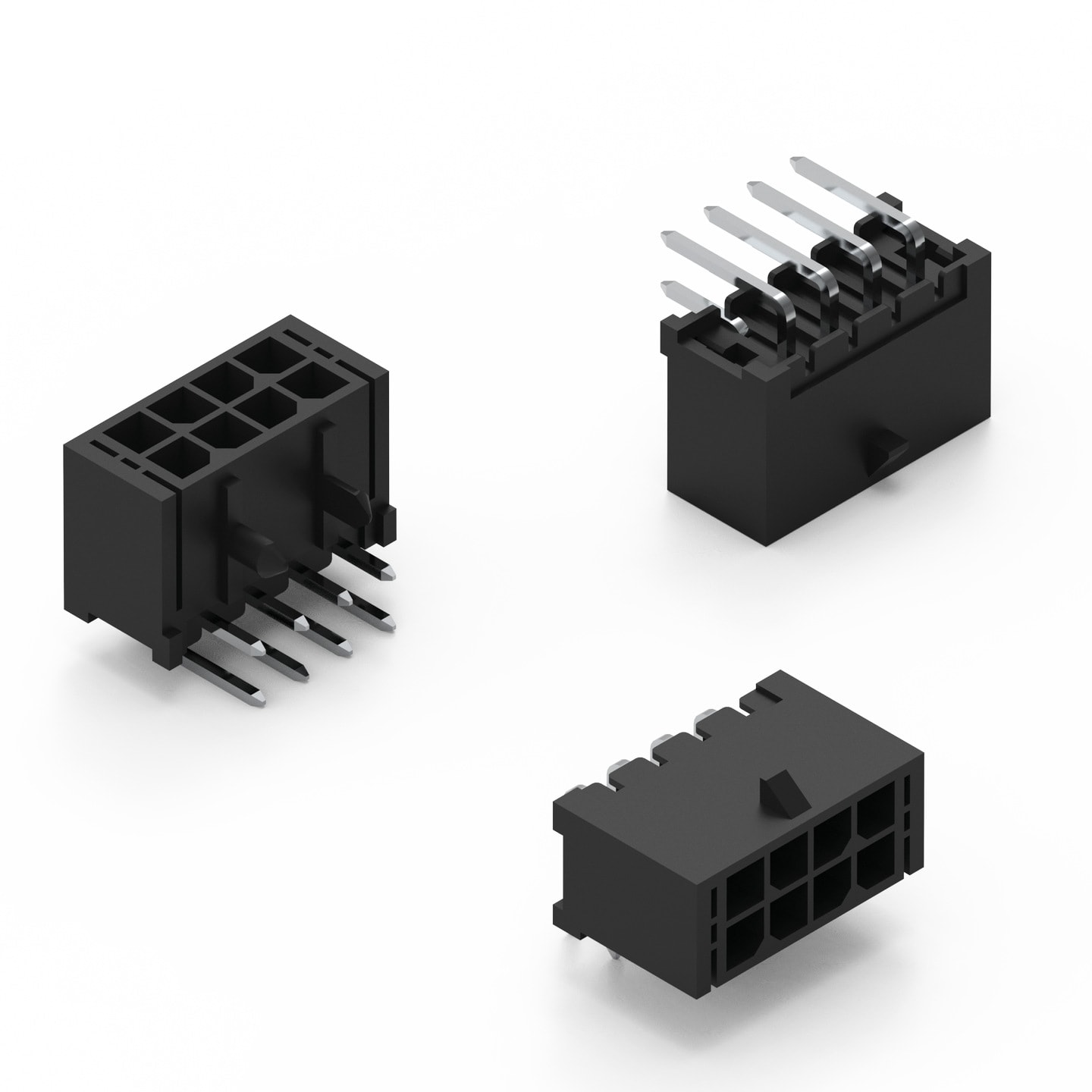

WR-MPC3 3.00 mm Male Header Dual Row Right Angled with Plastic Pegs - THT - Tin

General Informations
Pitch	3 mm
Rows	Dual
Type	Right Angled
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tube

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Pins (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
66200221022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_62000221022 (rev1).pdf \| 83 KB IGS 66200221022 (rev1).iges \| 1.1 MB STP 66200221022 (rev1).stp \| 246.7 KB Download all 6 files as zip archive ZIP	2	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66200421022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_62000421022 (rev1).pdf \| 94.8 KB IGS 66200421022 (rev1).iges \| 1.3 MB STP 66200421022 (rev1).stp \| 293.8 KB Download all 6 files as zip archive ZIP	4	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66200621022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66200621022 (rev1).pdf \| 107.2 KB IGS 66200621022 (rev1).iges \| 1.5 MB STP 66200621022 (rev1).stp \| 339.2 KB Download all 6 files as zip archive ZIP	6	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	612690 662001
66200821022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66200821022 (rev1).pdf \| 116.8 KB IGS 66200821022 (rev1).iges \| 1.7 MB STP 66200821022 (rev1).stp \| 381.1 KB Download all 6 files as zip archive ZIP	8	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66201021022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66201021022 (rev1).pdf \| 129.7 KB IGS 66201021022 (rev1).iges \| 1.9 MB STP 66201021022 (rev1).stp \| 429.5 KB Download all 6 files as zip archive ZIP	10	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66201221022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66201221022 (rev1).pdf \| 142.4 KB IGS 66201221022 (rev1).iges \| 2.1 MB STP 66201221022 (rev1).stp \| 477.9 KB Download all 6 files as zip archive ZIP	12	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66201421022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66201421022 (rev1).pdf \| 155.3 KB IGS 66201421022 (rev1).iges \| 2.3 MB STP 66201421022 (rev1).stp \| 528.1 KB Download all 6 files as zip archive ZIP	14	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66201621022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66201621022 (rev1).pdf \| 167.5 KB IGS 66201621022 (rev1).iges \| 2.5 MB STP 66201621022 (rev1).stp \| 635.6 KB Download all 6 files as zip archive ZIP	16	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66201821022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66201821022 (rev1).pdf \| 179.9 KB IGS 66201821022 (rev1).iges \| 2.7 MB STP 66201821022 (rev1).stp \| 622.6 KB Download all 6 files as zip archive ZIP	18	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66202021022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66202021022 (rev1).pdf \| 192.9 KB IGS 66202021022 (rev1).iges \| 2.9 MB STP 66202021022 (rev1).stp \| 673.1 KB Download all 6 files as zip archive ZIP	20	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66202221022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66202221022 (rev1).pdf \| 204.9 KB IGS 66202221022 (rev1).iges \| 3.1 MB STP 66202221022 (rev1).stp \| 721.7 KB Download all 6 files as zip archive ZIP	22	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001
66202421022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D Download_3D_66202421022 (rev1).pdf \| 218 KB IGS 66202421022 (rev1).iges \| 3.3 MB STP 66202421022 (rev1).stp \| 771.3 KB Download all 6 files as zip archive ZIP	24	3	Male	Right Angled	Dual	THT	5	250	10	Tin	Tube	662001

Order Code	Datasheet
66200221022	SPEC
66200421022	SPEC
66200621022	SPEC
66200821022	SPEC
66201021022	SPEC
66201221022	SPEC
66201421022	SPEC
66201621022	SPEC
66201821022	SPEC
66202021022	SPEC
66202221022	SPEC
66202421022	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Dual Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MPC3 Micro PowerConnectors
