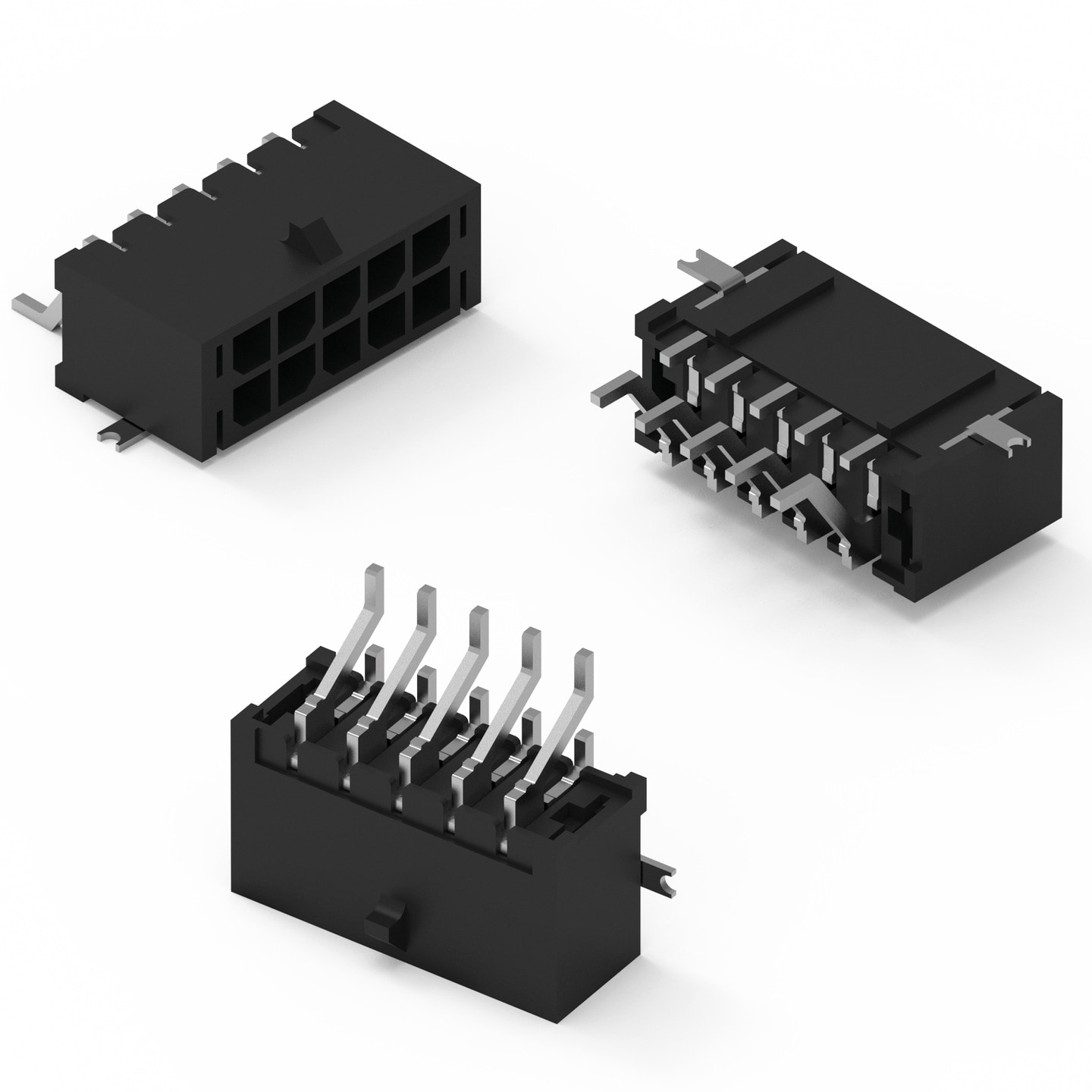

WR-MPC3 3.00 mm Male Header Dual Row Right Angled with SMT Solder Tabs - SMT – Tin

General Informations
Pitch	3 mm
Rows	Dual
Type	Right Angled
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tray

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Pins (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
662002231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662002231722 (rev1).pdf \| 68.8 KB IGS Download_IGES_662002231722 (rev1).iges \| 1.1 MB STP 662002231722 (rev1).stp \| 257.1 KB Download all 6 files as zip archive ZIP	2	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662004231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662004231722 (rev1).pdf \| 83.6 KB IGS Download_IGES_662004231722 (rev1).iges \| 1.3 MB STP 662004231722 (rev1).stp \| 303.5 KB Download all 6 files as zip archive ZIP	4	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662006231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662006231722 (rev1).pdf \| 93.7 KB IGS Download_IGES_662006231722 (rev1).iges \| 1.5 MB STP 662006231722 (rev1).stp \| 339.4 KB Download all 6 files as zip archive ZIP	6	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662008231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662008231722 (rev1).pdf \| 106 KB IGS Download_IGES_662008231722 (rev1).iges \| 1.7 MB STP 662008231722 (rev1).stp \| 387.2 KB Download all 6 files as zip archive ZIP	8	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662010231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662010231722 (rev1).pdf \| 115.9 KB IGS Download_IGES_662010231722 (rev1).iges \| 1.8 MB STP 662010231722 (rev1).stp \| 424.6 KB Download all 6 files as zip archive ZIP	10	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662012231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662012231722 (rev1).pdf \| 129 KB IGS Download_IGES_662012231722 (rev1).iges \| 2 MB STP 662012231722 (rev1).stp \| 472.6 KB Download all 6 files as zip archive ZIP	12	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662014231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662014231722 (rev1).pdf \| 139.2 KB IGS Download_IGES_662014231722 (rev1).iges \| 2.2 MB STP 662014231722 (rev1).stp \| 508.8 KB Download all 6 files as zip archive ZIP	14	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662016231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662016231722 (rev1).pdf \| 151.3 KB IGS Download_IGES_662016231722 (rev1).iges \| 2.4 MB STP 662016231722 (rev1).stp \| 554.9 KB Download all 6 files as zip archive ZIP	16	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662018231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662018231722 (rev1).pdf \| 161.5 KB IGS Download_IGES_662018231722 (rev1).iges \| 2.6 MB STP 662018231722 (rev1).stp \| 595.4 KB Download all 6 files as zip archive ZIP	18	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662020231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662020231722 (rev1).pdf \| 174.3 KB IGS Download_IGES_662020231722 (rev1).iges \| 2.8 MB STP 662020231722 (rev1).stp \| 638.1 KB Download all 6 files as zip archive ZIP	20	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662022231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662022231722 (rev1).pdf \| 184.7 KB IGS Download_IGES_662022231722 (rev1).iges \| 2.9 MB STP 662022231722 (rev1).stp \| 682.4 KB Download all 6 files as zip archive ZIP	22	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001
662024231722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662024231722 (rev1).pdf \| 196.8 KB IGS Download_IGES_662024231722 (rev1).iges \| 3.2 MB STP 662024231722 (rev1).stp \| 737.1 KB Download all 6 files as zip archive ZIP	24	3	Male	Right Angled	Dual	SMT	5	250	10	Tin	Tray	662001

Order Code	Datasheet
662002231722	SPEC
662004231722	SPEC
662006231722	SPEC
662008231722	SPEC
662010231722	SPEC
662012231722	SPEC
662014231722	SPEC
662016231722	SPEC
662018231722	SPEC
662020231722	SPEC
662022231722	SPEC
662024231722	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Dual Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
