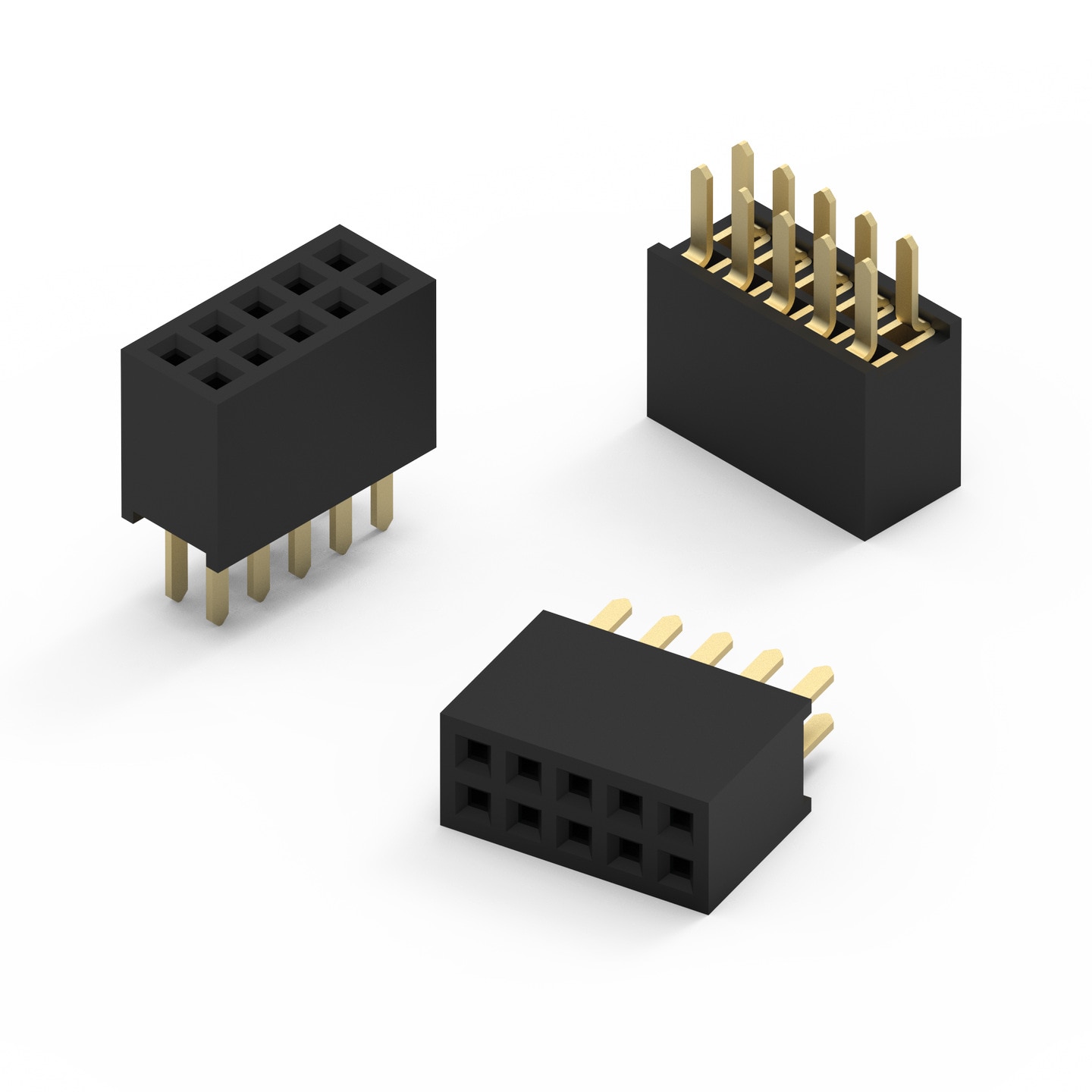

WR-PHD 1.27 mm Dual Socket Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	4 pcs; 8 pcs; 10 pcs; 14 pcs; 16 pcs; 20 pcs; 28 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	1.27 mm
Durability	50 Cycles
Rows	Dual
Gender	Socket Header
Type	Straight

Electrical Properties
Withstanding Voltage	300 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	62200421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62200421821_1 (rev1).pdf \| 62.8 KB IGS Download_IGES_62200421821 (rev1).iges \| 940.2 KB STP 62200421821 (rev1).stp \| 219.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Straight	1	Tube	613001
	62200821821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62200821821_1 (rev1).pdf \| 86.4 KB IGS Download_IGES_62200821821 (rev1).iges \| 1.4 MB STP 62200821821 (rev1).stp \| 324.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Straight	1	Tube	613001
	62201021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62201021821_1 (rev1).pdf \| 97.8 KB IGS Download_IGES_62201021821 (rev1).iges \| 1.6 MB STP 62201021821 (rev1).stp \| 377.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Straight	1	Tube	613001
	62201421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62201421821_1 (rev1).pdf \| 120.7 KB IGS Download_IGES_62201421821 (rev1).iges \| 2 MB STP 62201421821 (rev1).stp \| 481.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Socket Header	Straight	1	Tube	613001
	62201621821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62201621821_1 (rev1).pdf \| 132.2 KB IGS Download_IGES_62201621821 (rev1).iges \| 2.2 MB STP 62201621821 (rev1).stp \| 540.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Straight	1	Tube	613001
	62202021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62202021821_1 (rev1).pdf \| 154.9 KB IGS Download_IGES_62202021821 (rev1).iges \| 2.7 MB STP 62202021821 (rev1).stp \| 656.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Straight	1	Tube	613001
	62202821821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62202821821_1 (rev1).pdf \| 201.4 KB IGS Download_IGES_62202821821 (rev1).iges \| 3.5 MB STP 62202821821 (rev1).stp \| 887.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	28	Dual	Socket Header	Straight	1	Tube	613001

	Order Code	Datasheet
	62200421821	SPEC
	62200821821	SPEC
	62201021821	SPEC
	62201421821	SPEC
	62201621821	SPEC
	62202021821	SPEC
	62202821821	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 1.27 mm SMT Dual Pin Header, H=3.80 mm

WR-PHD 1.27 mm THT Dual Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
