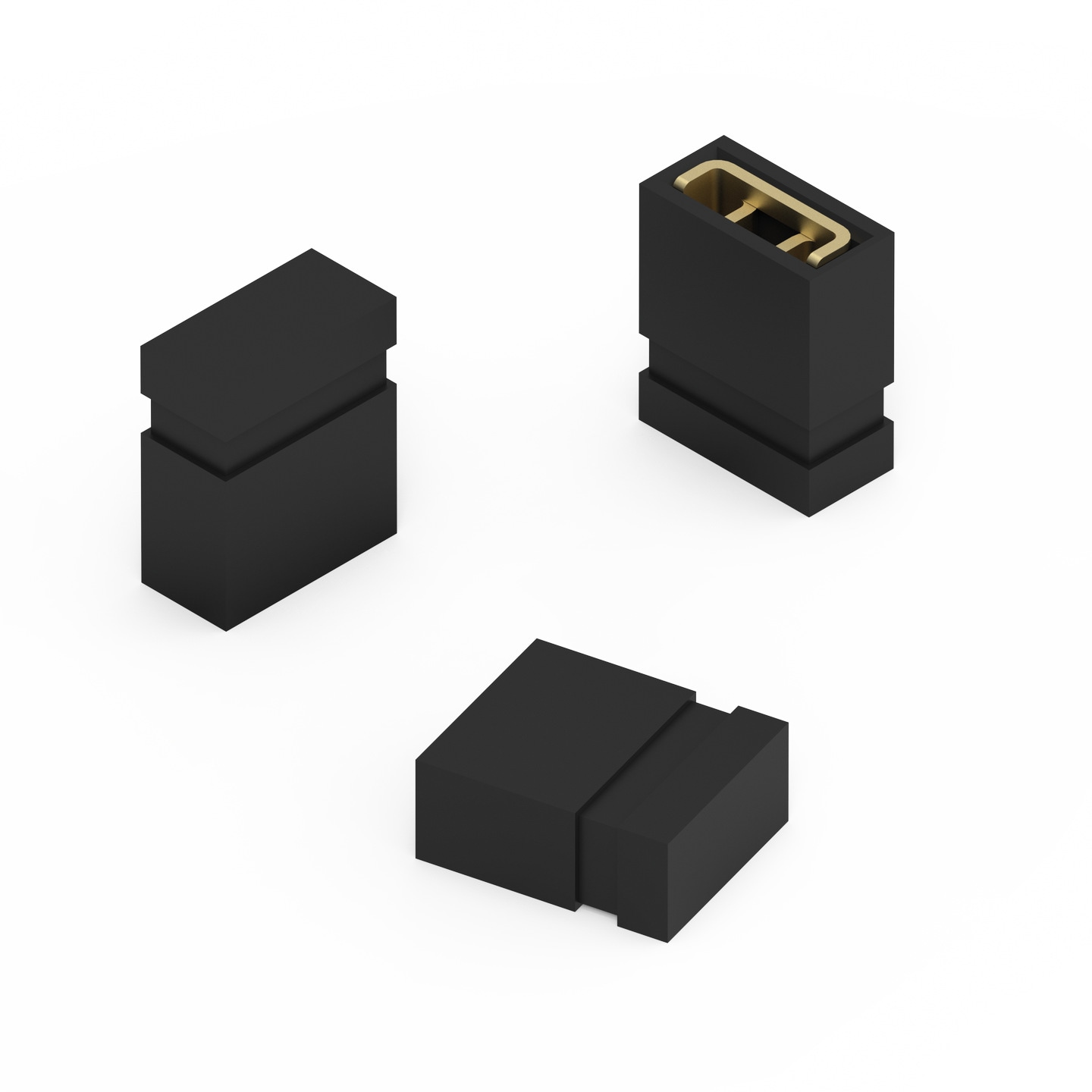

WR-PHD 1.27 mm Jumper 1x2

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	1 pcs

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-2
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +125 °C
Pitch	1.27 mm
Gender	Jumper

Electrical Properties
I_R	1 A
Withstanding Voltage	650 V (AC)
Contact Resistance	30 mΩ
R_ISO	1000 MΩ

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Gender	I_R (A)	Packaging	Design Kit	Samples
	62200213421	SPEC	3 files CAD files ZIP 3D 3D_62200213421 (rev1).pdf \| 48.6 KB IGS 62200213421 (rev1).iges \| 684.5 KB STP 62200213421 (rev1).stp \| 163.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Jumper	1	Bag	613001

	Order Code	Datasheet
	62200213421	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Gender	I_R (A)	Packaging	Design Kit	Samples

Suitable for

WR-PHD 1.27 mm THT Dual Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
