WR-PHD 2.00 mm Socket Header | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-PHD Pin Header & Socket Header Pitch2.00 mm TypeSocket Header Product seriesWR-PHD 2.00 mm Socket Header

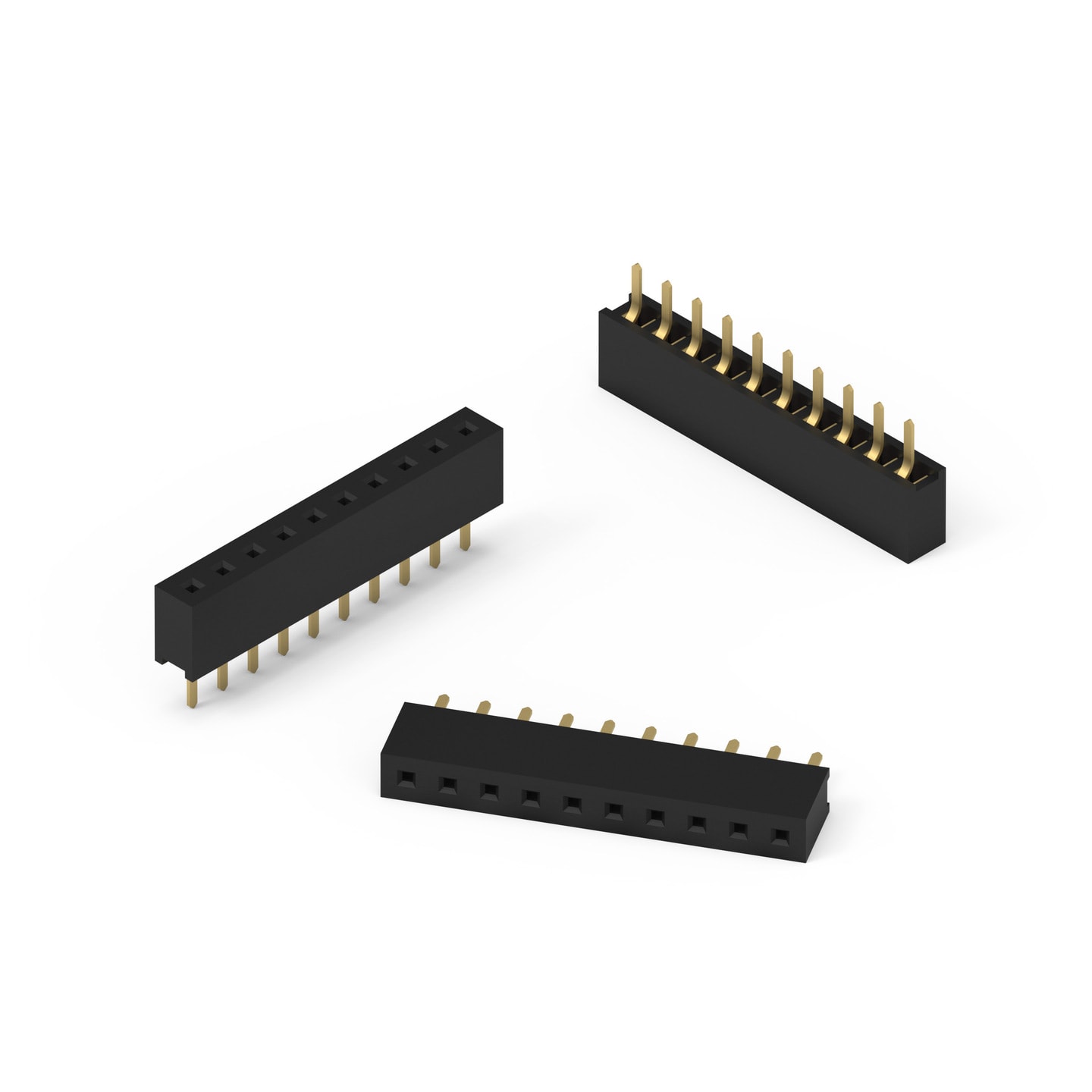

WR-PHD 2.00 mm Socket Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	2 pcs; 4 pcs; 6 pcs; 8 pcs; 10 pcs; 20 pcs; 32 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2 mm
Durability	50 Cycles
Rows	Single
Gender	Socket Header
Type	Straight

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	62000211821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62000211821_1 (rev1).pdf \| 52.3 KB IGS Download_IGES_62000211821 (rev1).iges \| 693.6 KB STP 62000211821 (rev1).stp \| 271.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Single	Socket Header	Straight	2	Tube	–
	62000411821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62000411821_1 (rev1).pdf \| 60.8 KB IGS Download_IGES_62000411821 (rev1).iges \| 870.3 KB STP 62000411821 (rev1).stp \| 344.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Single	Socket Header	Straight	2	Tube	613001
	62000611821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62000611821_1 (rev1).pdf \| 71.2 KB IGS Download_IGES_62000611821 (rev1).iges \| 1 MB STP 62000611821 (rev1).stp \| 418.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Single	Socket Header	Straight	2	Tube	–
	62000811821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62000811821_1 (rev1).pdf \| 80.4 KB IGS Download_IGES_62000811821 (rev1).iges \| 1.2 MB STP 62000811821 (rev1).stp \| 491.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Single	Socket Header	Straight	2	Tube	613001
	62001011821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62001011821_1 (rev1).pdf \| 89.4 KB IGS Download_IGES_62001011821 (rev1).iges \| 1.4 MB STP 62001011821 (rev1).stp \| 565.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Single	Socket Header	Straight	2	Tube	612690 613001
	62002011821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62002011821_1 (rev1).pdf \| 135.4 KB IGS Download_IGES_62002011821 (rev1).iges \| 2.2 MB STP 62002011821 (rev1).stp \| 945.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Single	Socket Header	Straight	2	Tube	613001
	62003211821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 62003211821_1 (rev1).pdf \| 192.2 KB IGS Download_IGES_62003211821 (rev1).iges \| 3.3 MB STP 62003211821 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	Socket Header	Straight	2	Tube	613001

	Order Code	Datasheet
	62000211821	SPEC
	62000411821	SPEC
	62000611821	SPEC
	62000811821	SPEC
	62001011821	SPEC
	62002011821	SPEC
	62003211821	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.00 mm THT Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-PHD Pin & Socket Header
