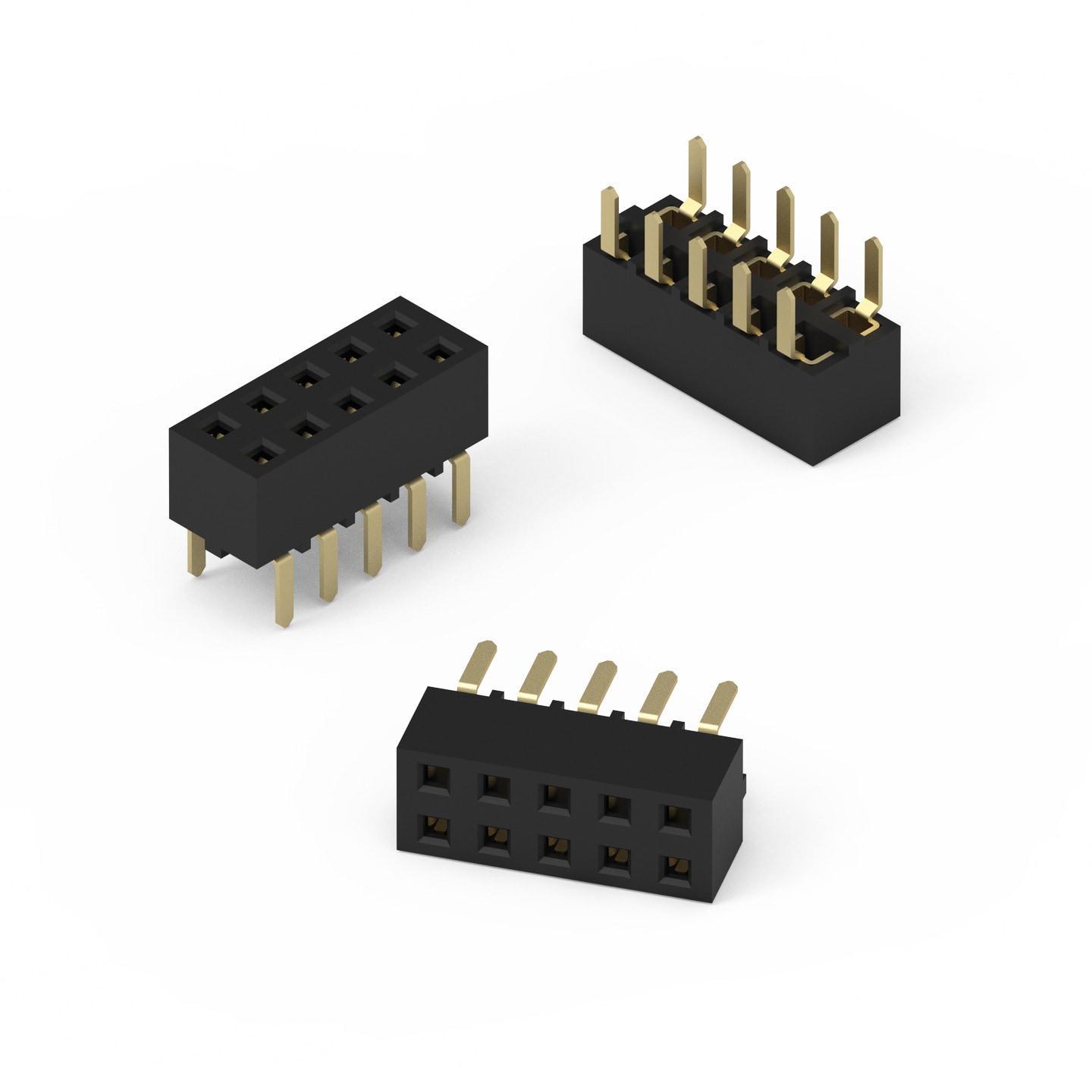

WR-PHD 2.54 mm Dual Socket Header Bottom Entry

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4; 6; 8; 10; 12; 16; 20; 24; 26; 32; 34

Material Properties
Insulator Material	Nylon 9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Socket Header
Type	Bottom Entry

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
61300425721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61300425721_1 (rev1).pdf \| 61.6 KB IGS 61300425721 (rev1).igs \| 854.6 KB STP 61300425721 (rev1).stp \| 315.2 KB	4	Dual	Socket Header	Bottom Entry	3	Tube	–
61300625721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61300625721_1 (rev1).pdf \| 71.7 KB IGS 61300625721 (rev1).igs \| 1012.7 KB STP 61300625721 (rev1).stp \| 378.4 KB	6	Dual	Socket Header	Bottom Entry	3	Tube	–
61300825721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61300825721_1 (rev1).pdf \| 78.6 KB IGS 61300825721 (rev1).igs \| 1.1 MB STP 61300825721 (rev1).stp \| 441.7 KB	8	Dual	Socket Header	Bottom Entry	3	Tube	613001
61301025721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61301025721_1 (rev1).pdf \| 86.5 KB IGS 61301025721 (rev1).igs \| 1.3 MB STP 61301025721 (rev1).stp \| 505 KB	10	Dual	Socket Header	Bottom Entry	3	Tube	613001
61301225721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61301225721_1 (rev1).pdf \| 94.4 KB IGS 61301225721 (rev1).igs \| 1.5 MB STP 61301225721 (rev1).stp \| 568.3 KB	12	Dual	Socket Header	Bottom Entry	3	Tube	–
61301625721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61301625721_1 (rev1).pdf \| 110.4 KB IGS 61301625721 (rev1).igs \| 1.8 MB STP 61301625721 (rev1).stp \| 706.9 KB	16	Dual	Socket Header	Bottom Entry	3	Tube	–
61302025721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61302025721_1 (rev1).pdf \| 126.1 KB IGS 61302025721 (rev1).igs \| 2.1 MB STP 61302025721 (rev1).stp \| 829.5 KB	20	Dual	Socket Header	Bottom Entry	3	Tube	613001
61302425721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	5 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP IGS 61302425721 (rev1).igs \| 2.4 MB STP 61302425721 (rev1).stp \| 961.4 KB	24	Dual	Socket Header	Bottom Entry	3	Tube	–
61302625721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61302625721_1 (rev1).pdf \| 150.3 KB IGS 61302625721 (rev1).igs \| 2.5 MB STP 61302625721 (rev1).stp \| 1 MB	26	Dual	Socket Header	Bottom Entry	3	Tube	–
61303225721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61303225721_1 (rev1).pdf \| 174.6 KB IGS 61303225721 (rev1).igs \| 3 MB STP 61303225721 (rev1).stp \| 1.2 MB	32	Dual	Socket Header	Bottom Entry	3	Tube	–
61303425721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61303425721_1 (rev1).pdf \| 182.4 KB IGS 61303425721 (rev1).igs \| 3.2 MB STP 61303425721 (rev1).stp \| 1.3 MB	34	Dual	Socket Header	Bottom Entry	3	Tube	–

Order Code	Datasheet
61300425721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61300625721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61300825721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61301025721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61301225721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61301625721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61302025721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61302425721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61302625721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61303225721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61303425721	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm THT Angled Dual Pin Header

WR-PHD 2.54 mm SMT Pin Header Double Row Right Angled

WR-PHD 2.54 mm THT Dual Pin Header

WR-PHD 2.54 mm SMT Dual Pin Header

WR-PHD 2.54 mm THT Dual Board Stacker
