WS-RSTV Ø 20.2 mm panel cut-out rocker switch with 0.187" quick connect terminal (SPST)

WS-RSTV Ø 20.2 mm panel cut-out rocker switch with 0.187" quick connect terminal (SPST)
Material Properties
Actuator MaterialPA66
Actuator Flammability RatingUL94 V-2
Frame MaterialPA66
Frame Flammability RatingUL94 V-2
Moveable Contact MaterialCopper Alloy
Moveable Contact PlatingSilver
Stationary Contact MaterialCopper Alloy
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Mechanical Properties
Electrical Life10000 Cycles
SchematicSPST
General Information
Operating Temperature0 °C up to +85 °C
Ingress Protection CodeNone
Packaging Properties
PackagingTray
Certification
UL ApprovalE483308
ENEC 15 ApprovalENEC-03145
CQC Approvalreleased
Glow Wire ApprovalGWEPT: 750

Products

Order Code Data­sheet Downloads StatusDescriptionVR
(V (AC))		Actuator ColorSchematic Samples
471002268142SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. Marking 0 - 250 Black SPST
471002268143SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. Marking 0 I 250 Black SPST
Order Code Data­sheet
471002268142SPEC
471002268143SPEC
Samples
Order Code Data­sheet Downloads StatusDescriptionVR
(V (AC))		Actuator ColorSchematic Samples

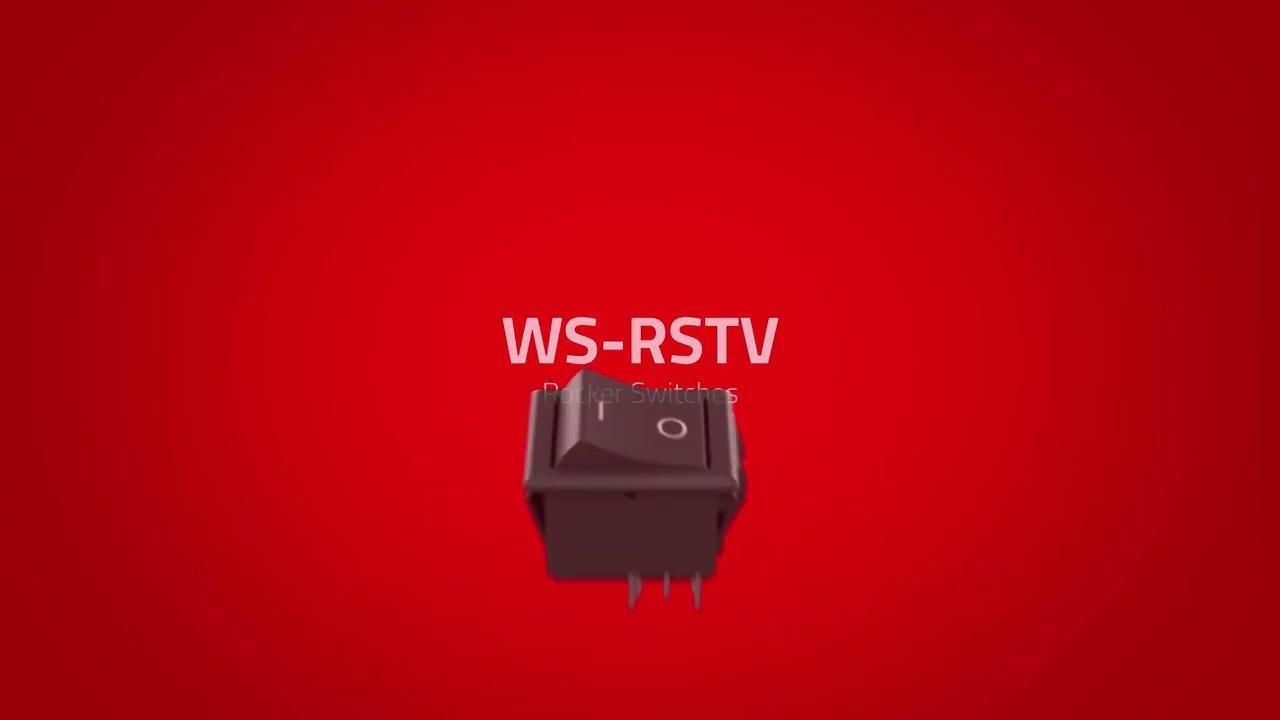

Let's meet our WS-RSTV Rocker Switches series

WS-RSTV Rocker Switches

Introducing the Würth Elektronik Rocker Switch Series WS-RSTV - the ultimate solution for your switching needs. With UL/IEC/CQC 61058 certification and CE UKCA compliance, you can be assured of its quality and safety. Available in current ratings of 12, 28 and 60 VDC, these switches are built to last. And with a UV test certification of 60068-2-5, you can be confident that they can withstand even the harshest conditions. Try the WS-RSTV today and experience the difference.
