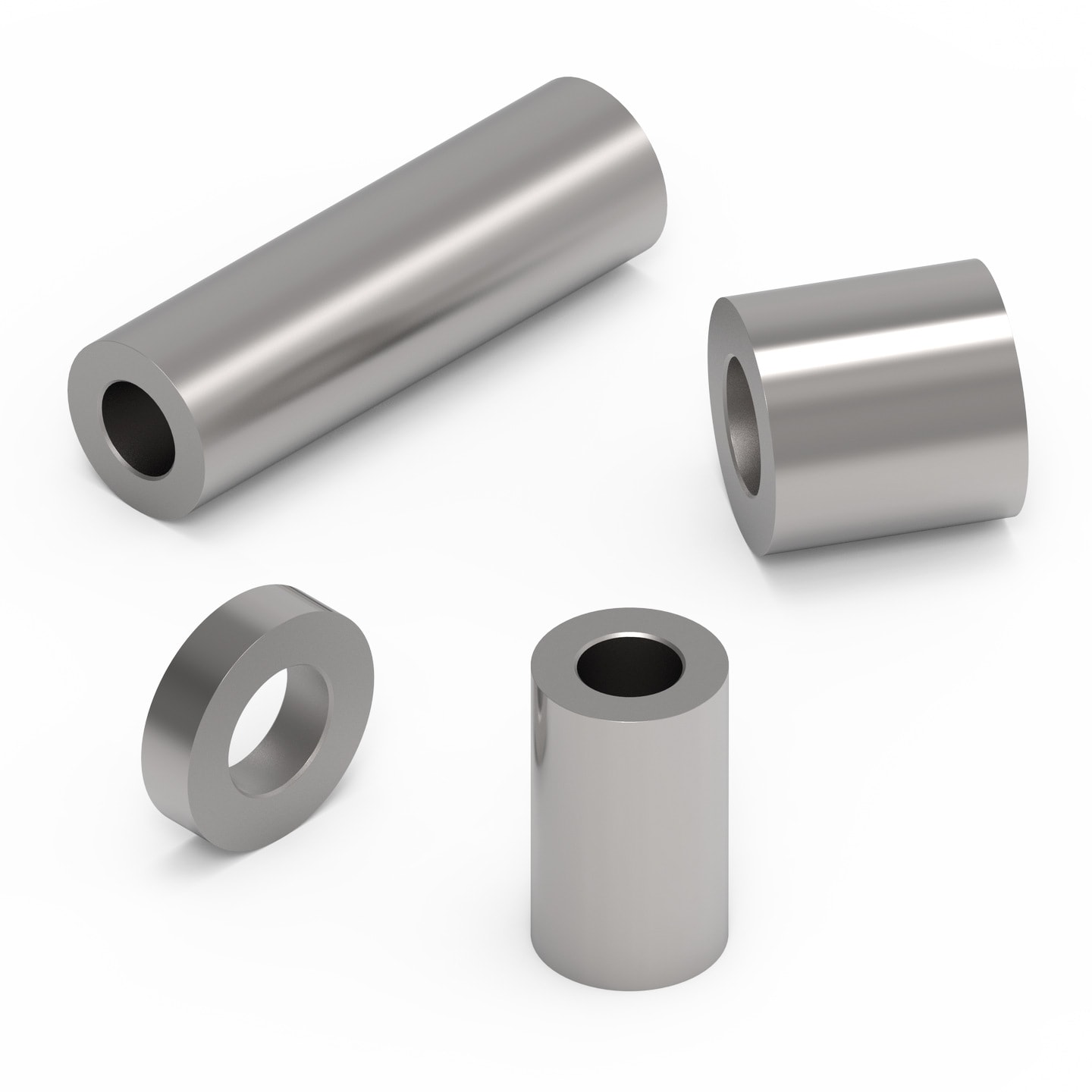

WA-SBRRO Round Brass Spacers

Applications

For use where high mechanical strength is required

General Information
Operating Temperature	-55 °C up to +150 °C
Material	Brass
Surface	Nickel (Ni)

Packaging Properties
Packaging	Bulk

Properties
Material	Brass

Products

Order Code	Datasheet	Downloads	Status	L (mm)	Ø ID (mm)	Ø OD (mm)
963010042	SPEC	3 files CAD files ZIP 3D 3D_963010042 (rev1).pdf \| 25.3 KB IGS Download_IGS_963010042 (rev1).igs \| 34.6 KB STP Download_STEP_963010042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	3.2	6
963150042	SPEC	3 files CAD files ZIP 3D 3D_963150042 (rev1).pdf \| 20.5 KB IGS Download_IGS_963150042 (rev1).igs \| 34.3 KB STP Download_STEP_963150042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	3.2	6
963200042	SPEC	3 files CAD files ZIP 3D 3D_963200042 (rev1).pdf \| 19.8 KB IGS Download_IGS_963200042 (rev1).igs \| 34.3 KB STP Download_STEP_963200042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	3.2	6
963020174	SPEC	3 files CAD files ZIP 3D 3D_963020174 (rev1).pdf \| 24.9 KB IGS Download_IGS_963020174 (rev1).igs \| 34.6 KB STP Download_STEP_963020174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	4.3	8
963030174	SPEC	3 files CAD files ZIP 3D 3D_963030174 (rev1).pdf \| 24.9 KB IGS Download_IGS_963030174 (rev1).igs \| 34.7 KB STP Download_STEP_963030174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	4.3	8
963040174	SPEC	3 files CAD files ZIP 3D 3D_963040174 (rev1).pdf \| 24.9 KB IGS Download_IGS_963040174 (rev1).igs \| 34.6 KB STP Download_STEP_963040174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	4.3	8
963050174	SPEC	3 files CAD files ZIP 3D 3D_963050174 (rev1).pdf \| 24.5 KB IGS Download_IGS_963050174 (rev1).igs \| 34.6 KB STP Download_STEP_963050174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	4.3	8
963080174	SPEC	3 files CAD files ZIP 3D 3D_963080174 (rev1).pdf \| 23.7 KB IGS Download_IGS_963080174 (rev1).igs \| 34.6 KB STP Download_STEP_963080174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	4.3	8
963100174	SPEC	3 files CAD files ZIP 3D 3D_963100174 (rev1).pdf \| 23.3 KB IGS Download_IGS_963100174 (rev1).igs \| 34.2 KB STP Download_STEP_963100174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	4.3	8
963150174	SPEC	3 files CAD files ZIP 3D 3D_963150174 (rev1).pdf \| 22.1 KB IGS Download_IGS_963150174 (rev1).igs \| 34.4 KB STP Download_STEP_963150174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	4.3	8
963200174	SPEC	3 files CAD files ZIP 3D 3D_963200174 (rev1).pdf \| 20.5 KB IGS Download_IGS_963200174 (rev1).igs \| 34.4 KB STP Download_STEP_963200174 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	4.3	8
963020042	SPEC	3 files CAD files ZIP 3D 3D_963020042 (rev1).pdf \| 24.9 KB IGS Download_IGS_963020042 (rev1).igs \| 34.5 KB STP Download_STEP_963020042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3.2	6
963030042	SPEC	3 files CAD files ZIP 3D 3D_963030042 (rev1).pdf \| 24.5 KB IGS Download_IGS_963030042 (rev1).igs \| 34.6 KB STP Download_STEP_963030042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	3.2	6
963040042	SPEC	3 files CAD files ZIP 3D 3D_963040042 (rev1).pdf \| 24.5 KB IGS Download_IGS_963040042 (rev1).igs \| 34.5 KB STP Download_STEP_963040042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	3.2	6
963050042	SPEC	3 files CAD files ZIP 3D 3D_963050042 (rev1).pdf \| 24.1 KB IGS Download_IGS_963050042 (rev1).igs \| 34.6 KB STP Download_STEP_963050042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	3.2	6
963060042	SPEC	3 files CAD files ZIP 3D 3D_963060042 (rev1).pdf \| 23.7 KB IGS Download_IGS_963060042 (rev1).igs \| 34.5 KB STP Download_STEP_963060042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	3.2	6
963070042	SPEC	3 files CAD files ZIP 3D 3D_963070042 (rev1).pdf \| 23.3 KB IGS Download_IGS_963070042 (rev1).igs \| 34.6 KB STP Download_STEP_963070042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	3.2	6
963080042	SPEC	3 files CAD files ZIP 3D 3D_963080042 (rev1).pdf \| 23.3 KB IGS Download_IGS_963080042 (rev1).igs \| 34.5 KB STP Download_STEP_963080042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	3.2	6
963090042	SPEC	3 files CAD files ZIP 3D 3D_963090042 (rev1).pdf \| 22.5 KB IGS Download_IGS_963090042 (rev1).igs \| 34.6 KB STP Download_STEP_963090042 (rev1).stp \| 8.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	3.2	6
963100042	SPEC	2 files CAD files ZIP 3D 3D_963100042 (rev1).pdf \| 22.1 KB STP Download_STEP_963100042 (rev1).stp \| 8.8 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	3.2	6

	Order Code	Datasheet
	963010042	SPEC
	963150042	SPEC
	963200042	SPEC
	963020174	SPEC
	963030174	SPEC
	963040174	SPEC
	963050174	SPEC
	963080174	SPEC
	963100174	SPEC
	963150174	SPEC
	963200174	SPEC
	963020042	SPEC
	963030042	SPEC
	963040042	SPEC
	963050042	SPEC
	963060042	SPEC
	963070042	SPEC
	963080042	SPEC
	963090042	SPEC
	963100042	SPEC
