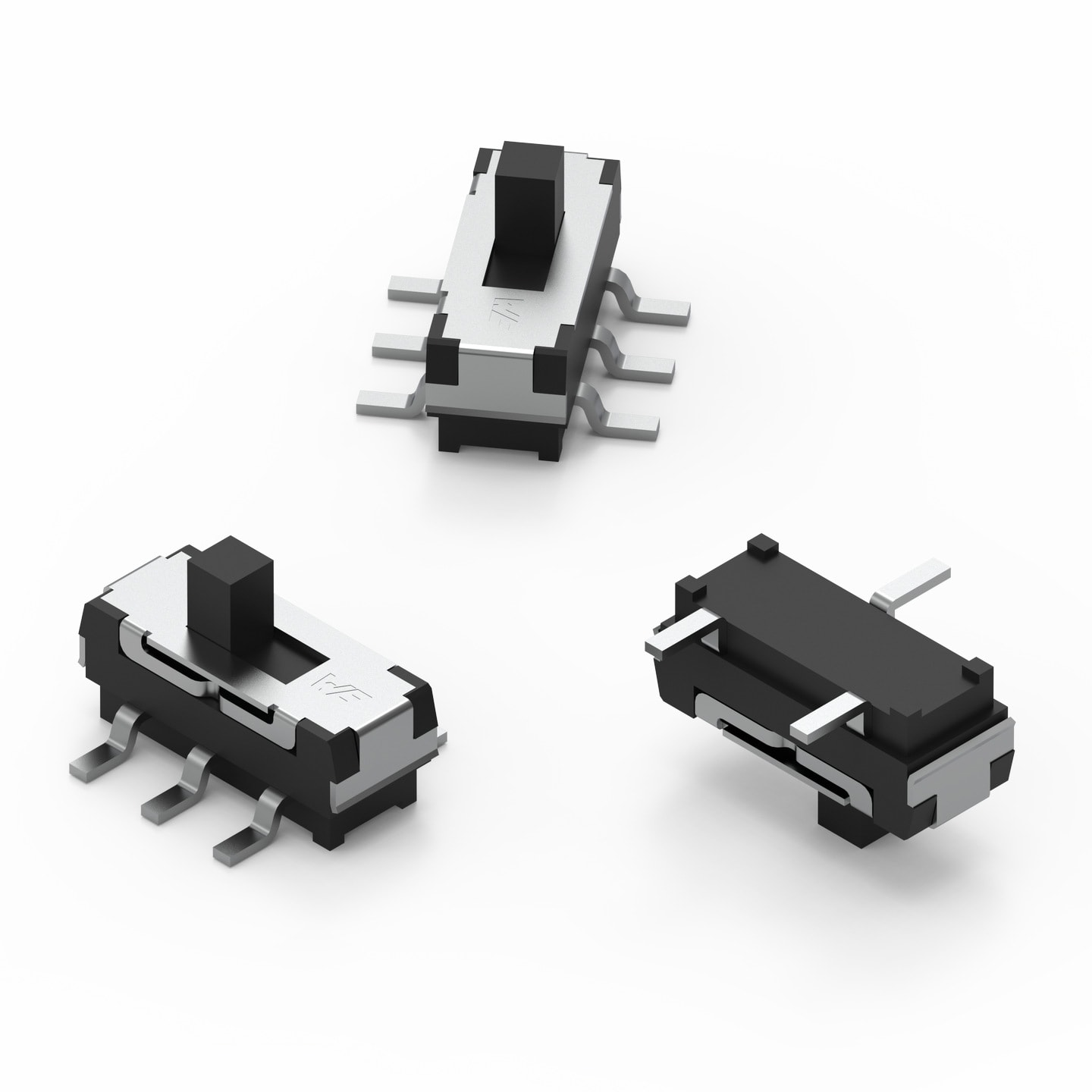

WS-SLSV SMT Mini Slide Switch Same Side Connection, 9.0 x 3.5 mm | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupSwitches Product familySlide Switches Product sub-familyWS-SLSV SMT Mini Slide Switch Same Side Connection, 9.0 x 3.5 mm

WS-SLSV SMT Mini Slide Switch Same Side Connection, 9.0 x 3.5 mm. Electrical Life 20000 steps. Withstanding Voltage 250 V (AC).

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Frame Color	Black
Actuator Material	PA46; PA9T
Actuator Flammability Rating	UL94 HB
Actuator Color	Black
Contact Material	Copper Alloy
Contact Plating	Silver
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	300 mA
V_R	6 V (DC)
Contact Resistance Initial	70 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	20000 Steps
Connection Type	Same Side Connection

Products

Order Code	Datasheet	Downloads	Status	Operation Force (Value) (g)	Schematic	Samples
450406020024	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-SLSV (rev24b).IntLib \| 199.5 KB CDS Cadence_WS-SLSV (rev24b).zip \| 1010.3 KB EAG Eagle_WS-SLSV (rev24b).lbr \| 27.4 KB CAD files ZIP 3D 3D_WS-SLSV_450406020024 (rev1).pdf \| 83.5 KB IGS IGS_WS-SLSV_450406020024 (rev1).igs \| 1.3 MB STP STP__WS-SLSV_450406020024 (rev1).stp \| 320.7 KB Download all 6 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	350	SPDT
452406020024	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-SLSV (rev24b).IntLib \| 199.5 KB CDS Cadence_WS-SLSV (rev24b).zip \| 1010.3 KB EAG Eagle_WS-SLSV (rev24b).lbr \| 27.4 KB CAD files ZIP 3D 3D_WS-SLSV_452406020024 (rev1).pdf \| 99.1 KB IGS IGS_WS-SLSV_452406020024 (rev1).igs \| 1.5 MB STP STP_WS-SLSV_452406020024 (rev1).stp \| 396.2 KB Download all 6 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	450	DPDT

Order Code	Datasheet
450406020024	SPEC
452406020024	SPEC
