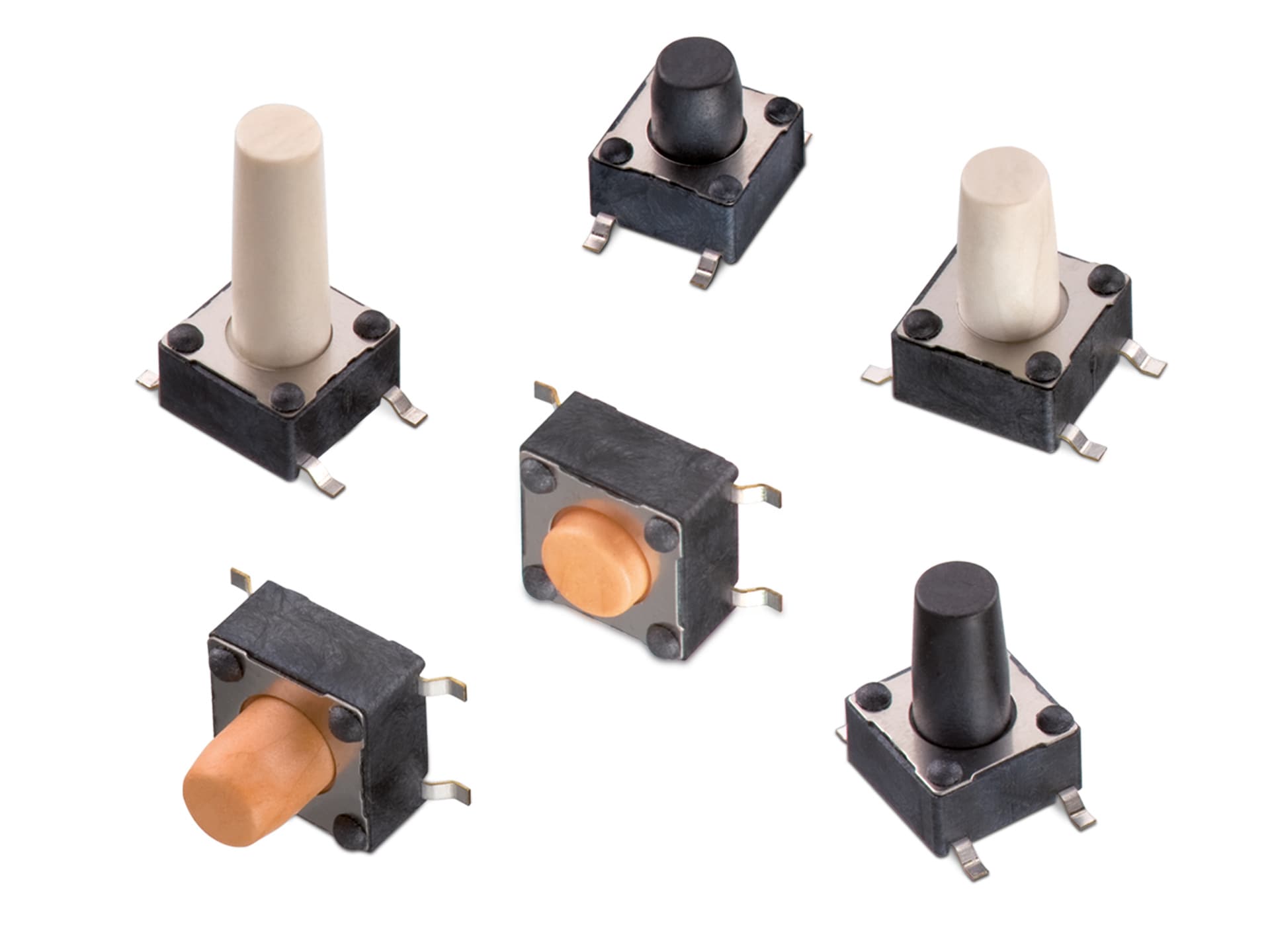

WS-TASV SMT Tact Switch 6x6 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force (Value)	160 g; 260 g; 360 g
Electrical Life	200000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

	Order Code	Datasheet	Downloads	Status	H (mm)	Operation Force (Value) (g)	Electrical Life (Cycles)	Actuator Color	Vaporphase process	Design Kit	Samples
	430152043826	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152043826 (rev1).igs \| 929.3 KB STP 430152043826 (rev1).stp \| 331 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.3	260	200000	White	not specified	499001
	430152043836	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152043836 (rev1).igs \| 929.3 KB STP 430152043836 (rev1).stp \| 331 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.3	360	200000	Salmon	not specified	499001
	430152050826	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152050826 (rev1).igs \| 955.6 KB STP 430152050826 (rev1).stp \| 335.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	260	200000	White	not specified	499001
	430152050836	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152050836 (rev1).igs \| 955.6 KB STP 430152050836 (rev1).stp \| 335.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	360	200000	Salmon	not specified	499001
	430152070826	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152070826 (rev1).igs \| 997.1 KB STP 430152070826 (rev1).stp \| 454.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	260	200000	White	not specified	499001
	430152070836	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152070836 (rev1).igs \| 997.1 KB STP 430152070836 (rev1).stp \| 454.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	360	200000	Salmon	not specified	499001
	430152080826	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152080826 (rev1).igs \| 998.5 KB STP 430152080826 (rev1).stp \| 454.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	260	200000	White	not specified	499001
	430152080836	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152080836 (rev1).igs \| 998.5 KB STP 430152080836 (rev1).stp \| 454.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	360	200000	Salmon	not specified	499001
	430152095826	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152095826 (rev1).igs \| 998.7 KB STP 430152095826 (rev1).stp \| 454.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	260	200000	White	not specified	–
	430152095836	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430152095836 (rev1).igs \| 998.7 KB STP 430152095836 (rev1).stp \| 454.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	360	200000	Salmon	not specified	–
	430152130826	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS IGS_4301x21308x6 (rev1).igs \| 998.9 KB STP STP_4301x21308x6 (rev1).stp \| 453.7 KB Download all 5 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	13	260	200000	White	not specified	–
	430152130836	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS IGS_4301x21308x6 (rev1).igs \| 998.9 KB STP STP_4301x21308x6 (rev1).stp \| 453.7 KB Download all 5 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	13	360	200000	Salmon	not specified	–
	430182043816	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430182043816 (rev1).igs \| 929.3 KB STP 430182043816 (rev1).stp \| 331 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.3	160	1000000	Black	not specified	499001
	430182050816	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430182050816 (rev1).igs \| 955.6 KB STP 430182050816 (rev1).stp \| 335.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	160	1000000	Black	not specified	499001
	430182070816	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430182070816 (rev1).igs \| 997.1 KB STP 430182070816 (rev1).stp \| 454.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	160	1000000	Black	not specified	499001
	430182080816	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430182080816 (rev1).igs \| 998.5 KB STP 430182080816 (rev1).stp \| 454.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	160	1000000	Black	not specified	499001
	430182095816	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS 430182095816 (rev1).igs \| 998.7 KB STP 430182095816 (rev1).stp \| 454.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.5	160	1000000	Black	not specified	–
	430182130816	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP IGS IGS_4301x21308x6 (rev1).igs \| 998.9 KB STP STP_4301x21308x6 (rev1).stp \| 453.7 KB Download all 5 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	13	160	1000000	Black	not specified	–

	Order Code	Datasheet
	430152043826	SPEC
	430152043836	SPEC
	430152050826	SPEC
	430152050836	SPEC
	430152070826	SPEC
	430152070836	SPEC
	430152080826	SPEC
	430152080836	SPEC
	430152095826	SPEC
	430152095836	SPEC
	430152130826	SPEC
	430152130836	SPEC
	430182043816	SPEC
	430182050816	SPEC
	430182070816	SPEC
	430182080816	SPEC
	430182095816	SPEC
	430182130816	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	H (mm)	Operation Force (Value) (g)	Electrical Life (Cycles)	Actuator Color	Vaporphase process	Design Kit	Samples

Tact Switches

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test.
