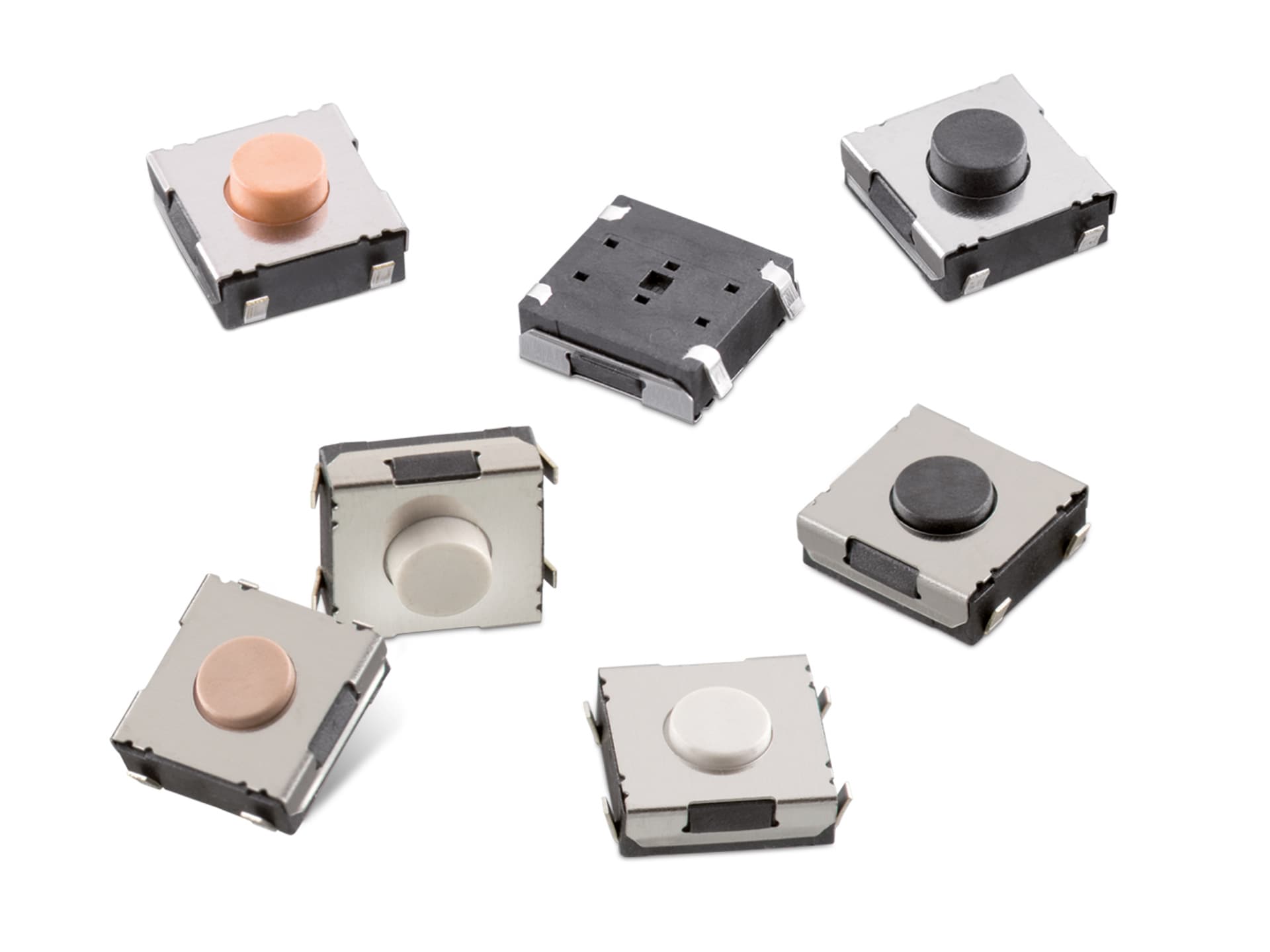

WS-TASV J-Bend SMT Washable Tact Switch 6x6 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force (Value)	160 g; 260 g; 360 g
Electrical Life	200000 Cycles; 500000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Order Code	Datasheet	Downloads	Status	H (mm)	Operation Force (Value) (g)	Electrical Life (Cycles)	Actuator Color	Vaporphase process
430483025816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430483025816 (rev1).pdf \| 102.3 KB IGS IGS_ 430483025816 (rev1).igs \| 1 MB STP stp_ 430483025816 (rev1).stp \| 255.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	160	1000000	Black	not specified
430473025826	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430473025826 (rev1).pdf \| 102.3 KB IGS IGS_430473025826 (rev1).igs \| 1 MB STP STP_430473025826 (rev1).stp \| 255.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	260	500000	White	not specified
430453025836	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430453025836 (rev1).pdf \| 102.3 KB IGS IGS_430453025836 (rev1).igs \| 1 MB STP STP_430453025836 (rev1).stp \| 255.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	360	200000	Salmon	not specified
430483031816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430483031816 (rev1).pdf \| 99 KB IGS IGS_430483031816 (rev1).igs \| 1 MB STP STP_430483031816 (rev1).stp \| 255.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.1	160	1000000	Black	not specified
430473031826	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430473031826 (rev1).pdf \| 99 KB IGS IGS_430473031826 (rev1).igs \| 1 MB STP STP_430473031826 (rev1).stp \| 255.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.1	260	500000	White	not specified
430453031836	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430453031836 (rev1).pdf \| 99 KB IGS IGS_430453031836 (rev1).igs \| 1 MB STP STP_430453031836 (rev1).stp \| 255.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.1	360	200000	Salmon	not specified
430483035816	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430483035816 (rev1).pdf \| 102.3 KB IGS IGS_430483035816 (rev1).igs \| 1 MB STP stp_430483035816 (rev1).stp \| 255.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.5	160	1000000	Black	not specified
430473035826	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430473035826 (rev1).pdf \| 102.2 KB IGS IGS_430473035826 (rev1).igs \| 1 MB STP STP_430473035826 (rev1).stp \| 255.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.5	260	500000	White	not specified
430453035836	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-TASV (rev24d).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev24c).zip \| 13.6 MB EAG Eagle_WS-TASV (rev24c).lbr \| 433.7 KB CAD files ZIP 3D 3D_430453035836 (rev1).pdf \| 102.3 KB IGS IGS_430453035836 (rev1).igs \| 1 MB STP STP_430453035836 (rev1).stp \| 255.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.5	360	200000	Salmon	not specified

	Order Code	Datasheet
	430483025816	SPEC
	430473025826	SPEC
	430453025836	SPEC
	430483031816	SPEC
	430473031826	SPEC
	430453031836	SPEC
	430483035816	SPEC
	430473035826	SPEC
	430453035836	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	H (mm)	Operation Force (Value) (g)	Electrical Life (Cycles)	Actuator Color	Vaporphase process	Samples

Tact Switches from Würth Elektronik eiSos

#TimetoSwitch

Tact Switches

The Tact Switches from Würth Elektronik are characterized by performance stability and long lifetime. All metal elements are corrosion resistant proven by a 48 hours salt spray test. Polyimide tape or silicone rubber protect the switch even in tough environments. The switch range includes various high quality solutions like dip, rotary, detector, micro, slide, rocker switches and encoder. Available from stock. Samples free of charge.

Product Benefits:

IP67
Long lifetime
High durability
Corrosion resistant metal elements
Full load life cycle test
Tight tolerance due to automated production

Characteristics

The corrosion resistance of all metallic components was tested by a 48-hour salt-spray test.

The snap dome is made of stainless steel to ensure high reliability and reduced friction. The indicated switching cycles have been tested under full load.

Polyimide film provides protection against environmental influences and silicone inserts are used for harsh industrial environments.

The plastic material withstands five times reflow and has been tested for flammability according to UL.

Automated production reduces mechanical deviations and ensures high consistency of mechanical parameters.
