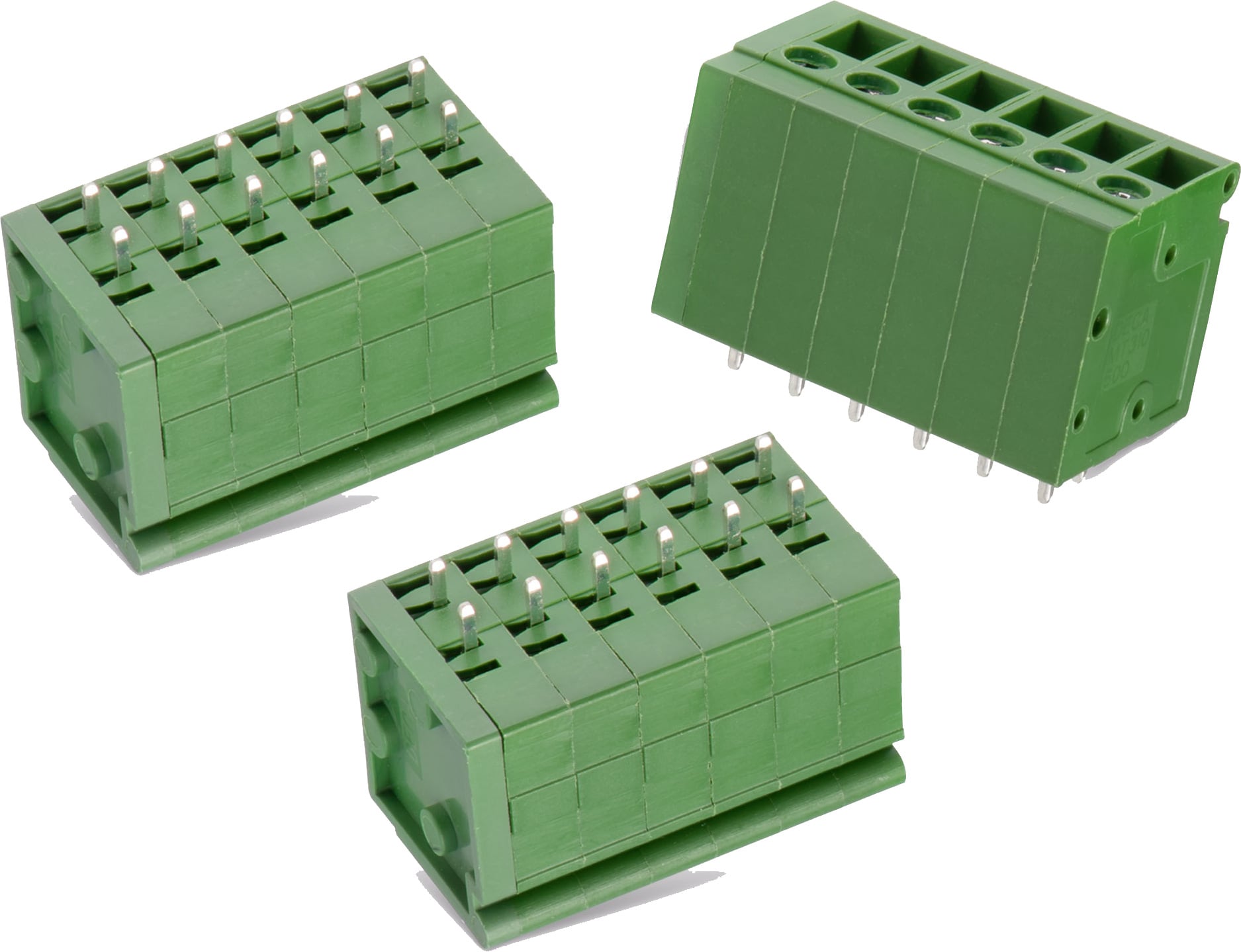

WR-TBL Series 127B - Excenter Clamp 5.00mm pitch - Vertical cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Steel
Contact Plating	Zinc
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Steel

Electrical Properties
I_R	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage	2000 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	9 (mm)
Screw	M2

Certification
cULus Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691127700002B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700002B (rev1).pdf \| 267.2 KB IGS 691127700002B (rev1).igs \| 2.4 MB STP 691127700002B (rev1).stp \| 905.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	691001
691127700003B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700003B (rev1).pdf \| 268.4 KB IGS 691127700003B (rev1).igs \| 2.4 MB STP 691127700003B (rev1).stp \| 906.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	612690
691127700004B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700004B (rev1).pdf \| 269.6 KB IGS 691127700004B (rev1).igs \| 2.4 MB STP 691127700004B (rev1).stp \| 907.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691127700005B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700005B (rev1).pdf \| 270.8 KB IGS 691127700005B (rev1).igs \| 2.4 MB STP 691127700005B (rev1).stp \| 908.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691127700006B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700006B (rev1).pdf \| 271.9 KB IGS 691127700006B (rev1).igs \| 2.4 MB STP 691127700006B (rev1).stp \| 908.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691127700008B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700008B (rev1).pdf \| 274.3 KB IGS 691127700008B (rev1).igs \| 2.4 MB STP 691127700008B (rev1).stp \| 910.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–

Order Code	Datasheet
691127700002B	SPEC
691127700003B	SPEC
691127700004B	SPEC
691127700005B	SPEC
691127700006B	SPEC
691127700008B	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
