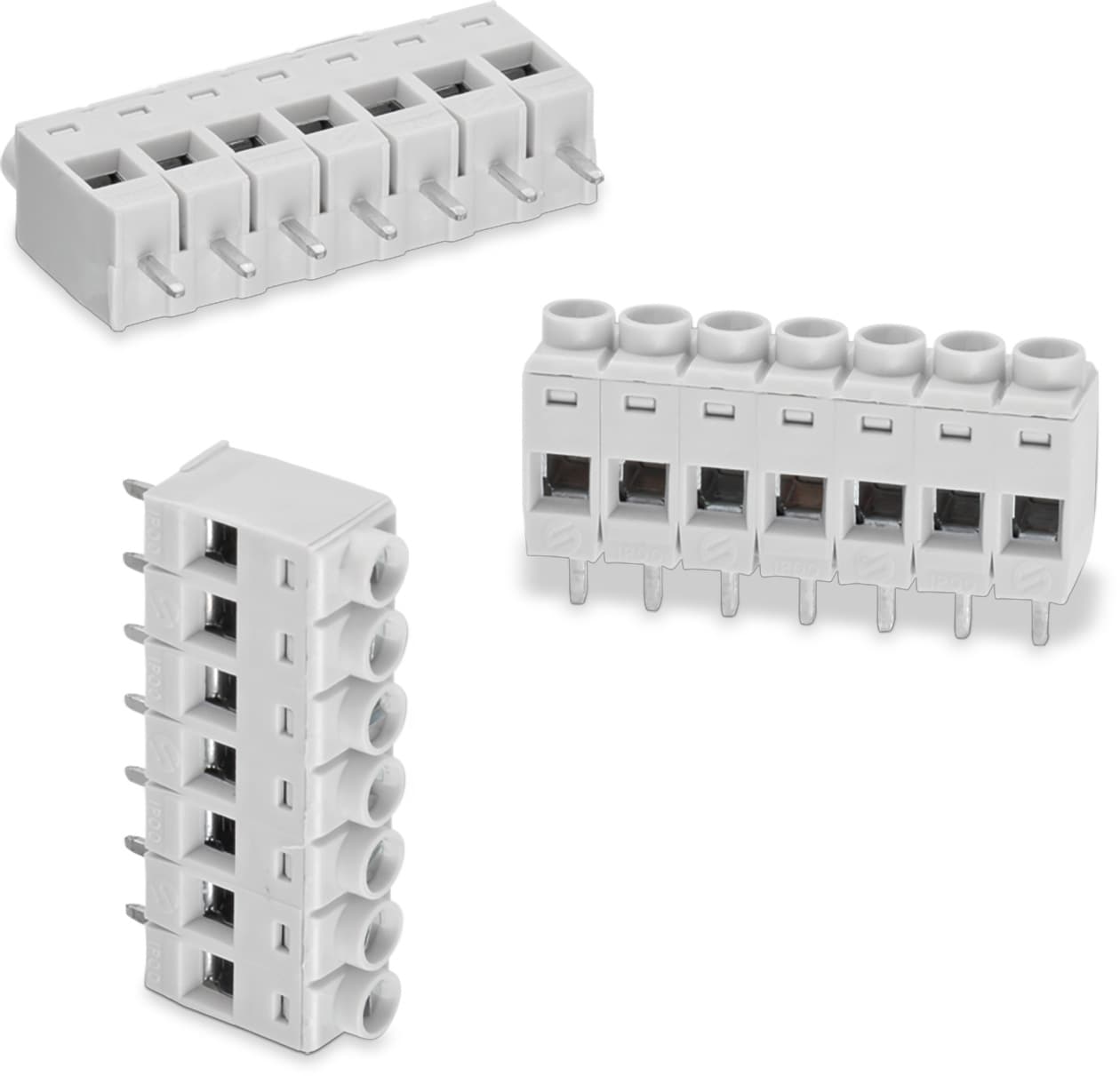

WR-TBL Series 1317 - Rising Cage Clamp 5.00mm pitch - Horizontal cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PC
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Steel
Contact Plating	Zinc
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R	16 A
I_R	22 A
Working Voltage	300 V (AC); 450 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	450 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC); 2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M2.5

Certification
cULus Approval	E150931
VDE Approval	40021359
VDE Approval	40021359 TYPE: CUU

Packaging Properties
Packaging	Box

Application Notes

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691131710002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131710002 (rev1).pdf \| 98.2 KB IGS Download_IGES_691131710002 (rev1).iges \| 610.9 KB STP 691131710002 (rev1).stp \| 197.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pressure Clamp Divisible	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	691001
691131710003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131710003 (rev1).pdf \| 135.8 KB IGS Download_IGES_691131710003 (rev1).iges \| 893.8 KB STP 691131710003 (rev1).stp \| 283.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pressure Clamp Divisible	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	612690
691131710004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131710004 (rev1).pdf \| 178.6 KB IGS Download_IGES_691131710004 (rev1).iges \| 1.1 MB STP 691131710004 (rev1).stp \| 370 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pressure Clamp Divisible	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	–
691131710005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131710005 (rev1).pdf \| 215.6 KB IGS Download_IGES_691131710005 (rev1).iges \| 1.4 MB STP 691131710005 (rev1).stp \| 456.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pressure Clamp Divisible	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	–
691131710006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131710006 (rev1).pdf \| 256.4 KB IGS Download_IGES_691131710006 (rev1).iges \| 1.7 MB STP 691131710006 (rev1).stp \| 542.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pressure Clamp Divisible	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	–
691131710008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691131710008 (rev1).pdf \| 324.4 KB IGS Download_IGES_691131710008 (rev1).iges \| 2.3 MB STP 691131710008 (rev1).stp \| 720.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pressure Clamp Divisible	PCB	No	Horizontal	30 to 12 (AWG) 0.05 to 3.31 (mm²)	–

Order Code	Datasheet
691131710002	SPEC
691131710003	SPEC
691131710004	SPEC
691131710005	SPEC
691131710006	SPEC
691131710008	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
