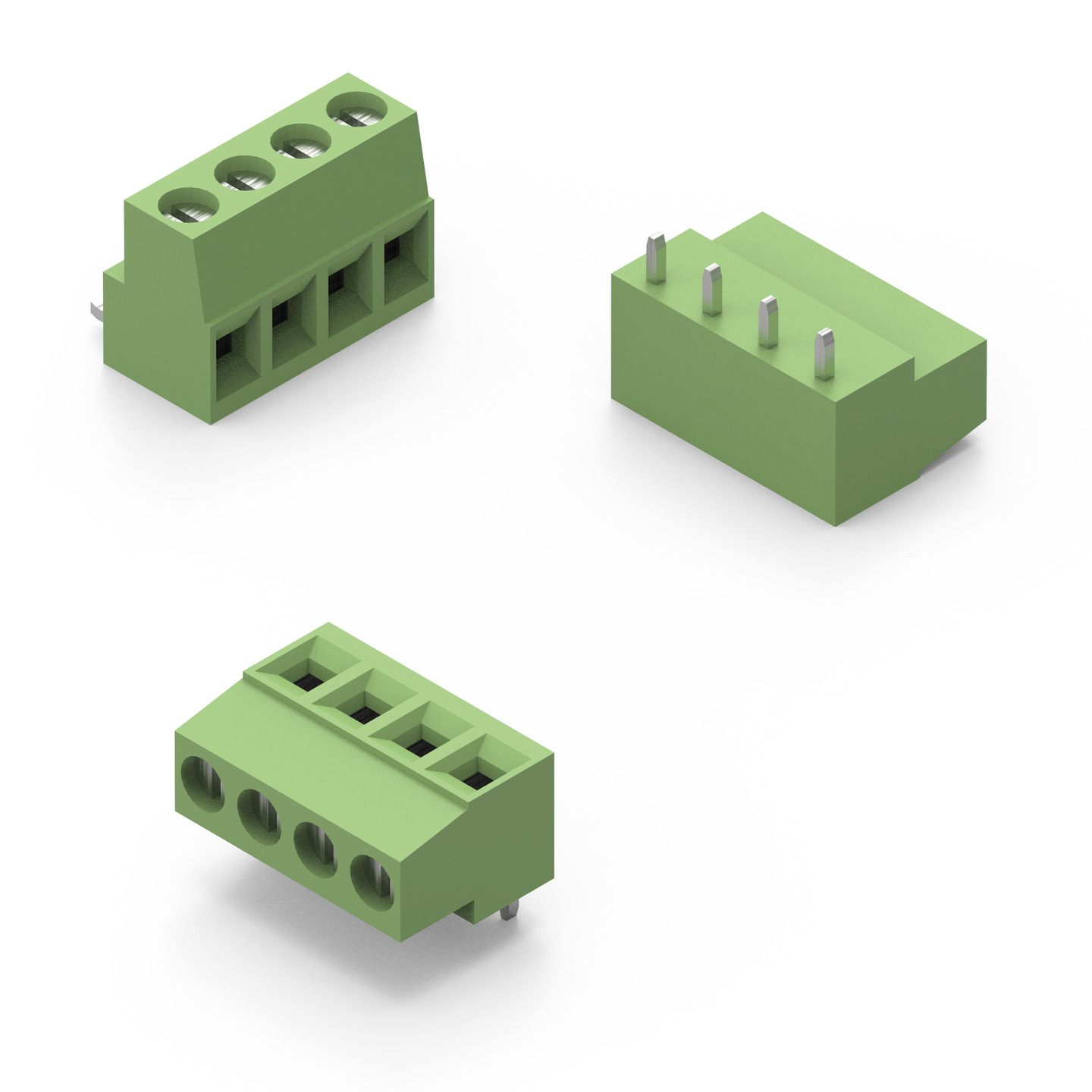

WR-TBL Series 2427 - 5.00 mm Vertical Entry w. Rising Cage Clamp | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	Lead free / RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA6/66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Nickel over Tin
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

Electrical Properties
I_R[cULus]	14 A
I_R[VDE]	24 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M3

Certification
cULus Approval	E150931
VDE Approval	40021356
VDE Approval	40021365 TYPE: CLA

Packaging Properties
Packaging	Box

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691242700004	4, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691242700004 (rev1).pdf \| 72.2 KB IGS 691242700004 (rev1).iges \| 1.1 MB STP 691242700004 (rev1).stp \| 426.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit 691001
691242700005	5, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691242700005 (rev1).pdf \| 82.6 KB IGS 691242700005 (rev1).iges \| 1.2 MB STP 691242700005 (rev1).stp \| 491.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –
691242700006	6, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691242700006 (rev1).pdf \| 91.7 KB IGS 691242700006 (rev1).iges \| 1.4 MB STP 691242700006 (rev1).stp \| 557.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –
691242700007	7, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691242700007 (rev1).pdf \| 103 KB IGS 691242700007 (rev1).iges \| 1.6 MB STP 691242700007 (rev1).stp \| 624.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –
691242700008	8, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691242700008 (rev1).pdf \| 116.6 KB IGS 691242700008 (rev1).iges \| 1.8 MB STP 691242700008 (rev1).stp \| 692 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –
691242700009	9, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691242700009 (rev1).pdf \| 128 KB IGS 691242700009 (rev1).iges \| 1.9 MB STP 691242700009 (rev1).stp \| 759.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –
691242700010	10, Rising Cage Clamp, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Rising-Cage-Clamp (rev23a).lbr CAD files ZIP 3D 691242700010 (rev1).pdf \| 137.7 KB IGS 691242700010 (rev1).iges \| 2.1 MB STP 691242700010 (rev1).stp \| 827.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Wire Section 30 to 12 (AWG) 0.0509 to 3.31 (mm²)	Design Kit –
