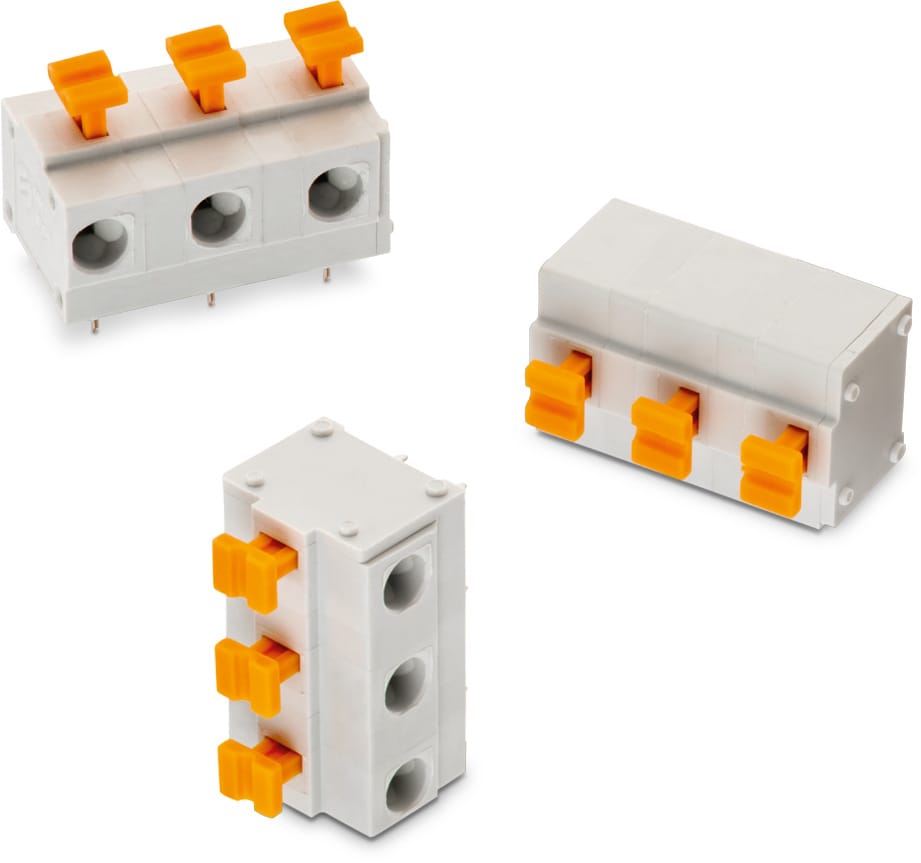

General Information | |
---|---|
Operating Temperature | -30 °C up to +120 °C |
Compliance | ROHS & Reach |
Pitch | 7.5 mm |
Material Properties | |
---|---|
Insulator Material | PA66 |
Insulator Flammability Rating | UL94 V-0 |
Contact Material | INOX Steel |
Contact Type | Stamped |
Wire Guard Material | Copper Alloy |
Electrical Properties | |
---|---|
IR | 10 A |
IR | 10 A |
Working Voltage [cULus] | 300 V (AC) |
Working Voltage [VDE] | 750 V (AC) |
Withstanding Voltage [cULus] | 1600 V (AC) |
Withstanding Voltage [VDE] | 3000 V (AC) |
Contact Resistance | 20 mΩ |
Mechanical Properties | |
---|---|
Wire Strip Length | 10 |
Wire Properties | |
---|---|
Solid Wire Section (AWG) | 16 to 30 (AWG) |
Solid Wire Section (Metric) | 1.31 to 0.0509 (mm²) |
Stranded Wire Section (AWG) | 16 to 30 (AWG) |
Stranded Wire Section (Metric) | 1.31 to 0.0509 (mm²) |
Certification | |
---|---|
cULus Approval | E150931 |
VDE Approval | 40021396 |
Packaging Properties | |
---|---|
Packaging | Box |
Application Notes
Products
Order Code | Datasheet | Downloads | Pins (Value) (pcs) | Application | PCB/Cable/Panel | Modularity | Type | Wire Section | Design Kit | Samples |
---|---|---|---|---|---|---|---|---|---|---|
691411910002 | SPEC | 6 files | 2 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | 691001 | |
691411910003 | SPEC | 6 files | 3 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910004 | SPEC | 6 files | 4 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910005 | SPEC | 6 files | 5 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910006 | SPEC | 6 files | 6 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910007 | SPEC | 6 files | 7 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910008 | SPEC | 6 files | 8 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910009 | SPEC | 6 files | 9 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910010 | SPEC | 6 files | 10 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910011 | SPEC | 6 files | 11 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – | |
691411910012 | SPEC | 6 files | 12 | Screwless | PCB | No | Horizontal | 16 to 30 (AWG) 1.31 to 0.0509 (mm²) | – |
Order Code | Datasheet |
---|---|
691411910002 | SPEC |
691411910003 | SPEC |
691411910004 | SPEC |
691411910005 | SPEC |
691411910006 | SPEC |
691411910007 | SPEC |
691411910008 | SPEC |
691411910009 | SPEC |
691411910010 | SPEC |
691411910011 | SPEC |
691411910012 | SPEC |
Samples |
---|
Order Code | Datasheet | Downloads | Pins (Value) (pcs) | Application | PCB/Cable/Panel | Modularity | Type | Wire Section | Design Kit | Samples |
---|
