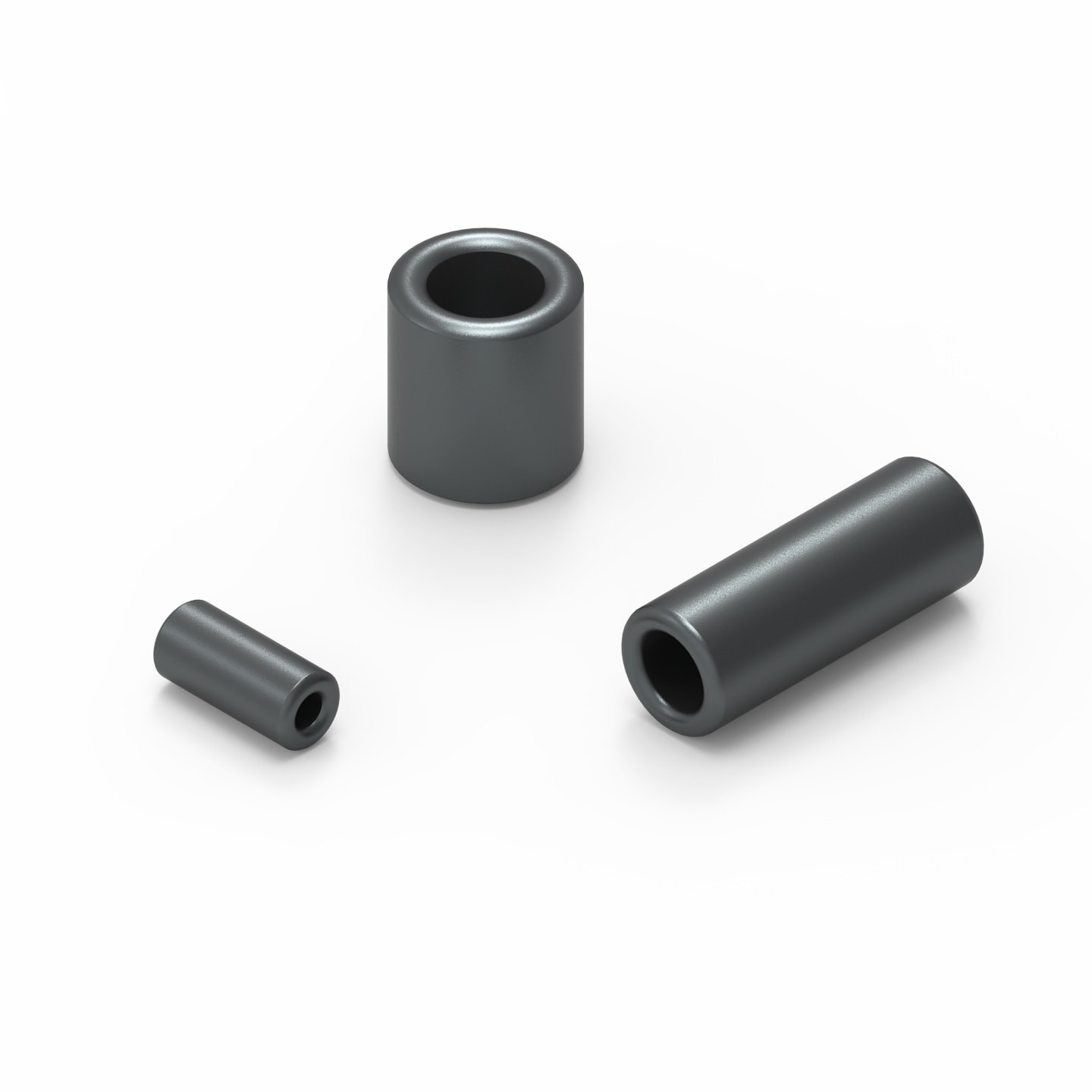

WE-AEFA Axial EMI NiZn Suppression Ferrite

Datasheet

SPEC
Seriesdatasheet_WE-AEFA_V1 (rev1).pdf
|
3.1 MB

Characteristics

Ferrite core made of NiZn, a material which works in a wide frequency range
Many different types for the best possible interference suppression
Operating temperature: -55°C up to +150°C
Automotive approved

Applications

In general for: wires, coaxial cables, wire-wrapping cables, multiconductor wires
Data and signal lines
On board power supply line
Multimedia cable interfaces
Various, other cable interfaces

Application Notes

ANP115 Cable Ferrites and Nanocrystalline Sleeves for Automotive Applications
PDF

Products

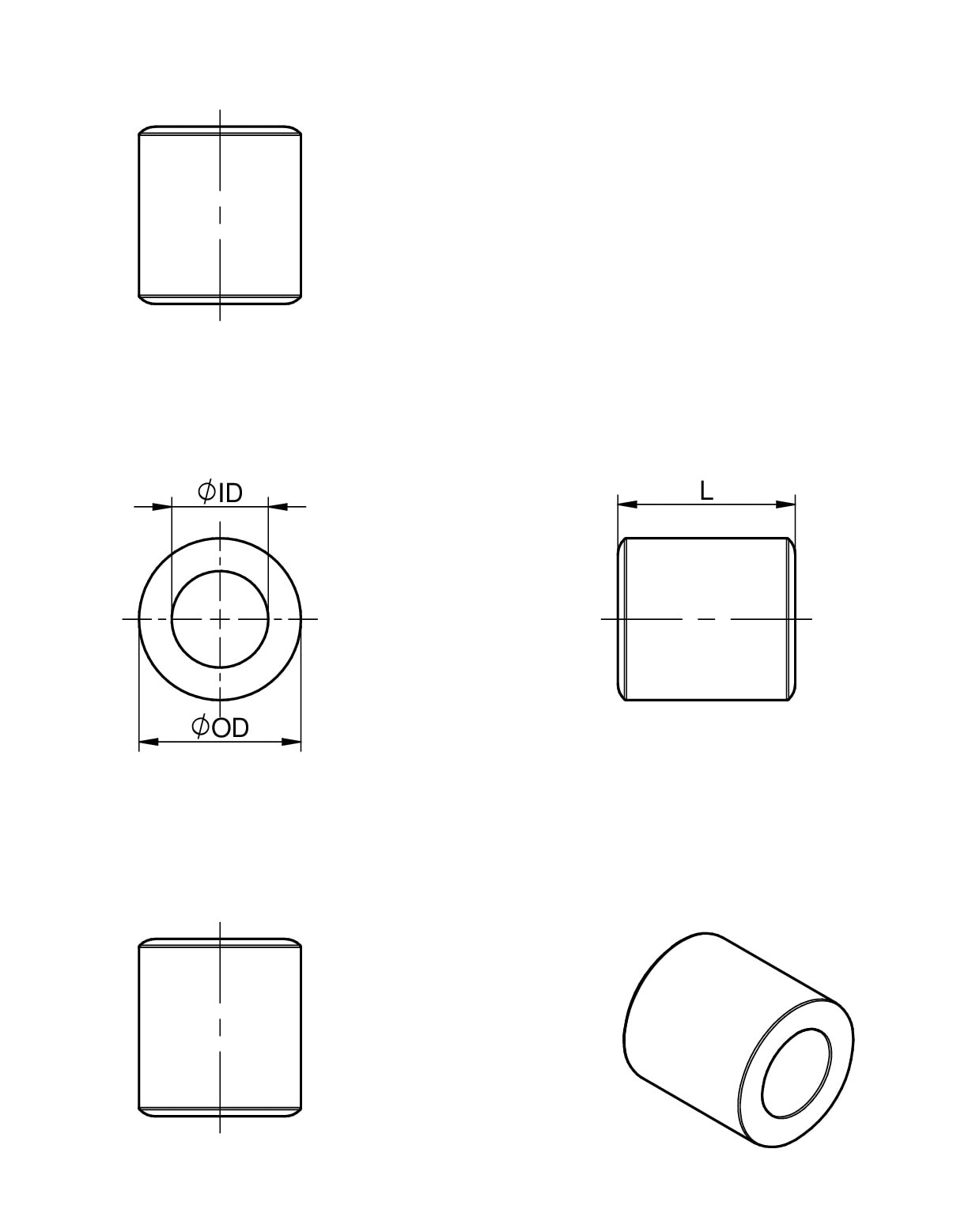

Order Code	Datasheet	Simulation	Downloads	Status	Ø Cable max. (mm)	Ø OD (mm)	Ø ID (mm)	H (mm)	Z @ 25 MHz 1 turn (Ω)	Z @ 100 MHz 1 turn (Ω)	Material	Design Kit	Alpha-Rack
782013033150	SPEC		2 files CAD files ZIP IGS 782013033150 (rev1).igs \| 112.2 KB STP 782013033150 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	12	3.55	15	150	205	1E04_620	782013	–
782013044095	SPEC		2 files CAD files ZIP IGS 782013044095 (rev1).igs \| 114.6 KB STP 782013044095 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.4	9.5	4.75	9.5	60	84	1E04_620	782013	–
782013046185	SPEC		2 files CAD files ZIP IGS 782013046185 (rev1).igs \| 112.2 KB STP 782013046185 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.6	11.5	5	18.5	135	186	1E04_620	782013	742707016
782013046250	SPEC		2 files CAD files ZIP IGS 782013046250 (rev1).igs \| 112.5 KB STP 782013046250 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.6	11.5	5	25	185	255	1E04_620	782013	742707016
782013057450	SPEC		2 files CAD files ZIP IGS 782013057450 (rev1).igs \| 175.5 KB STP 782013057450 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.7	12	6.1	45	255	370	1E04_620	782013	–
782013059285	SPEC		2 files CAD files ZIP IGS 782013059285 (rev1).igs \| 112 KB STP 782013059285 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.9	14	6.3	28.5	195	270	1E04_620	782013	742707016
782013068250	SPEC		2 files CAD files ZIP IGS 782013068250 (rev1).igs \| 112.2 KB STP 782013068250 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	14	7.2	25	150	210	1E04_620	782013	742707016
782013069155	SPEC		2 files CAD files ZIP IGS 782013069155 (rev1).igs \| 111.9 KB STP 782013069155 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.9	12	7.3	15.5	70	100	1E04_620	782013	–
782013069285	SPEC		2 files CAD files ZIP IGS 782013069285 (rev1).igs \| 112.8 KB STP 782013069285 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.9	15.5	7.3	28.5	190	270	1E04_620	782013	742707016
782013076285	SPEC		2 files CAD files ZIP IGS 782013076285 (rev1).igs \| 111.8 KB STP 782013076285 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.6	16	8	28.5	170	240	1E04_620	782013	742707016
782013076508	SPEC		2 files CAD files ZIP IGS 782013076508 (rev1).igs \| 111.8 KB STP 782013076508 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.6	16	8	50.8	325	460	1E04_620	782013	742707016
782013079285	SPEC		2 files CAD files ZIP IGS 782013079285 (rev1).igs \| 112 KB STP 782013079285 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.9	14	8.2	28.5	140	200	1E04_620	782013	–
782013086280	SPEC		2 files CAD files ZIP IGS 782013086280 (rev1).igs \| 111.8 KB STP 782013086280 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.6	16	9	28	140	205	1E04_620	782013	742707016
782013091285	SPEC		2 files CAD files ZIP IGS 782013091285 (rev1).igs \| 112.4 KB STP 782013091285 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9.7	17.5	9.5	28.5	150	220	1E04_620	782013	742707016
782013100280	SPEC		2 files CAD files ZIP IGS 782013100280 (rev1).igs \| 115.8 KB STP 782013100280 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	15.5	10.5	28	100	150	1E04_620	782013	742707016
782013110508	SPEC		2 files CAD files ZIP IGS 782013110508 (rev1).igs \| 112.2 KB STP 782013110508 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	11	19	11.5	50.8	235	345	1E04_620	782013	742707016
782013125280	SPEC		2 files CAD files ZIP IGS 782013125280 (rev1).igs \| 112.2 KB STP 782013125280 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12.5	19	13	28	95	150	1E04_620	782013	–
782013125285	SPEC		2 files CAD files ZIP IGS 782013125285 (rev1).igs \| 112.4 KB STP 782013125285 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12.5	26	13	28.5	170	240	1E04_620	782013	742707016
782013150285	SPEC		2 files CAD files ZIP IGS 782013150285 (rev1).igs \| 112.6 KB STP 782013150285 (rev1).stp \| 15.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15	26	15.5	28.5	130	190	1E04_620	782013	–
782013410400	SPEC	–	3 files CAD files ZIP 3D 3D_WE-AEFA_782013410400 (rev1).pdf \| 112.4 KB IGS IGS_WE-AEFA_782013410400 (rev1).igs \| 86.5 KB STP STP_WE-AEFA_782013410400 (rev1).stp \| 8.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	65	41.5	40	152	235	1E04_620	–	–

Order Code	Datasheet	Simulation
782013033150	SPEC
782013044095	SPEC
782013046185	SPEC
782013046250	SPEC
782013057450	SPEC
782013059285	SPEC
782013068250	SPEC
782013069155	SPEC
782013069285	SPEC
782013076285	SPEC
782013076508	SPEC
782013079285	SPEC
782013086280	SPEC
782013091285	SPEC
782013100280	SPEC
782013110508	SPEC
782013125280	SPEC
782013125285	SPEC
782013150285	SPEC
782013410400	SPEC	–

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Ø Cable max. (mm)	Ø OD (mm)	Ø ID (mm)	H (mm)	Z @ 25 MHz 1 turn (Ω)	Z @ 100 MHz 1 turn (Ω)	Material	Design Kit	Alpha-Rack	Samples

EV EMI suppression

EMC noise cancellation for new EV & HEV applications

The rising electrification of motor vehicles is inevitably accompanied by an increase in electromagnetic interference. The use of cable ferrites can significantly reduce these in electric and hybrid vehicles, whether interference signals on lines or electromagnetic field coupling effects. High-performance inductive materials in cable ferrites significantly improve EMC performance. Standard ferrite cable core suppression elements in axial as well in toroidal form are suitable for a wide range of applications with medium and high frequencies. For higher frequencies, these contain a magnesium component. A very wide frequency range is covered by cable ferrites with a new nanocrystalline material (NC).

Applications matrix

We offer the complete frequency range

Würth Elektronik cable ferrites are designed to work in all different frequency ranges with best attenuation.

It is essential for the following automotive applications:

In EMI suppression against Inverter spikes
Attenuate EMI noise induced by the rotor of the electric motor
Minimize NVH (Noise vibrations harshness) in the EMC spectrum at power train
Special EMI suppression for the junction box interconnections

Würth Elektronik offers four different series capable to meet all requirements for your application:

Cable ferrite for all different EMI suppression scenarios

EMI suppression for medium-high freq. range

WE-AEFA ring core is an EMC cable ferrite suppressor in an axial as well in toroidal form, special designed for many kinds of applications. The special spectrum suppression is for medium and high frequency noise. Also available in larger designs.

EMI suppression for higher freq. range

WE-TEFA ring core is an EMC cable ferrite suppressor with a component of Mg, the Impedance supports a higher frequency than a standard type.

EMI suppression for medium-low freq. range

WE-TEMA ring core is an EMC cable ferrite suppressor specially designed for the medium frequency range with very high suppression.

EMI suppression for a wide-band spectrum

WE-AENA cable ferrites with the latest NC core (nanocrystalline) material technology to provide noise suppression across a very wide frequency range. Available in many different standard sizes.

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-AEFA Axial EMI Suppression Ferrite

Alpha-Rack EMC: Automotive
