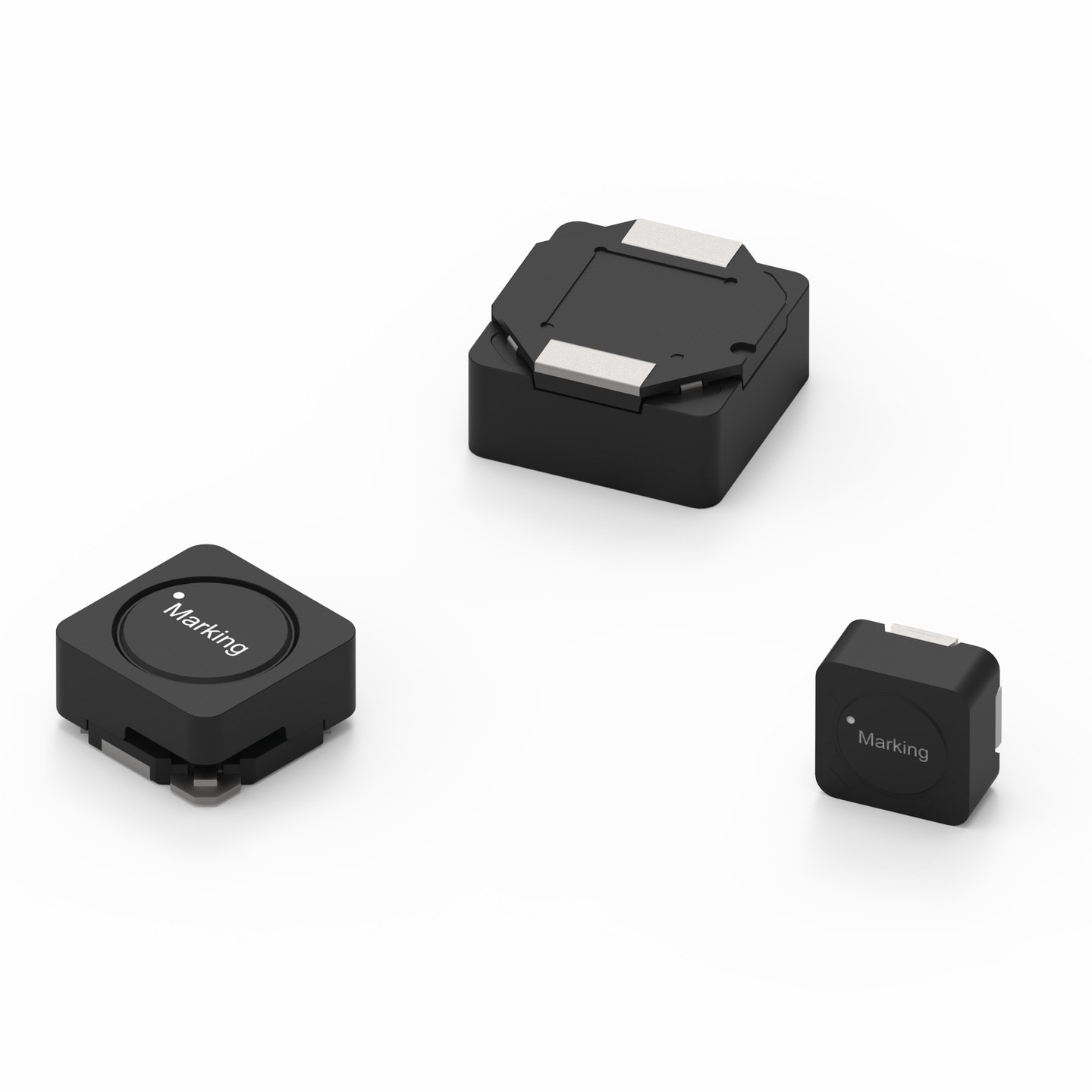

WE-PDA SMT Shielded Power Inductor

Size	Series Datasheet	L (mm)	W (mm)	H (mm)	Mount
7332	SPEC	7.3	7.3	3.2	SMT
7345	SPEC	7.3	7.3	4	SMT
1260	SPEC	12	12	6	SMT
1050	SPEC	10	10	5	SMT

LTSpice files

LT
LTSpice_WE-PDA (rev23a).zip
|
4.5 KB

Characteristics

Magnetically shielded version which results in a low leakage field High storage capacity
Very low self-losses at high switching frequency's
Wide inductance spectrum available at all sizes
Core Material: NiZn
Wire connection: welding technology
Automotive approved
Size 1050: Operating temperature -50°C up to +150°C
Size 7332, 7345, 1260: Operating temperature -40°C up to +125°C

Applications

Multimedia applications
Switching regulators with low operating voltages
Integrated DC/DC-converter
Perfect suitable for switching regulators with extremely high efficiency
Plastic base: Because of the one piece construction these are more suitable for high vibration or shock applications

Products

All

7332

7345

1260

1050

Order Code	Datasheet	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	f_res (MHz)	Mount	Design Kit
784778010	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	3.5	7	36	183.7	SMT	784778
784777010	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	3.7	8	38.5	195	SMT	784778
784771010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	9	16.5	8.5	139.4	SMT	78477101
784778022	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	3.1	5	50	110.5	SMT	784778
784777022	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	2.7	5.25	61	95.2	SMT	784778
784771022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.2	7.2	10.5	12.5	82.7	SMT	–
784778033	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	2.65	3.7	65	71.3	SMT	784778
784777033	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	2.5	4.7	70	87.5	SMT	784778
784771033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	6.5	9	14.5	68.1	SMT	–
7847714033	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	7.11	9.4	15	29	SMT	78477101
784778047	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	2.4	3.1	79	52	SMT	784778
784777047	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	2.35	3.7	84	64.7	SMT	784778
784771047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	6.2	8	17.5	49.8	SMT	–
7847714047	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.7	6.81	8.2	17	25	SMT	–
784778068	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	2.3	2.5	94	40.7	SMT	784778
784777068	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	2.2	3.2	98	47.3	SMT	784778
784771068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.8	5.5	6	21.5	25.5	SMT	78477101
784778082	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	2.2	2.4	103	36.9	SMT	784778
784777082	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	2	2.8	117	36.7	SMT	784778
784771082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8.2	5.05	5.5	24	25.2	SMT	–
784778100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.85	2.2	126	34.1	SMT	784778
784777100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.9	2.6	126	32.5	SMT	784778
784771100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	5	5.25	26.5	22.3	SMT	78477101
7847714100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	5.12	5.6	32	16.75	SMT	78477101
784778220	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1.55	1.6	187	17.2	SMT	784778
784777220	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1.4	1.8	215	18.5	SMT	784778
784771220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	3.2	3.5	40	14.9	SMT	78477101
7847714220	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	3.13	3.7	75	9.6	SMT	78477101
784771330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	2.8	2.9	62.5	11.5	SMT	–
7847714330	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	33	2.92	3	95	8.4	SMT	78477101
784778470	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	1.1	1.05	348	13.5	SMT	784778
784777470	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	1.15	1.25	300	10	SMT	784778
784771470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	2.3	2.5	77	10.1	SMT	78477101
7847714470	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	47	2.26	2.45	148	6.4	SMT	78477101
784771680	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	1.8	2	138	8	SMT	–
7847714680	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	68	1.85	1.9	176.4	5.53	SMT	78477101
784778101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	0.72	0.75	720	9.7	SMT	784778
784777101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	0.72	0.8	470	7.5	SMT	784778
784771101	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	1.5	1.7	174	6.5	SMT	78477101
7847714101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	100	1.43	1.6	294	4.4	SMT	78477101
784778221	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	0.48	0.5	1620	6.1	SMT	784778
784777221	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	0.5	0.55	1135	3.9	SMT	784778
784771221	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	0.99	1.1	348	3.9	SMT	–
7847714221	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220	1.05	1.2	708	2.9	SMT	78477101
784771331	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	0.8	0.9	594	3.3	SMT	78477101
784777331	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	0.4	0.45	1872	4.2	SMT	–
7847714331	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP 3D Download_3D_WE-PDA-1050 (rev1).pdf \| 526 KB IGS Download_IGS_WE-PDA-1050 (rev1).igs \| 2 MB STP Download_STP_WE-PDA-1050 (rev1).stp \| 1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	330	0.9	1	900	2.4	SMT	–
784778471	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.3	0.35	3300	3.9	SMT	784778
784777471	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.35	0.38	2720	2.9	SMT	784778
784771471	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	470	0.65	0.75	706	2.9	SMT	–
784778102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7332_PDA (rev1).igs \| 3 MB STP WE-PDA_7332_PDA (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.23	0.25	7200	2.5	SMT	784778
784777102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_7345_PDA (rev1).igs \| 2.6 MB STP WE-PDA_7345_PDA (rev1).stp \| 984.7 KB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.25	0.28	5750	2	SMT	784778
784771102	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WE-PDA (rev23a).IntLib \| 1.4 MB ZUK Cadstar_WE-PDA (rev21a).zip \| 8.8 KB CDS Cadence_WE-PDA (rev23a).zip \| 7.6 MB EAG Eagle_WE-PDA (rev23a).lbr \| 72.8 KB CAD files ZIP IGS WE-PDA_1260_PDA (rev1).igs \| 5.1 MB STP WE-PDA_1260_PDA (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-PDA (rev23a).zip \| 16.5 KB SCS Spectre_WE-PDA (rev24a).mod \| 19.9 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000	0.48	0.53	1705	1.9	SMT	–

Order Code	Datasheet	Simulation
784778010	SPEC
784777010	SPEC
784771010	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784778022	SPEC
784777022	SPEC
784771022	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784778033	SPEC
784777033	SPEC
784771033	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714033	SPEC
784778047	SPEC
784777047	SPEC
784771047	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714047	SPEC
784778068	SPEC
784777068	SPEC
784771068	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784778082	SPEC
784777082	SPEC
784771082	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784778100	SPEC
784777100	SPEC
784771100	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714100	SPEC
784778220	SPEC
784777220	SPEC
784771220	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714220	SPEC
784771330	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714330	SPEC
784778470	SPEC
784777470	SPEC
784771470	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714470	SPEC
784771680	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714680	SPEC
784778101	SPEC
784777101	SPEC
784771101	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714101	SPEC
784778221	SPEC
784777221	SPEC
784771221	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7847714221	SPEC
784771331	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784777331	SPEC
7847714331	SPEC
784778471	SPEC
784777471	SPEC
784771471	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
784778102	SPEC
784777102	SPEC
784771102	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Simulation	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	f_res (MHz)	Mount	Design Kit	Samples

Simple but efficient

The WE-PDA is an automotive high performance inductor known for its reliability and consistency under various operating conditions. The manufacturing process is automated for the all the sizes.

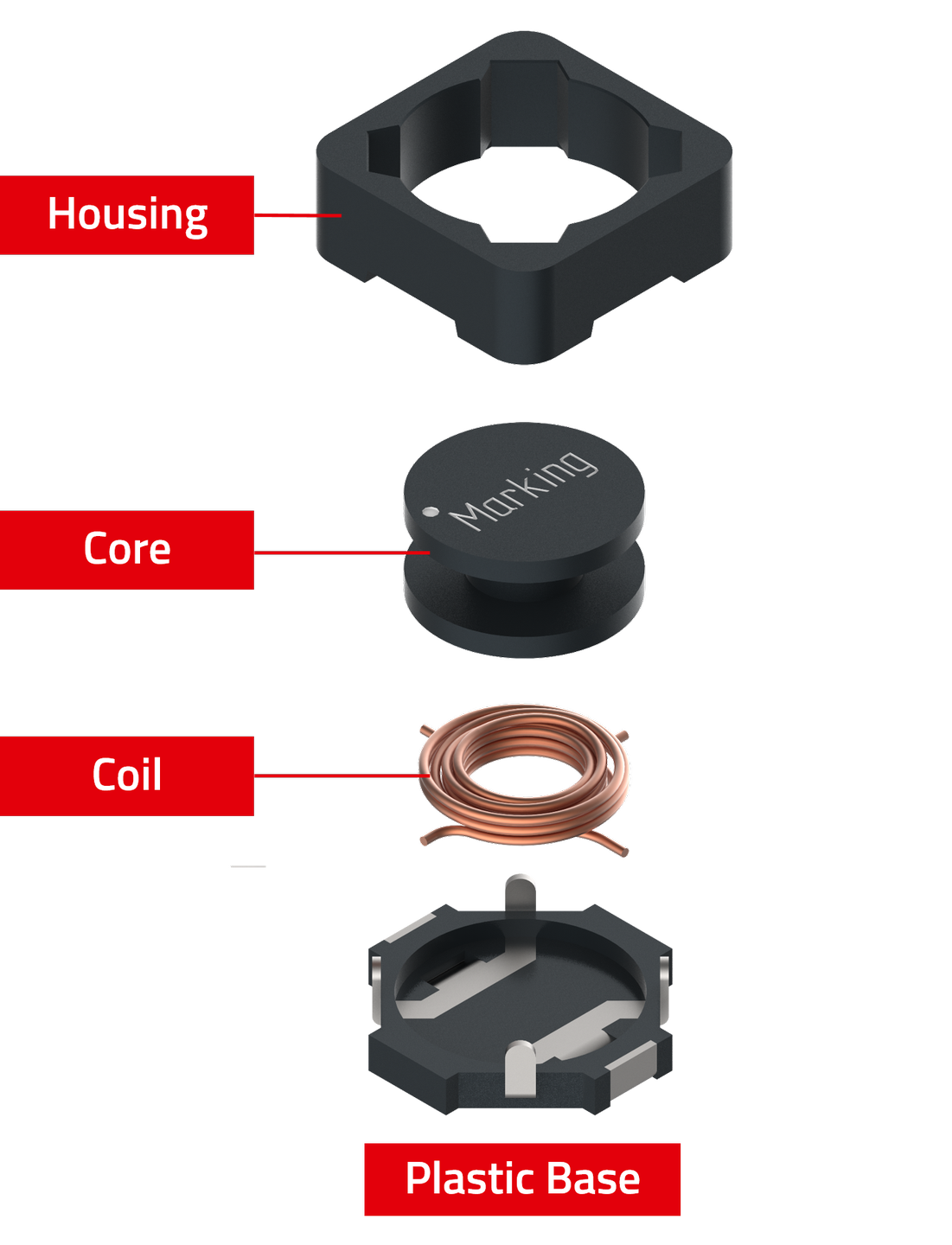

Four carefully selected components make sure that the power inductor meets the requirements to deliver high performance.The plastic base is different for each size and connects the component to the PCB to achieve mechanical stability. The windings are made of copper with very low RDC and RAC to ensure consistency and efficiency. The WE-PDA has a welding-controlled process, which is ideal for process stability.The core is the heart of the WE-PDA and is made of NiZn for a high dielectric strength and also available with MnZn material, enabling the inductor to provide high saturation currents and low core losses while an advanced shielding technology with an outside air gap not only reduces unwanted noise and electromagnetic interference but also avoids eddy current losses in the windings.

All the components and materials work together to ensure resistance against thermal aging for high reliability and long term usability.

Sizes

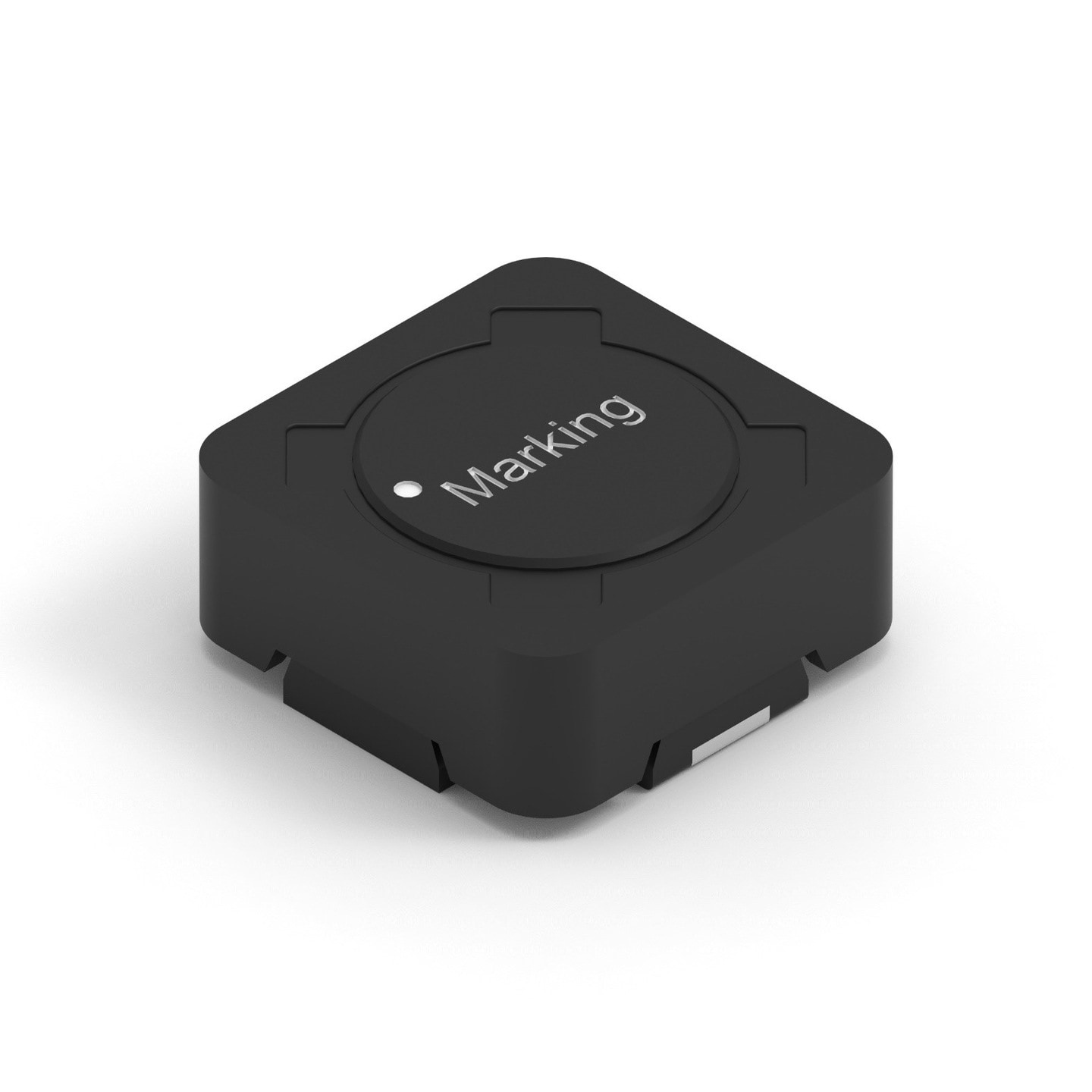

WE- PDA 7332, 7345

NiZn Core Material<br>AEC-Q200</br>-40 up to +125 °C — NiZn Core Material
AEC-Q200
-40 up to +125 °C

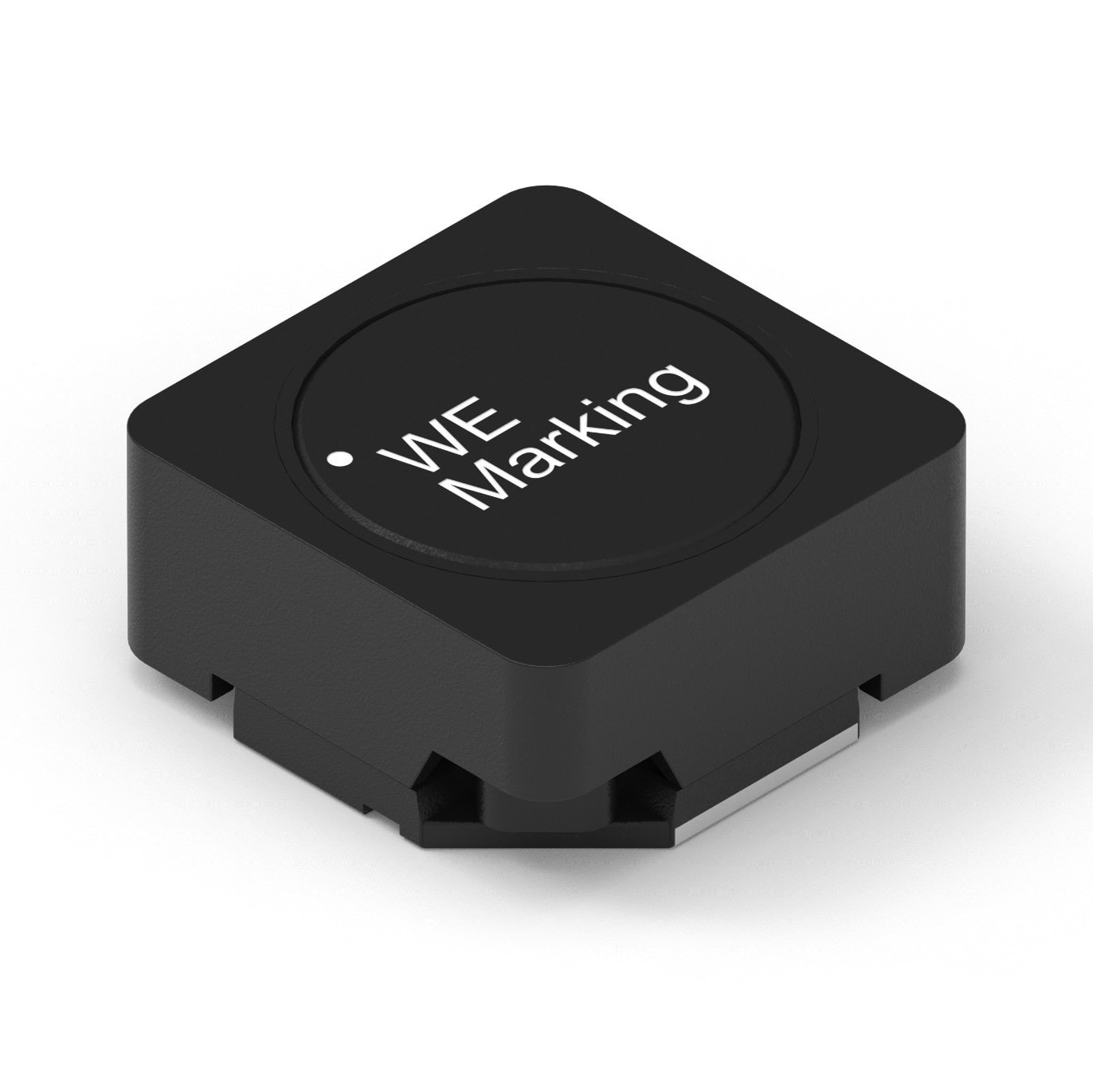

WE-PDA 1260

WE-PDA 1050

MnZn Core Material<br>AEC-Q200</br>-50 up to +150 °C — MnZn Core Material
AEC-Q200
-50 up to +150 °C

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Learn more
