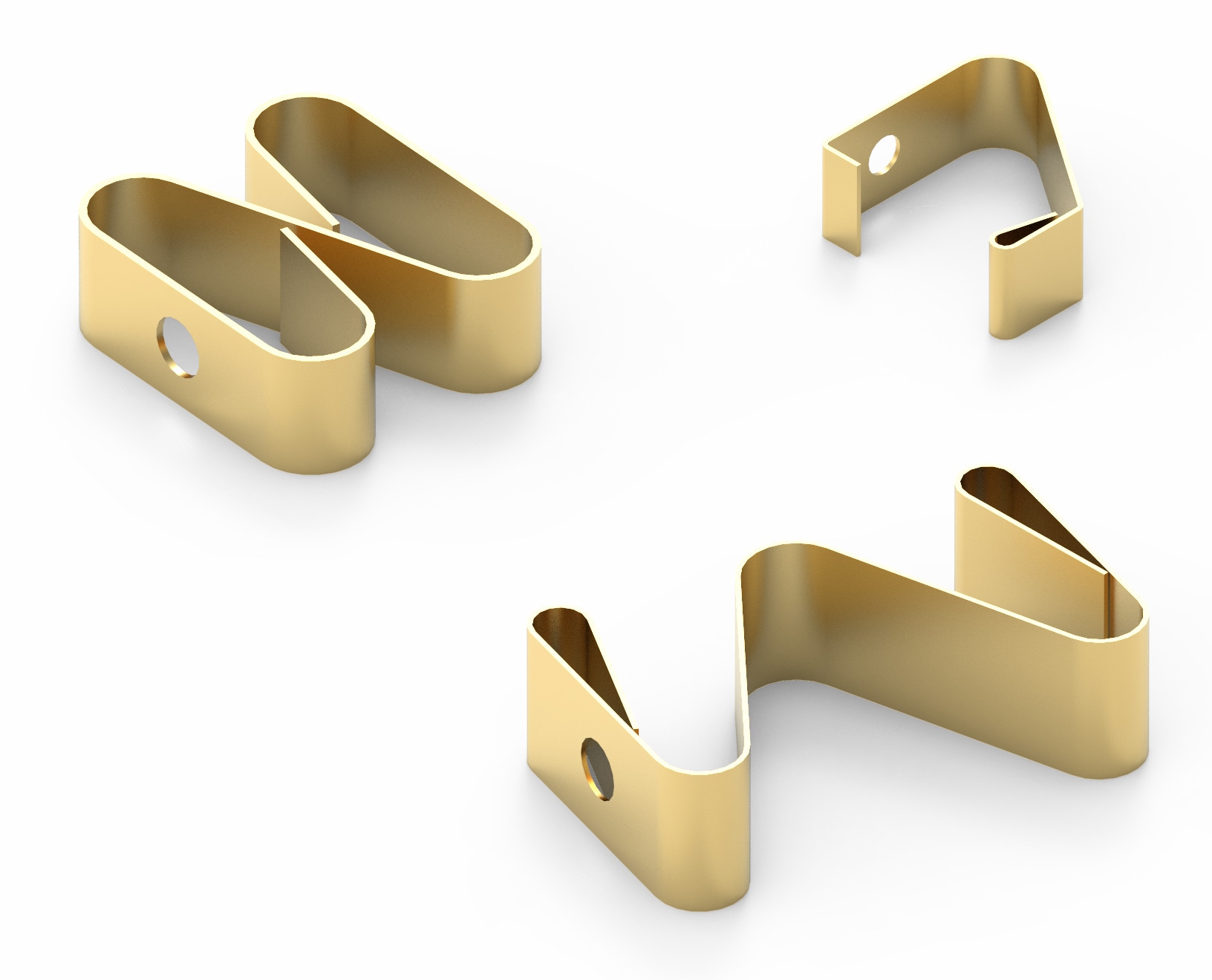

WE-SCFA Soldered Contact Finger Automotive

Characteristics

Suitable for pick & place
Material: copper-beryllium (CuBe) gold-plated (Au)
Different types and sizes available
Corrosion-resistant
Wear-resistant
High temperatures and compression have no influence on the excellent connection properties
Reliable solderability
Automotive approved

Applications

Contact PCBs to ground and housing
Grounding of cooling units for high frequencies
Connection of signal and power supply of two PCBs on track
Connection between PCBs and external elements

Products

Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	L (mm)	Recommended Working Height (mm)	Design Kit	Samples
78631271520	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631271520_3D (rev1).pdf \| 21.1 KB IGS Download_WE-SCFA_78631271520_IGS (rev1).igs \| 44.5 KB STP Download_WE-SCFA_78631271520_STP (rev1).stp \| 37.1 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	2	2.7	1.6 - 1.7	331003
78631271515	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631271515_3D (rev1).pdf \| 20.9 KB IGS Download_WE-SCFA_78631271515_IGS (rev1).igs \| 56.3 KB STP Download_WE-SCFA_78631271515_STP (rev1).stp \| 48.4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	1.5	3.2	1 - 1.2	331003
78631452048	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631452048_3D (rev1).pdf \| 25 KB IGS Download_WE-SCFA_78631452048_IGS (rev1).igs \| 183.3 KB STP Download_WE-SCFA_78631452048_STP (rev1).stp \| 31.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	4.8	4.6	4 - 4.5	331003
78631472057	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631472057_3D (rev1).pdf \| 20.9 KB IGS Download_WE-SCFA_78631472057_IGS (rev1).igs \| 140.2 KB STP Download_WE-SCFA_78631472057_STP (rev1).stp \| 26.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5.7	4.7	4.6 - 5.4	331003
78631302025	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631302025_3D (rev1).pdf \| 25.7 KB IGS Download_WE-SCFA_78631302025_IGS (rev1).igs \| 157.6 KB STP Download_WE-SCFA_78631302025_STP (rev1).stp \| 26.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.5	3	2 - 2.2	331003
78631452070	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631452070_3D (rev1).pdf \| 37.5 KB IGS Download_WE-SCFA_78631452070_IGS (rev1).igs \| 106.8 KB STP Download_WE-SCFA_78631452070_STP (rev1).stp \| 84.1 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	7	4.5	6 - 6.7	331003
78631602040	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631602040_3D (rev1).pdf \| 23.9 KB IGS Download_WE-SCFA_78631602040_IGS (rev1).igs \| 64 KB STP Download_WE-SCFA_78631602040_STP (rev1).stp \| 49.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	4	6	5 - 5.7	331003
78631402053	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631402053_3D (rev1).pdf \| 25.3 KB IGS Download_WE-SCFA_78631402053_IGS (rev1).igs \| 191.3 KB STP Download_WE-SCFA_78631402053_STP (rev1).stp \| 32.1 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5.3	4.1	4.4 - 5	331003
78631302030	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631302030_3D (rev1).pdf \| 33.8 KB IGS Download_WE-SCFA_78631302030_IGS (rev1).igs \| 213.5 KB STP Download_WE-SCFA_78631302030_STP (rev1).stp \| 31.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3	3.15	2.5 - 2.7	331003
78631302035	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631302035_3D (rev1).pdf \| 35.7 KB IGS Download_WE-SCFA_78631302035_IGS (rev1).igs \| 190.6 KB STP Download_WE-SCFA_78631302035_STP (rev1).stp \| 28 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3.5	3	3 - 3.2	331003
78631702562	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631702562_3D (rev1).pdf \| 34 KB IGS Download_WE-SCFA_78631702562_IGS (rev1).igs \| 217.8 KB STP Download_WE-SCFA_78631702562_STP (rev1).stp \| 32.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	6.2	7.15	5 - 5.9	331003
78631702513	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631702513_3D (rev1).pdf \| 37.3 KB IGS Download_WE-SCFA_78631702513_IGS (rev1).igs \| 301.9 KB STP Download_WE-SCFA_78631702513_STP (rev1).stp \| 55.5 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	13	7	10 - 12.5	331003
78631452535	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631452535_3D (rev1).pdf \| 42.2 KB IGS Download_WE-SCFA_78631452535_IGS (rev1).igs \| 411.4 KB STP Download_WE-SCFA_78631452535_STP (rev1).stp \| 99.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	3.5	4.5	3 - 3.2	–
78631352540	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP IGS Download_WE-SCFA_78631352540_IGS (rev1).igs \| 366.4 KB STP Download_WE-SCFA_78631352540_STP (rev1).stp \| 101.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.5	4	3.5	3.4 - 3.7	331003
78631603010	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631603010_3D (rev1).pdf \| 33.1 KB IGS Download_WE-SCFA_78631603010_IGS (rev1).igs \| 240 KB STP Download_WE-SCFA_78631603010_STP (rev1).stp \| 37.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	10	6	8.3 - 9.7	331003
78631503040	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631503040_3D (rev1).pdf \| 36.8 KB IGS Download_WE-SCFA_78631503040_IGS (rev1).igs \| 374.4 KB STP Download_WE-SCFA_78631503040_STP (rev1).stp \| 69.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	4	5	2.5 - 3.7	331003
78631603012	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-SCFA (rev22a).IntLib \| 214 KB ZUK Cadstar_WE-SCFA (rev20a).zip \| 8.4 KB CDS Cadence_WE-SCFA (rev20a).zip \| 1 MB EAG Eagle_WE-SCFA (rev20a).lbr \| 46.6 KB CAD files ZIP 3D Download_WE-SCFA_78631603012_3D (rev1).pdf \| 33.4 KB IGS Download_WE-SCFA_78631603012_IGS (rev1).igs \| 246.8 KB STP Download_WE-SCFA_78631603012_STP (rev1).stp \| 72.3 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	12	6	8 - 11.5	–

Order Code	Datasheet
78631271520	SPEC
78631271515	SPEC
78631452048	SPEC
78631472057	SPEC
78631302025	SPEC
78631452070	SPEC
78631602040	SPEC
78631402053	SPEC
78631302030	SPEC
78631302035	SPEC
78631702562	SPEC
78631702513	SPEC
78631452535	SPEC
78631352540	SPEC
78631603010	SPEC
78631503040	SPEC
78631603012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	L (mm)	Recommended Working Height (mm)	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-SCFA SMT EMI Contact Finger
