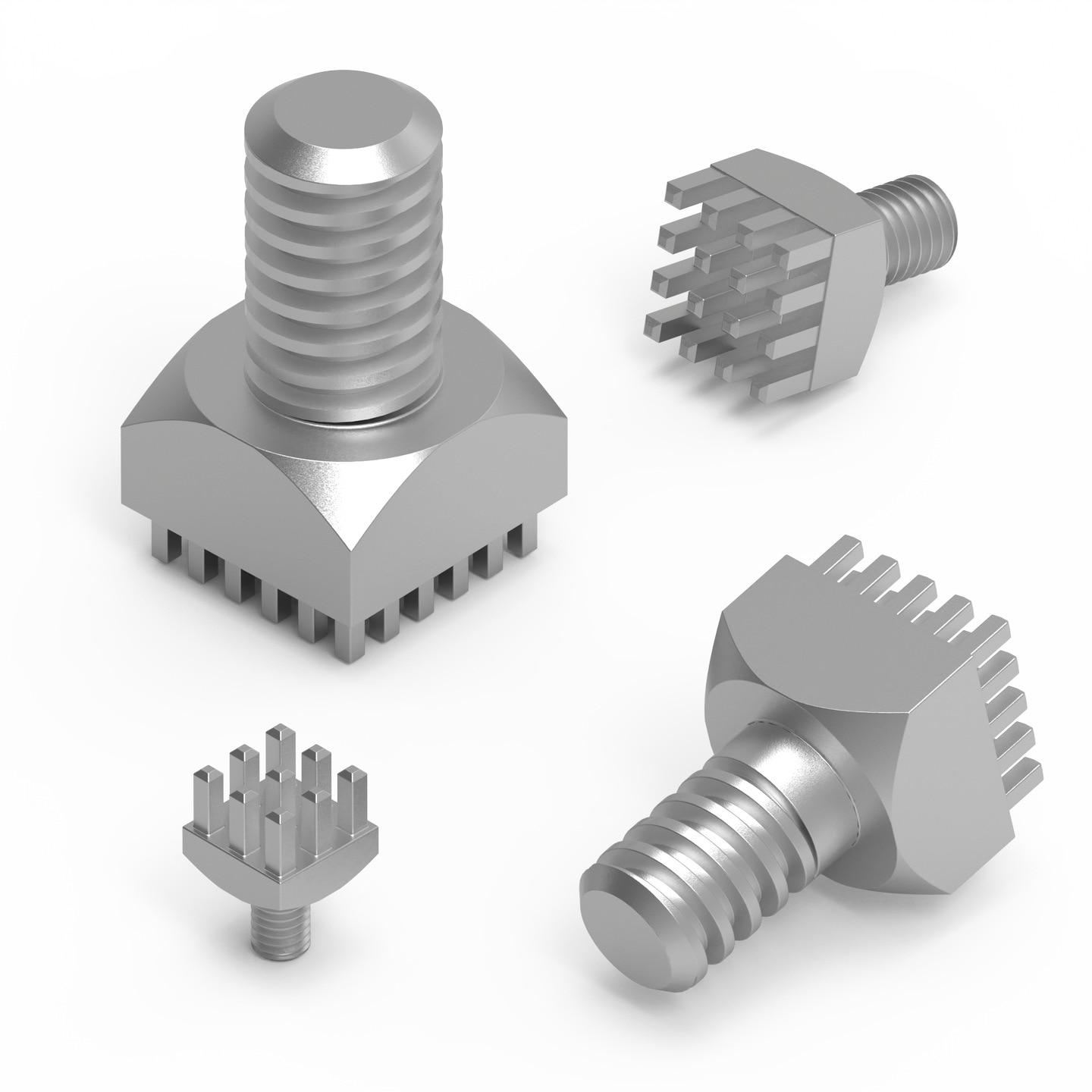

REDCUBE PRESS-FIT with external thread

Applications

High current Wire-to-Board connections up to 500 A
Mounting of copper bars on PCBs
Installation of laminated fuses
Suitable for rough environmental conditions

Application Notes

Press-Fit Technology
PDF

Products

Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	I_R (A)	T_o	T_l (mm)	Pins (Value)	Design Kit	Samples
7461094	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-SHFU (rev22b).IntLib \| 351.5 KB CDS Cadence_WP-SHFU (rev22a).zip \| 2 MB EAG Eagle_WP-SHFU (rev22a).lbr \| 63.1 KB CAD files ZIP STP 7461094 (rev1).stp \| 190.9 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	7.5	130	M3	5	9	–
7461096	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-SHFU (rev22b).IntLib \| 351.5 KB CDS Cadence_WP-SHFU (rev22a).zip \| 2 MB EAG Eagle_WP-SHFU (rev22a).lbr \| 63.1 KB CAD files ZIP STP 7461096 (rev1).stp \| 190 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	9	130	M4	6	9	746701
7461001	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-SHFU (rev22b).IntLib \| 351.5 KB CDS Cadence_WP-SHFU (rev22a).zip \| 2 MB EAG Eagle_WP-SHFU (rev22a).lbr \| 63.1 KB CAD files ZIP STP 7461001 (rev1).stp \| 193.5 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	12	130	M5	8	9	–
7461383	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-SHFU (rev22b).IntLib \| 351.5 KB CDS Cadence_WP-SHFU (rev22a).zip \| 2 MB EAG Eagle_WP-SHFU (rev22a).lbr \| 63.1 KB CAD files ZIP STP 7461383 (rev1).stp \| 317 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	12.5	180	M5	8	16	–
7461098	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WP-SHFU (rev22b).IntLib \| 351.5 KB CDS Cadence_WP-SHFU (rev22a).zip \| 2 MB EAG Eagle_WP-SHFU (rev22a).lbr \| 63.1 KB CAD files ZIP 3D 3D_WP-SHFU_7461098 (rev1).pdf \| 80.6 KB IGS IGS_WP-SHFU_7461098 (rev1).igs \| 1.2 MB STP 7461098 (rev1).stp \| 333 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	15.5	250	M6	10	25	746701
7460719	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WP-SHFU (rev22b).IntLib \| 351.5 KB CDS Cadence_WP-SHFU (rev22a).zip \| 2 MB EAG Eagle_WP-SHFU (rev22a).lbr \| 63.1 KB CAD files ZIP 3D 3D_7460719 (rev1).pdf \| 84.5 KB IGS IGS_7460719 (rev1).igs \| 1.2 MB STP 7460719 (rev1).stp \| 334.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	13	20.5	250	M8	13	25	–
7461100	SPEC	4 files EDA models: Components ZIP ALT Altium_WP-SHFU (rev22b).IntLib \| 351.5 KB CDS Cadence_WP-SHFU (rev22a).zip \| 2 MB EAG Eagle_WP-SHFU (rev22a).lbr \| 63.1 KB CAD files ZIP STP 7461100 (rev1).stp \| 681.8 KB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	24	350	M10	16	36	–

Order Code	Datasheet
7461094	SPEC
7461096	SPEC
7461001	SPEC
7461383	SPEC
7461098	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7460719	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7461100	SPEC

Samples

Order Code	Datasheet	Downloads	Status	W (mm)	H (mm)	I_R (A)	T_o	T_l (mm)	Pins (Value)	Design Kit	Samples

Mates with

WA-CLUG Tubular Cable Lugs

Assortments

Articles from this product series can be found in the following assortments:

Design Kit REDCUBE
